Audio Unit Connector Replacement

When replacing an audio unit connector, match the wires to the cavities as listed in the following table. Cavities 11, 12, 13 and 14 of the connector A are used for the navigation system or onstar system.

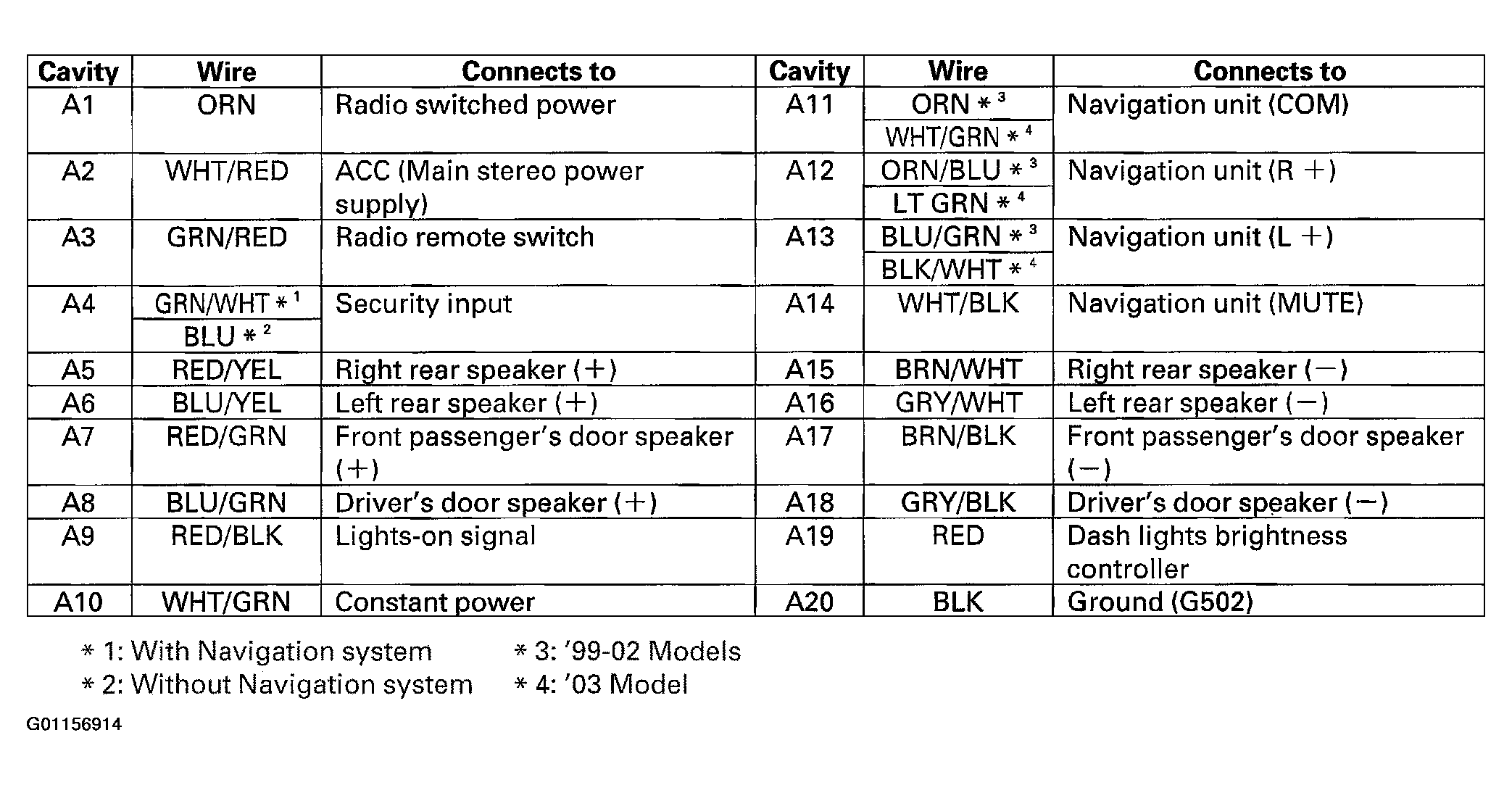

Fig 1: Locating & Identifying Audio Unit Connector Terminals Table (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

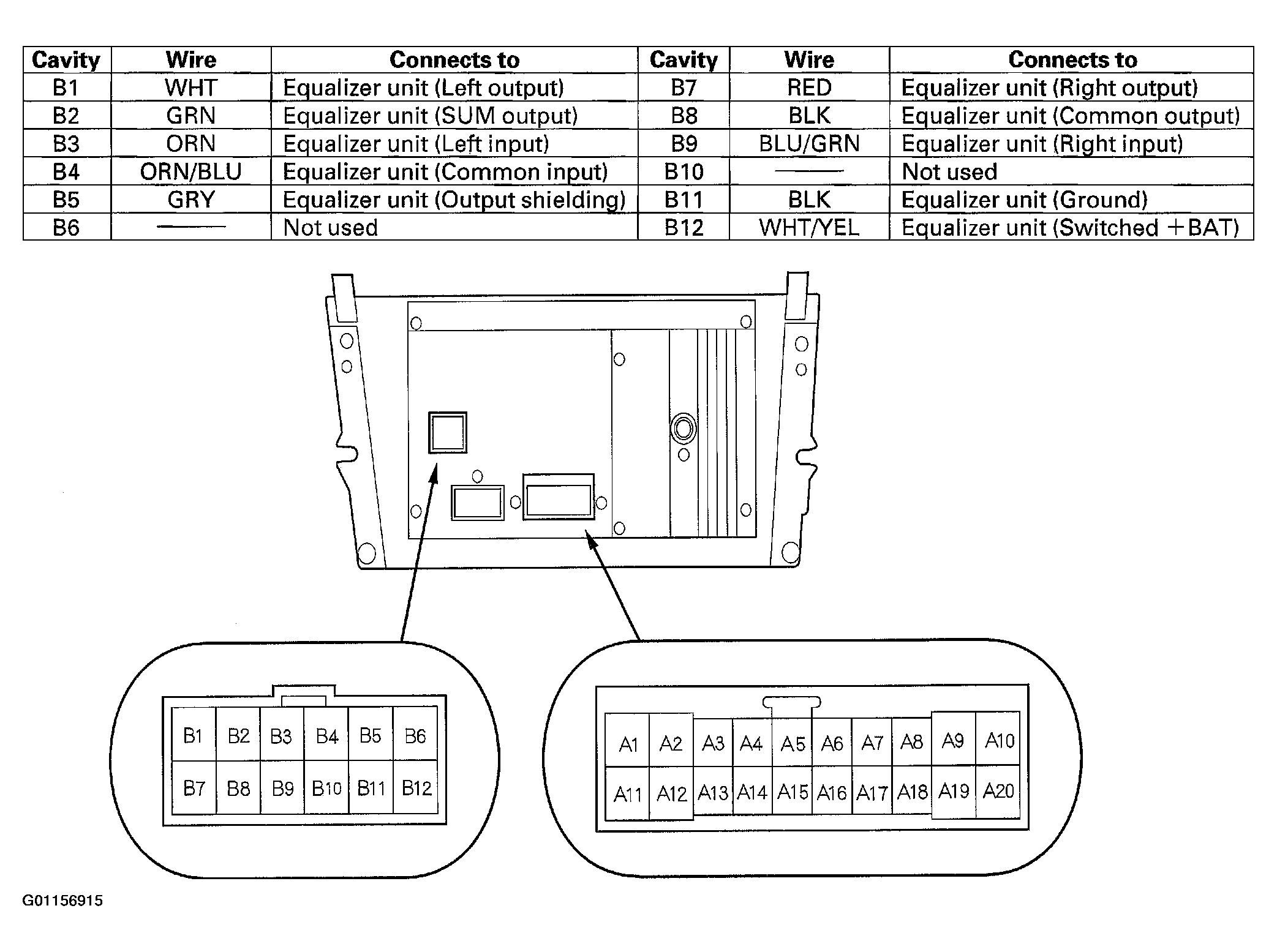

Fig 2: Locating & Identifying Audio Unit Connector Terminals Table (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
