Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 2 .

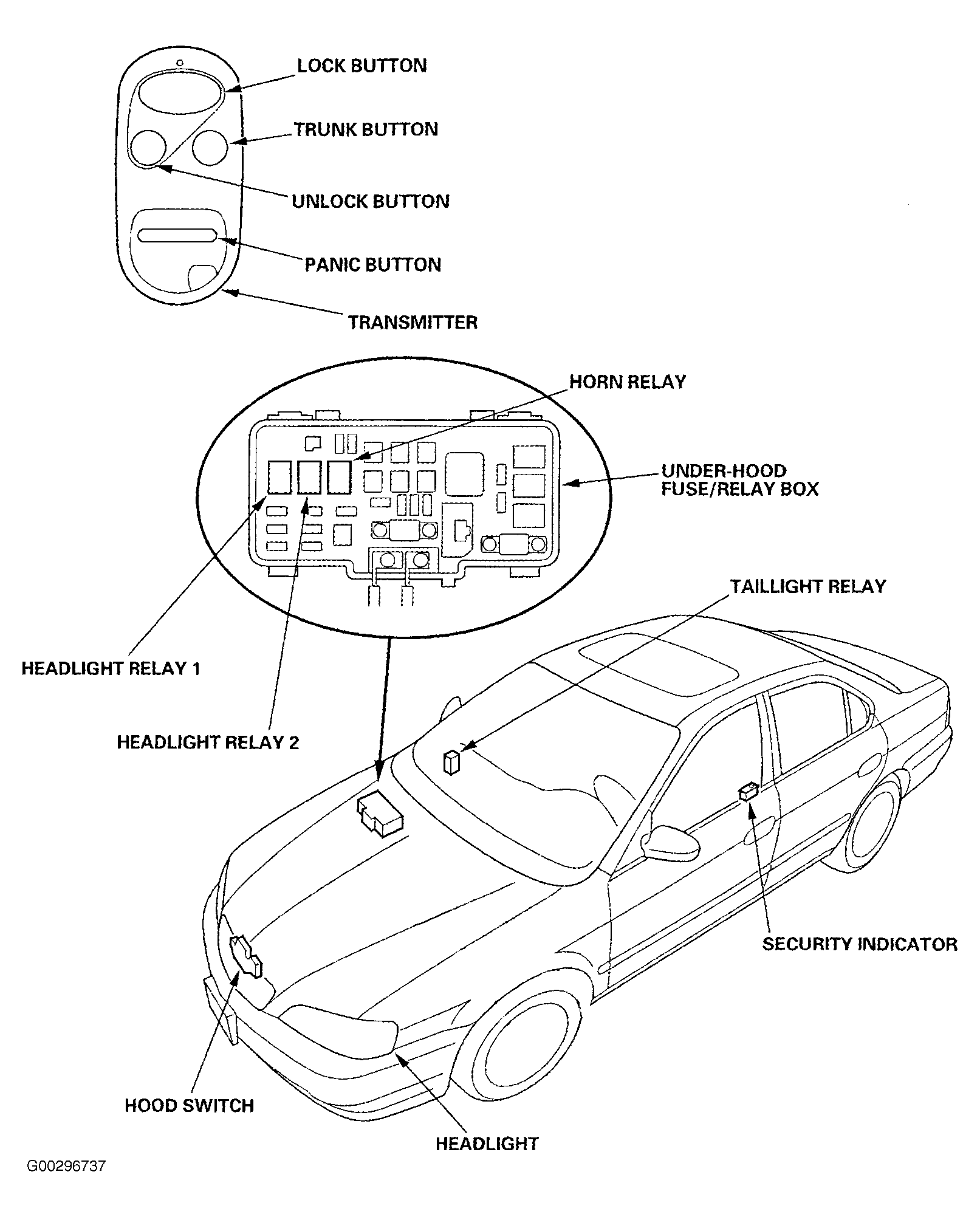

Fig 1: Locating Anti-Theft Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

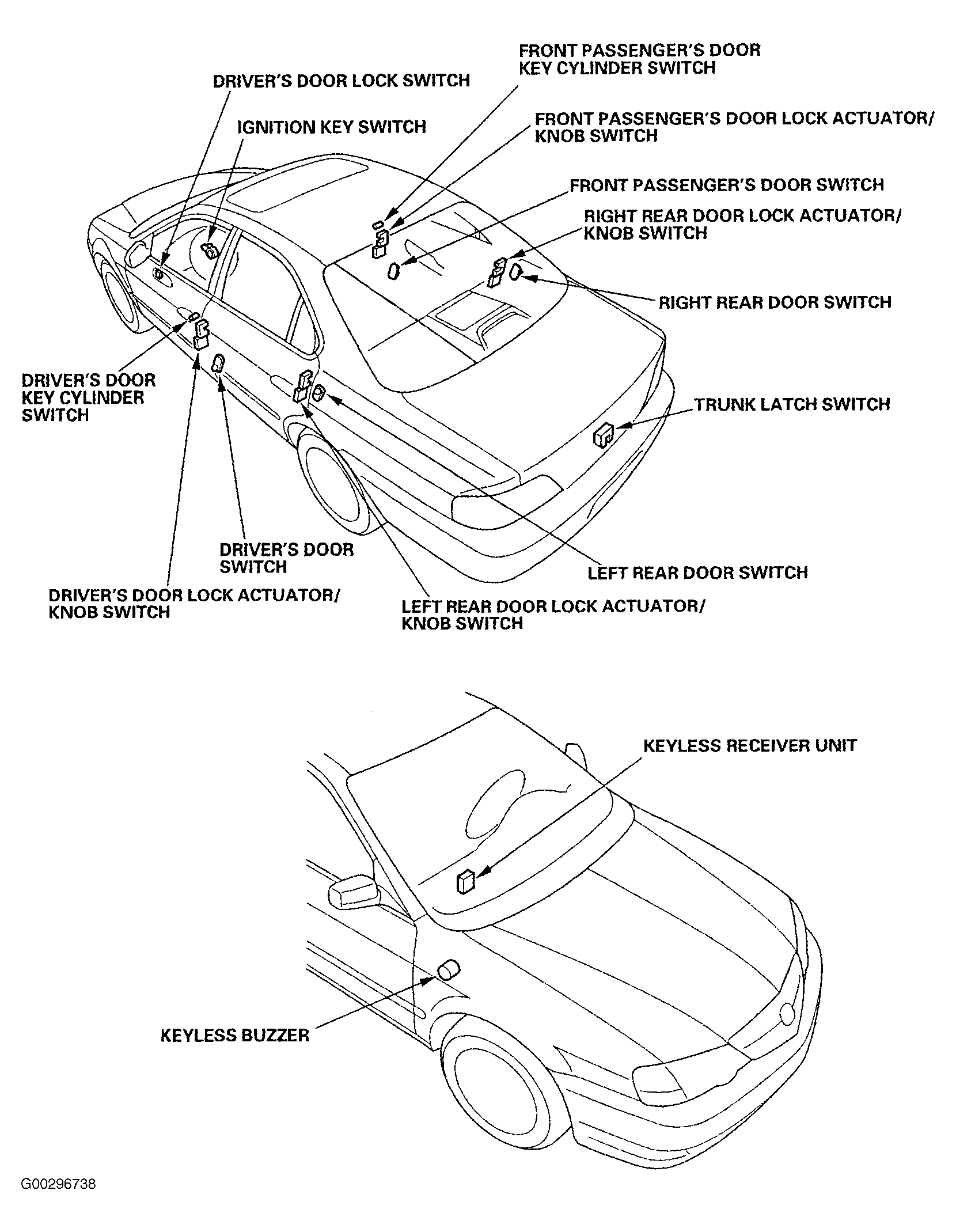

Fig 2: Locating Anti-Theft Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
