Acura
›
2003
›
3.2TL Base
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Vehicle Stability Assistance System
›
System Description
›
VSA Control Unit Inputs and Outputs
›
Connector A (22P)
Connector A (22P)
Fig 1: VSA Control Unit Connector A (22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

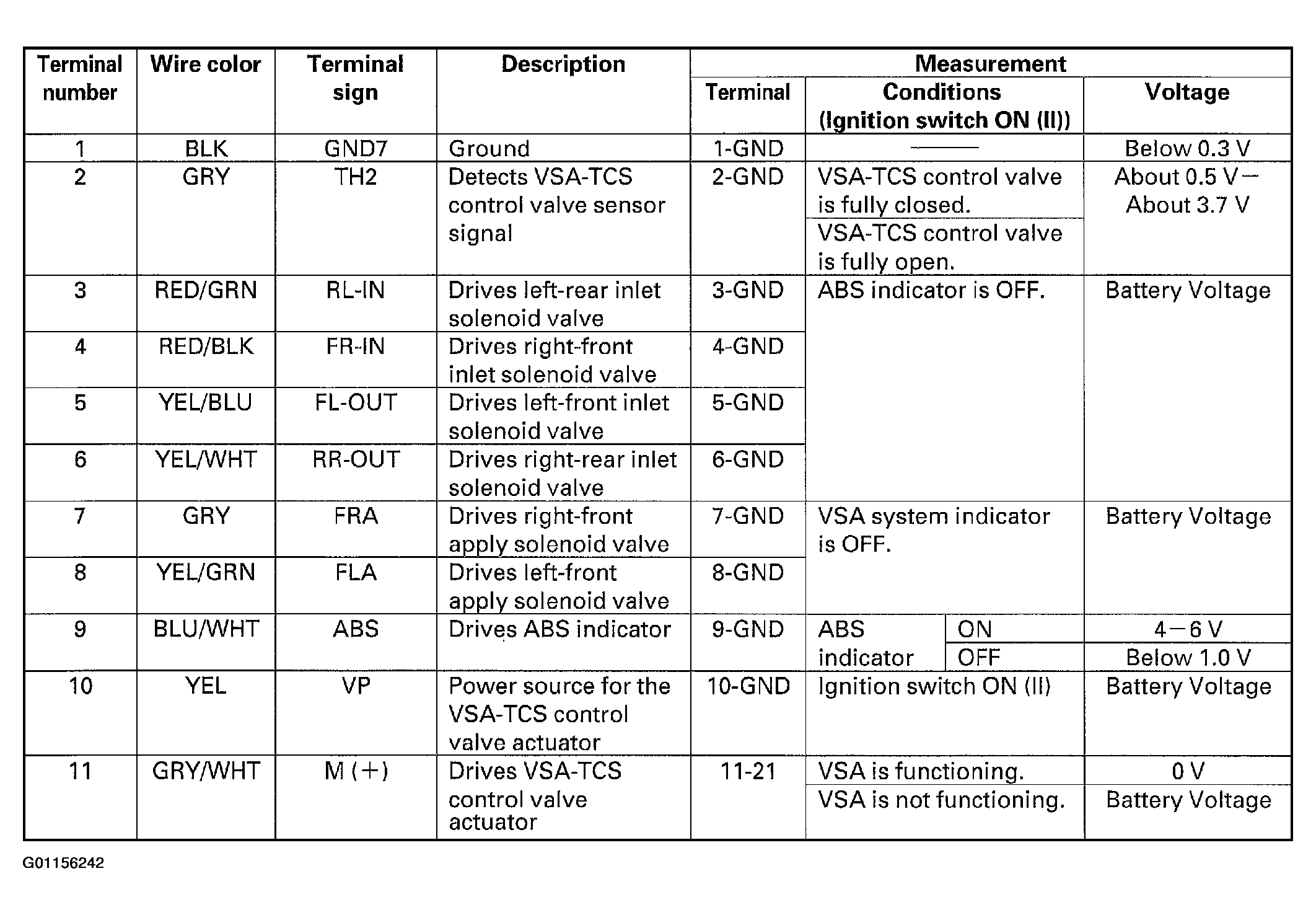

Fig 2: VSA Control Unit Inputs & Outputs For Connector A Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

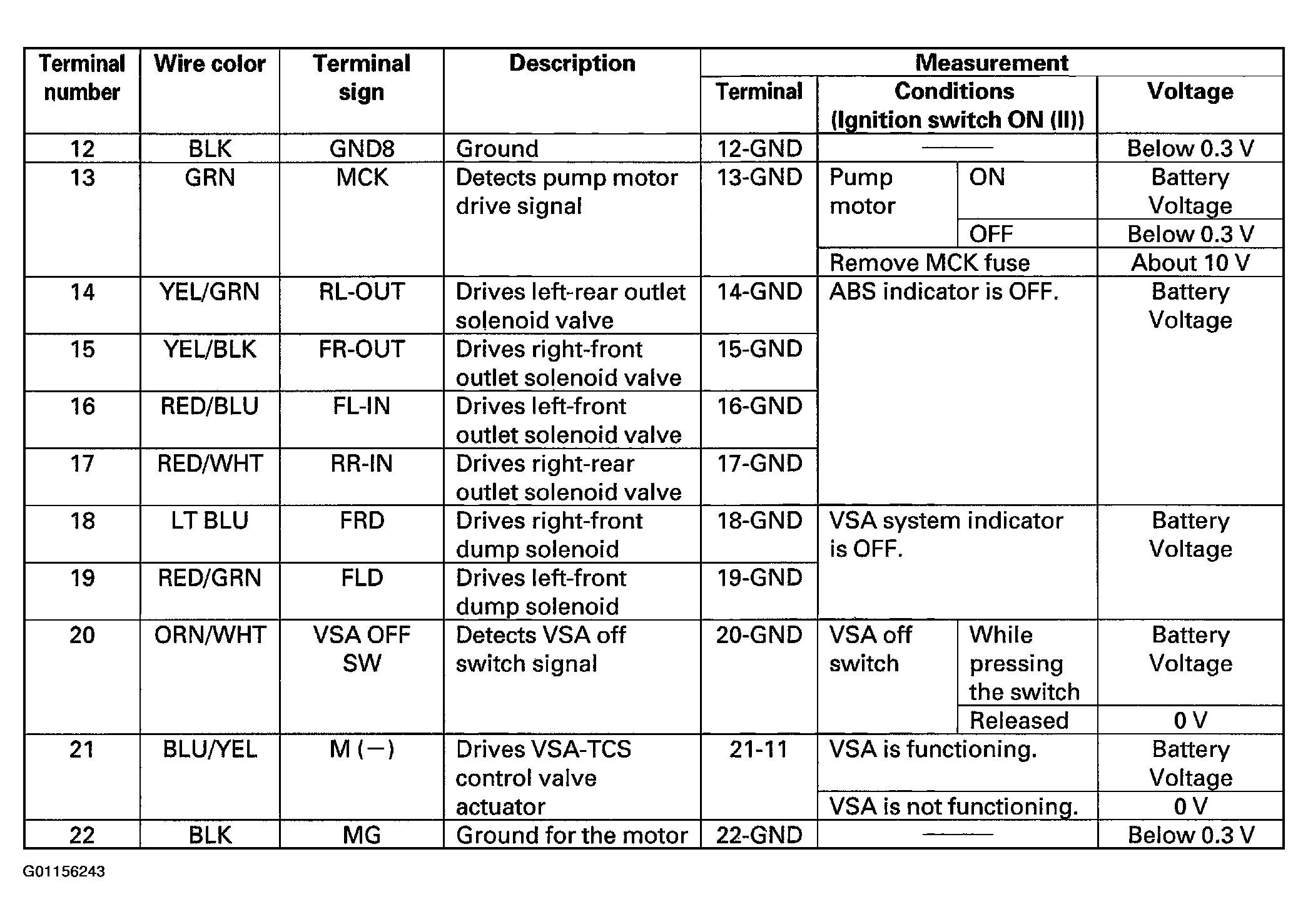

Fig 3: VSA Control Unit Inputs & Outputs For Connector A Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
