Vehicle Stability Assistance System
›
System Description
›
VSA Control Unit Inputs and Outputs
›
Connector B (16P)
Connector B (16P)
Fig 1: VSA Control Unit Connector B (16P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

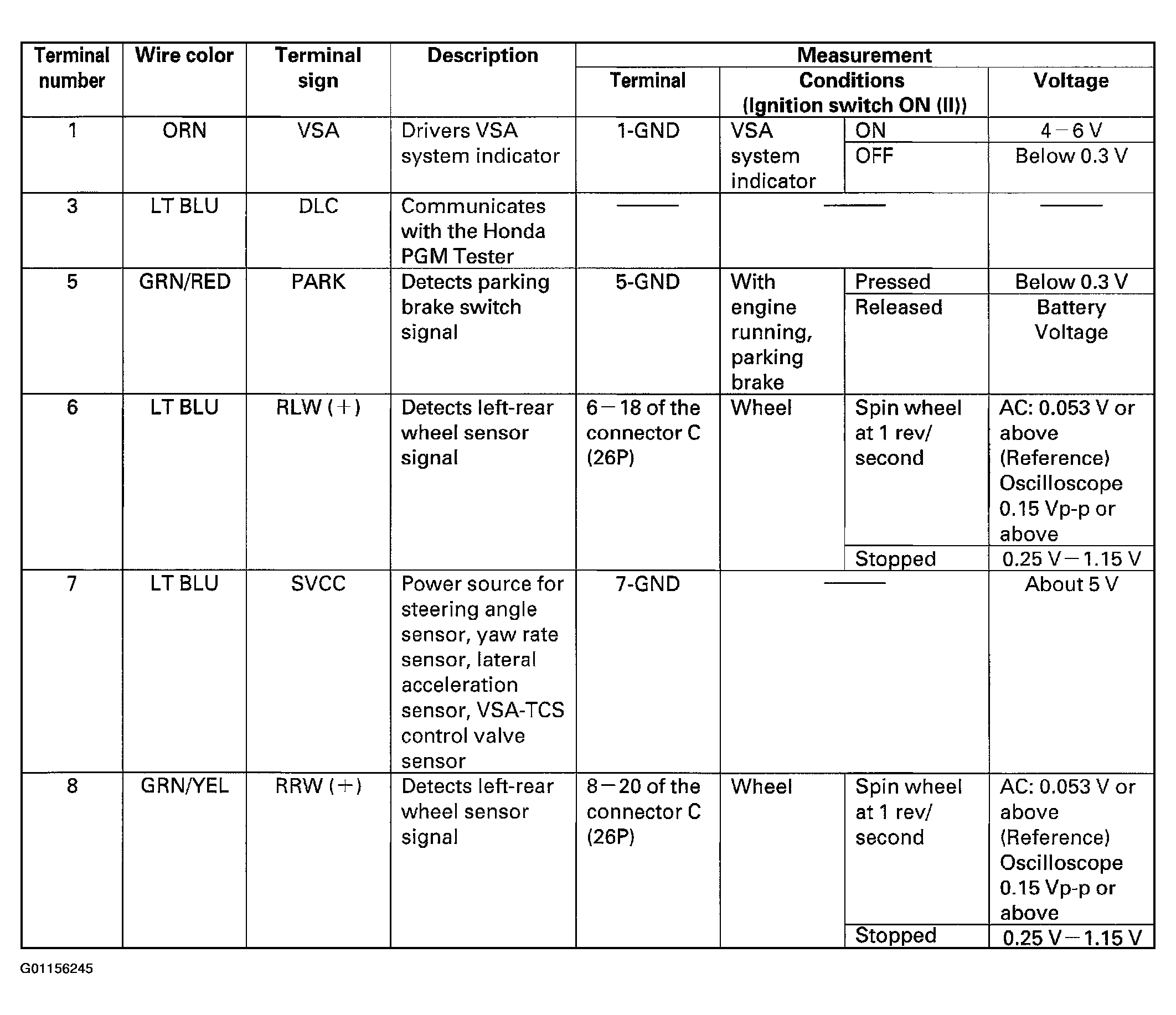

Fig 2: VSA Control Unit Inputs & Outputs For Connector B Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

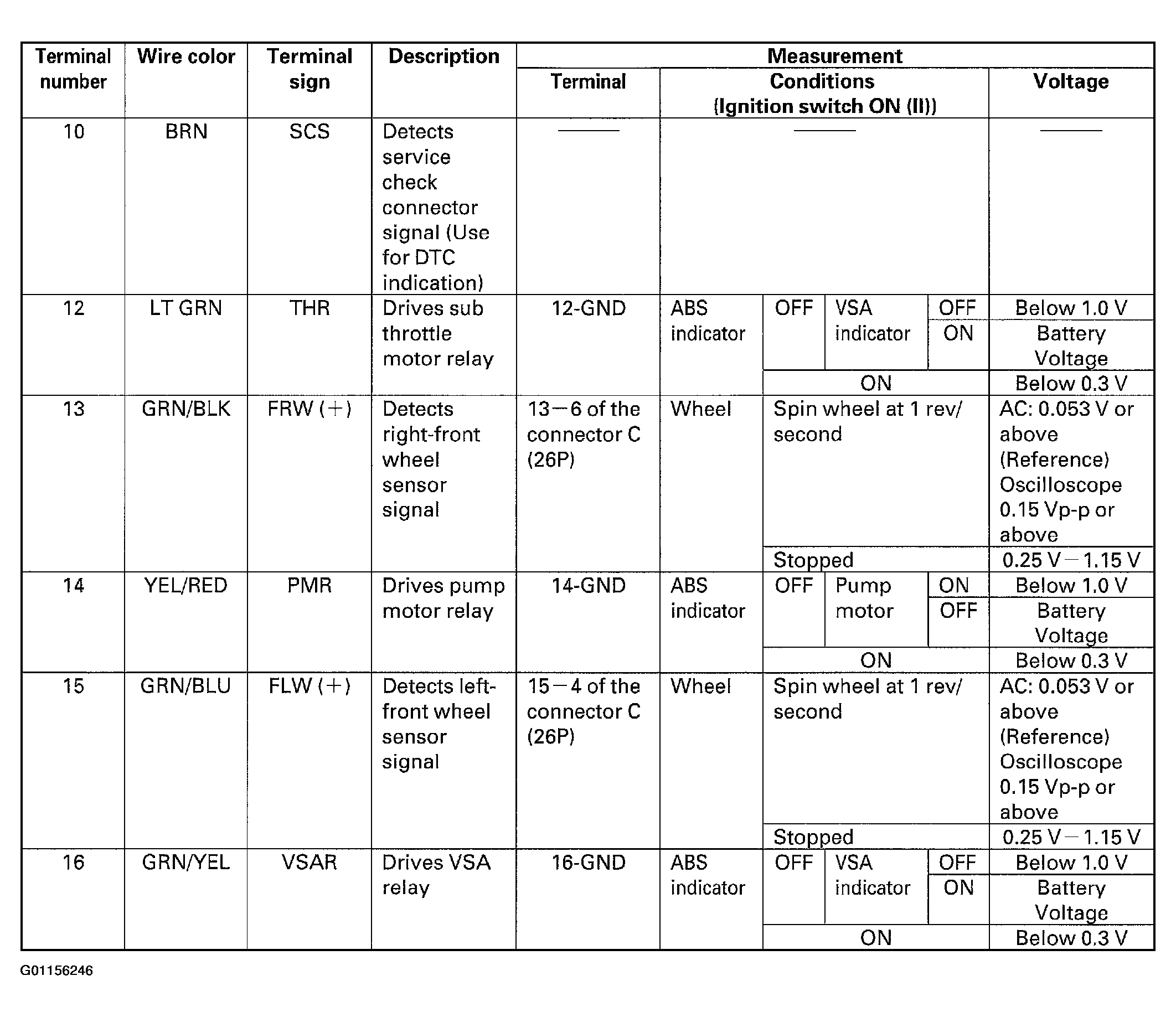

Fig 3: VSA Control Unit Inputs & Outputs For Connector B Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
