SRS Unit Connector End View
SRS Unit Connector End View

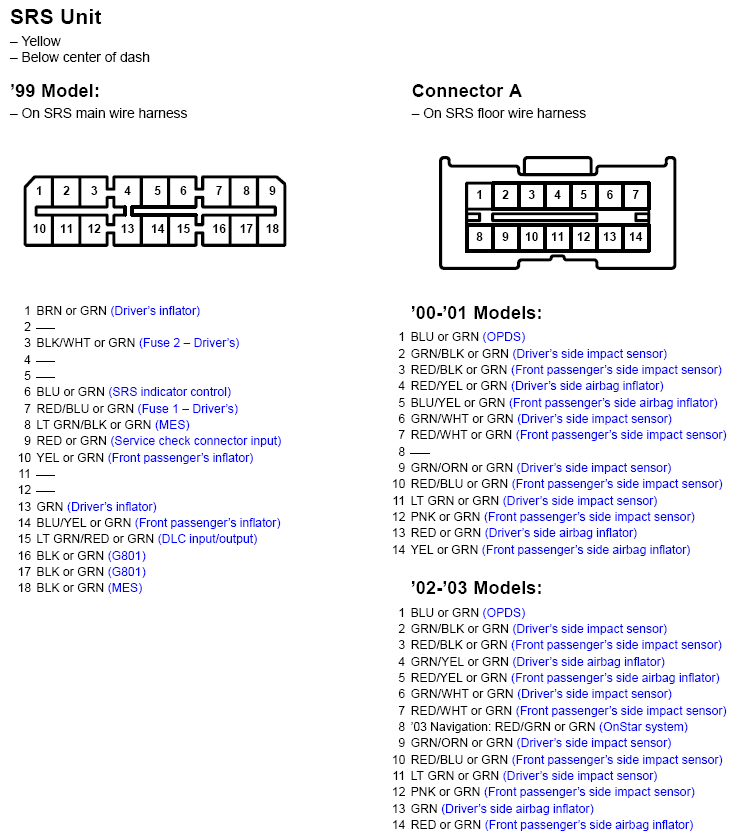

Fig 1: SRS Unit Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

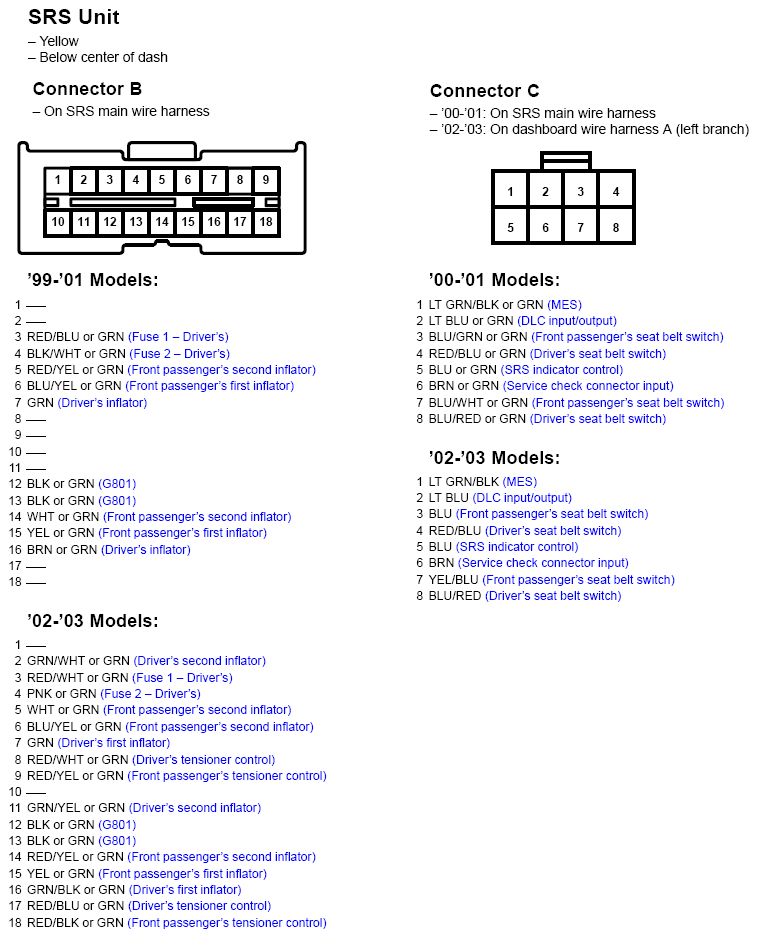

Fig 2: SRS Unit Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
