Driver's Under-Dash Fuse/Relay Box

NOTE: Driver's under-dash fuse/relay box is located at the left kick panel. See Fig 1 .

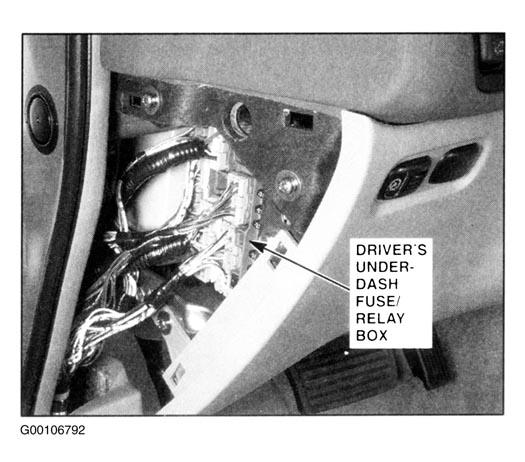

Fig 1: Locating Driver's Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

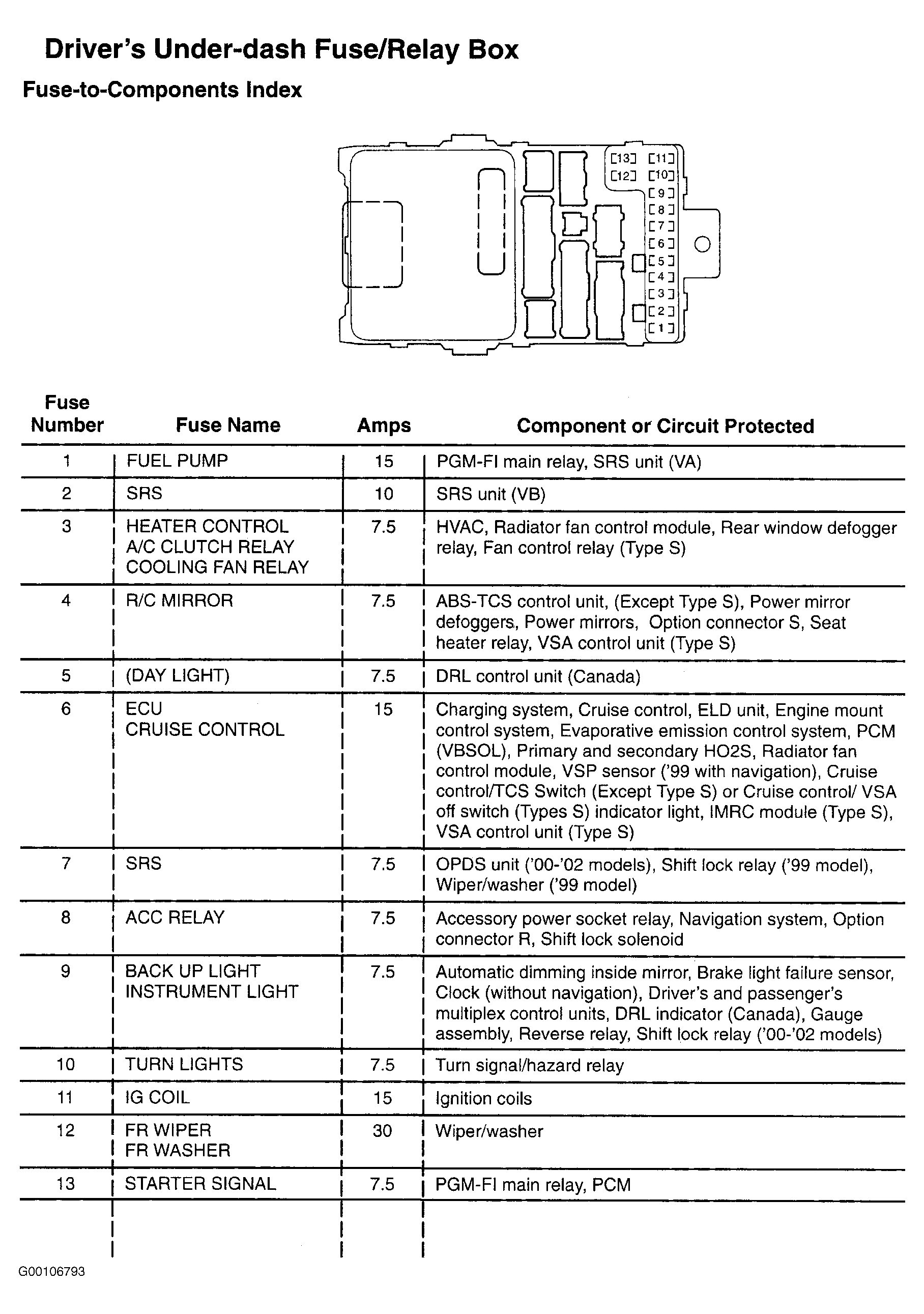

Fig 2: Identifying Driver's Under-Dash Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
