Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in right rear corner of engine compartment. See Fig 1 .

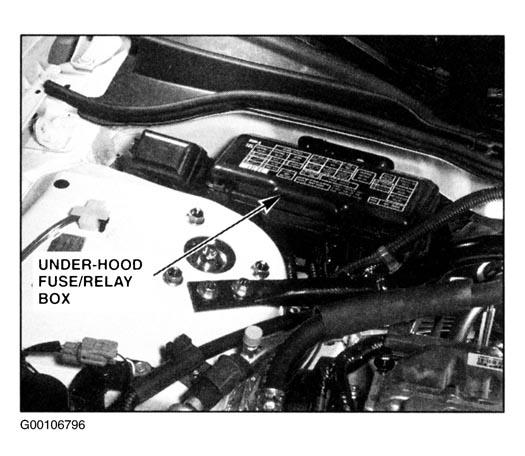

Fig 1: Locating Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

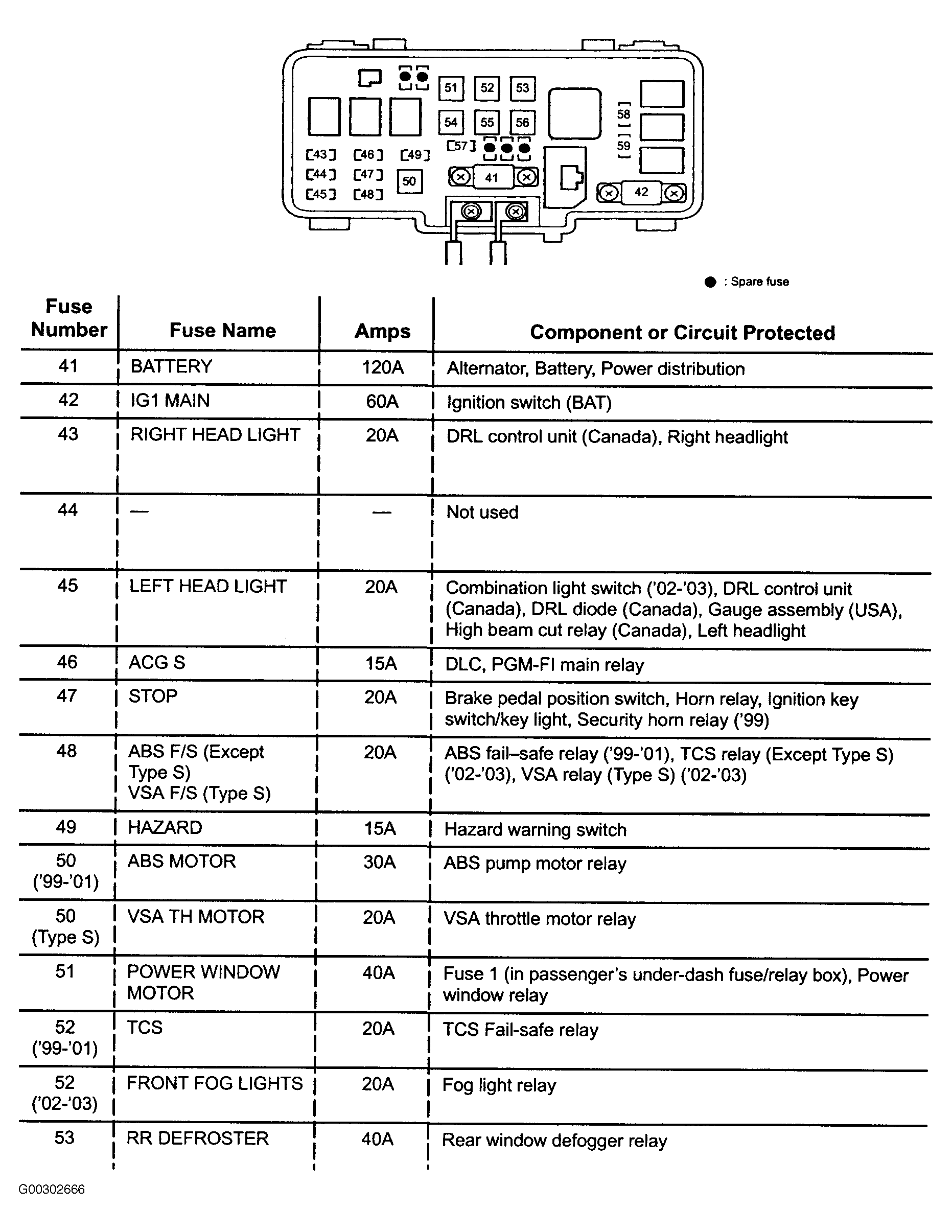

Fig 2: Identifying Under-Hood Fuse/Relay Box Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

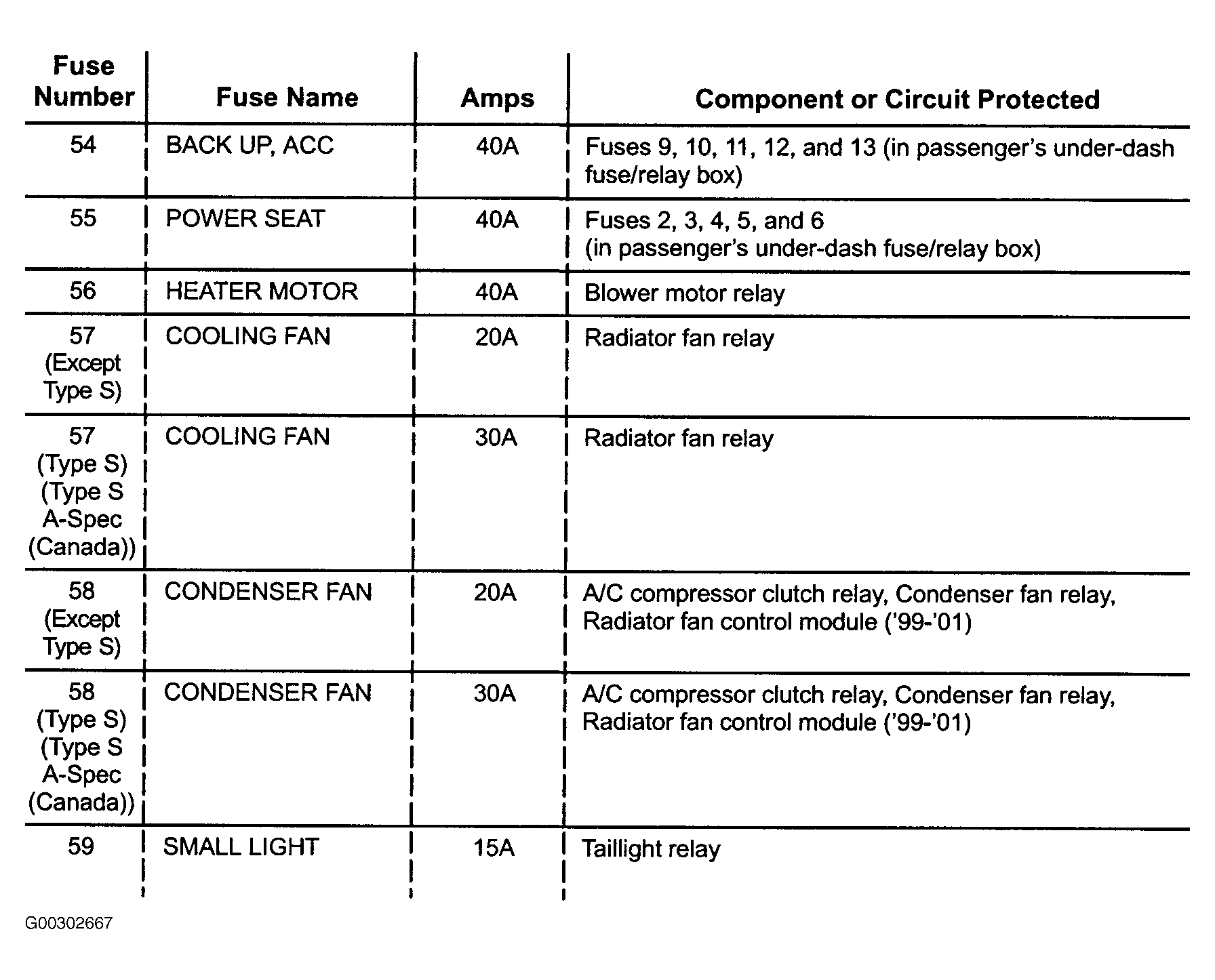

Fig 3: Identifying Under-Hood Fuse/Relay Box Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
