Controller Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover .
  2. Disconnect the 6P connector from the controller.

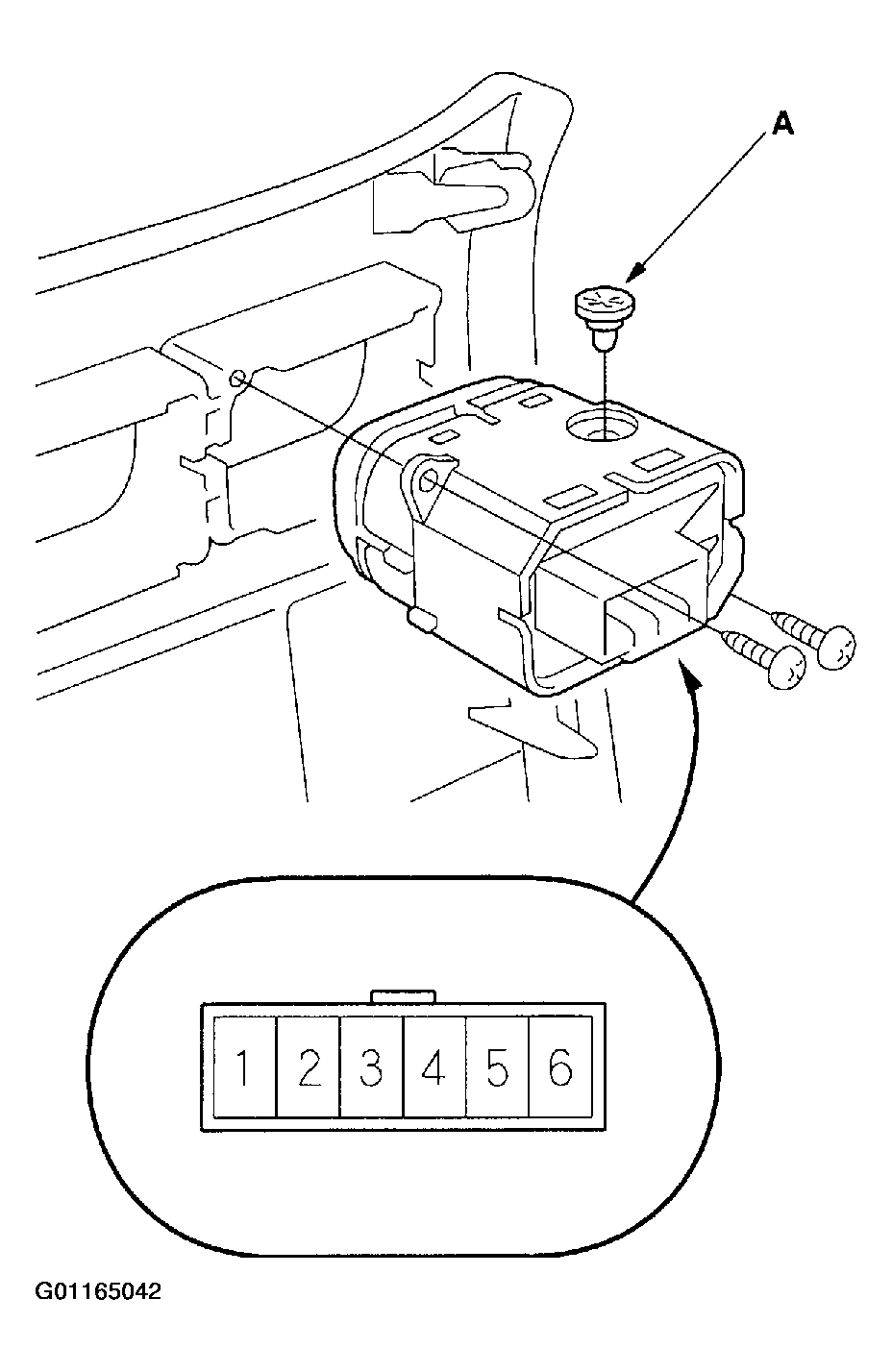

    Fig 1: Disconnecting The Connector From The Controller & Identifying Terminals
    G01165042Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure resistance between the No. 4 and No. 5 terminals while rotating the adjusting dial. Resistance should vary from 0 to 20K ohms as the dial is rotated.
  4. If necessary, check the bulb (A).
