Component Location Index

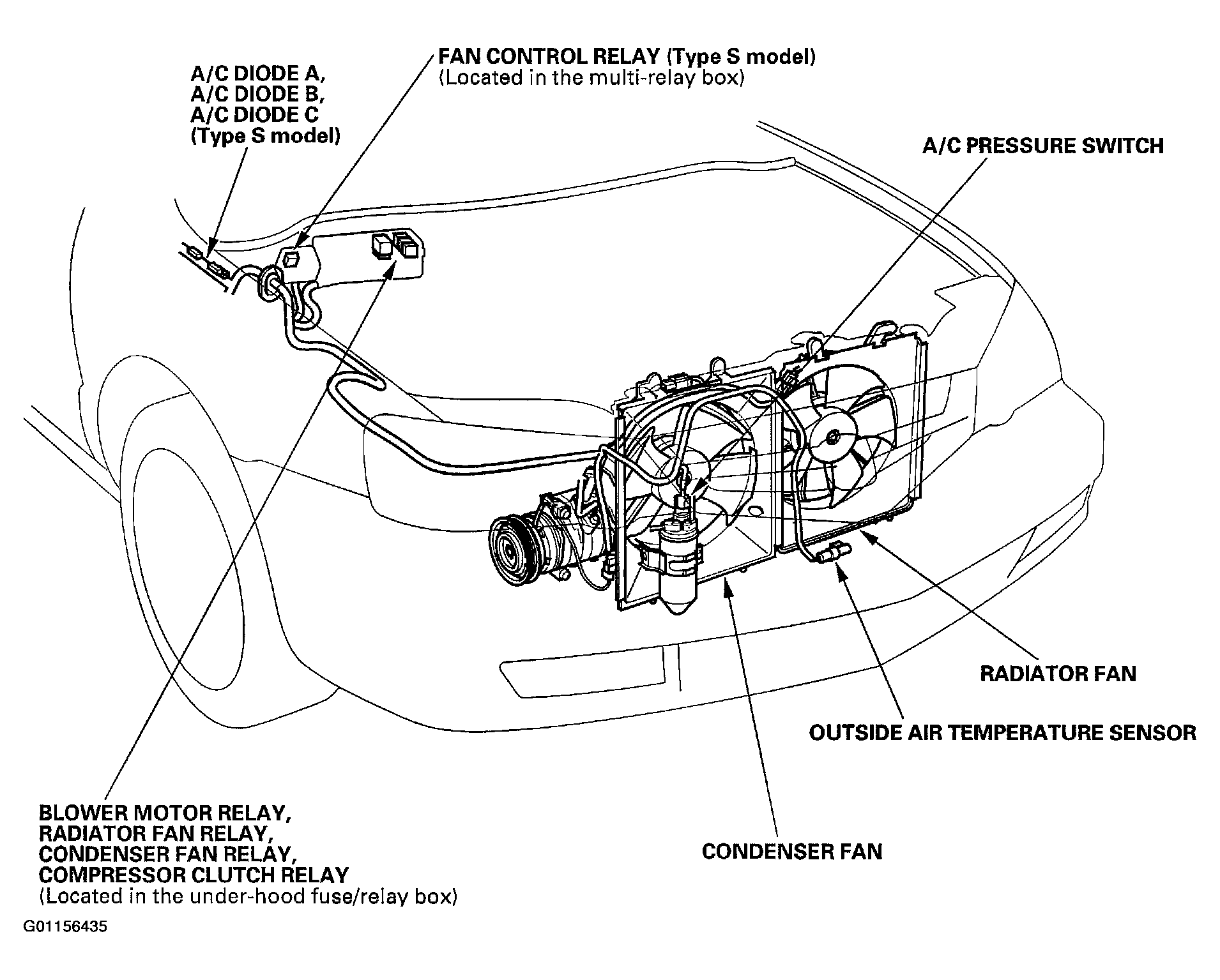

Fig 1: Identifying Component Locations (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

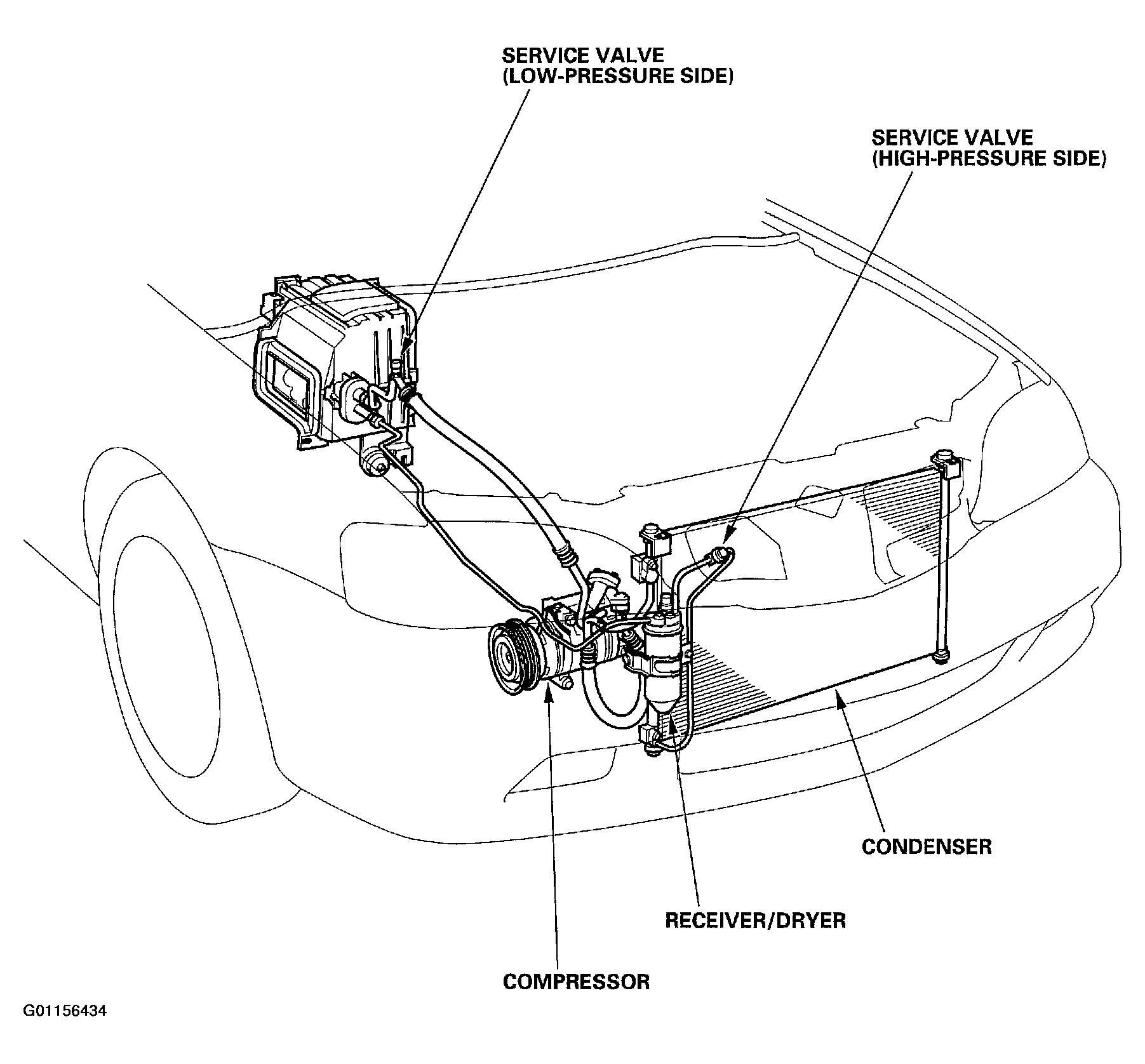

Fig 2: Identifying Component Locations (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

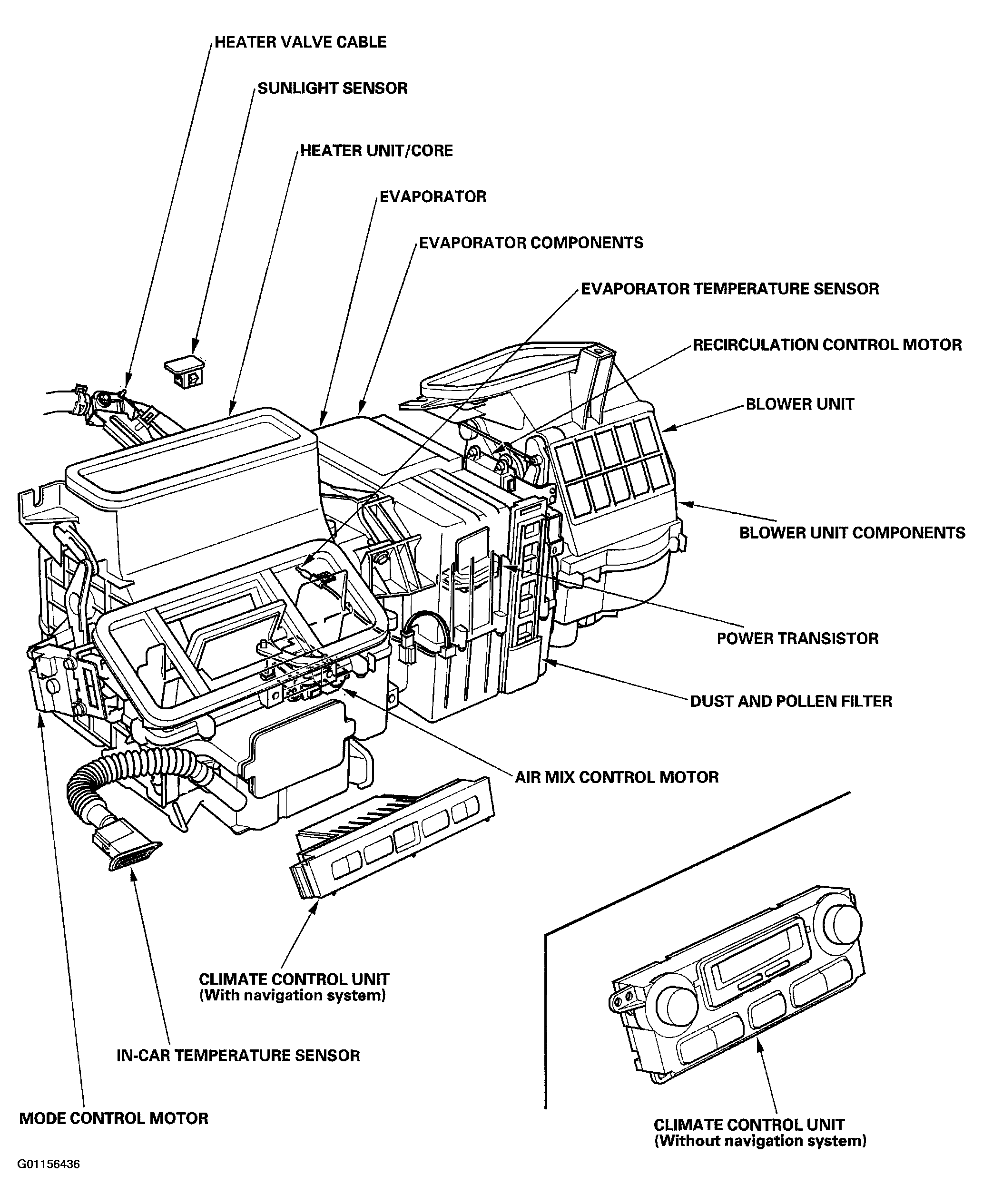

Fig 3: Identifying Component Locations (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
