In-Car Temperature Sensor Test

Check for a change in resistance by heating or cooling the sensor with a hair drier.

Compare the resistance reading between the No.1 and No. 2 terminals of the in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.

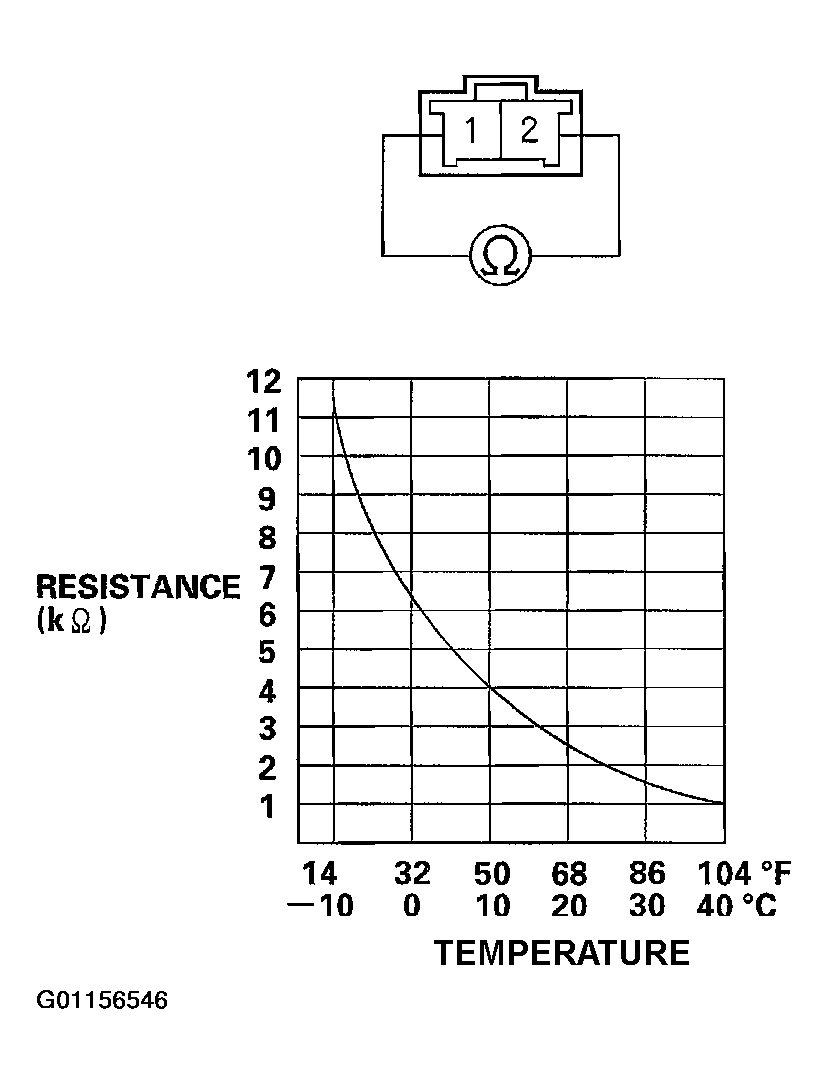

Fig 1: Testing In-Car Temperature Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
