Equalizer Unit Connector End View
Equalizer Unit Connector End View

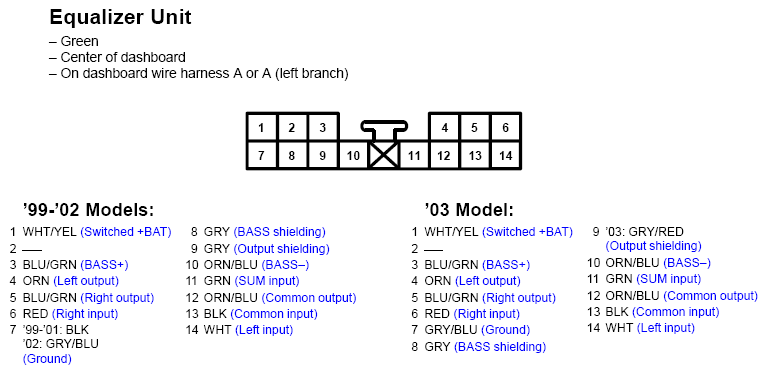

Fig 1: Equalizer Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
