Deflection Method: Adjustment

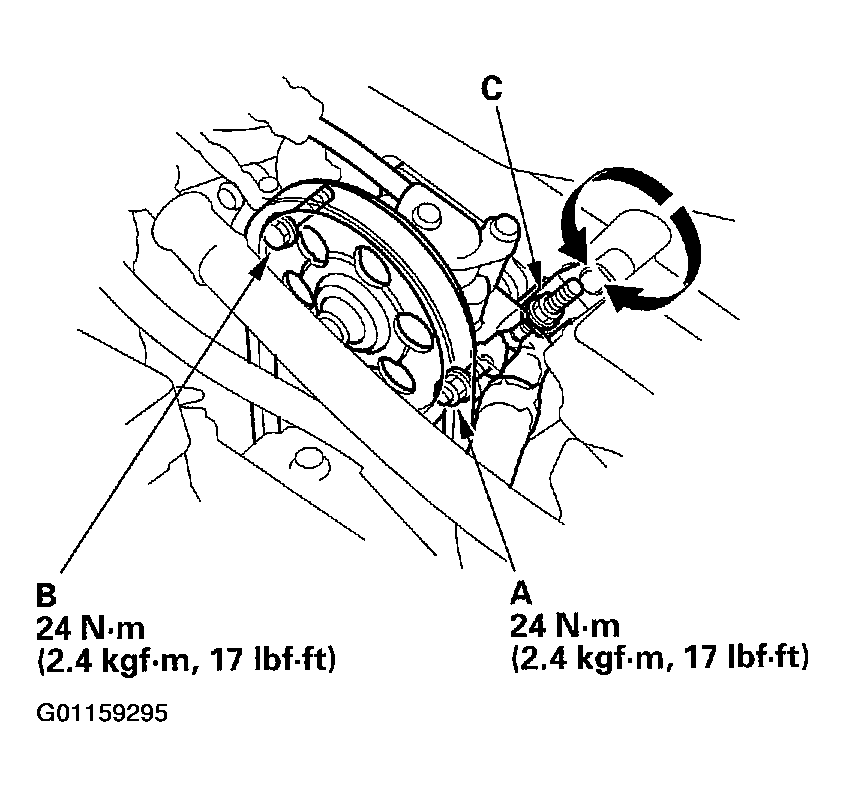

- Loosen the power steering pump mounting nut (A) and bolt (B).
- Turn the adjusting nut (C) to get the proper belt tension, then retighten the mounting nut and bolt.
- Start the engine and turn the steering wheel from lock-to-lock several times, then stop the engine and recheck the tension of the belt.
