Test E: VSA System Indicator Does Not Go Off

For test flow chart, see Fig 1 and Fig 2 .

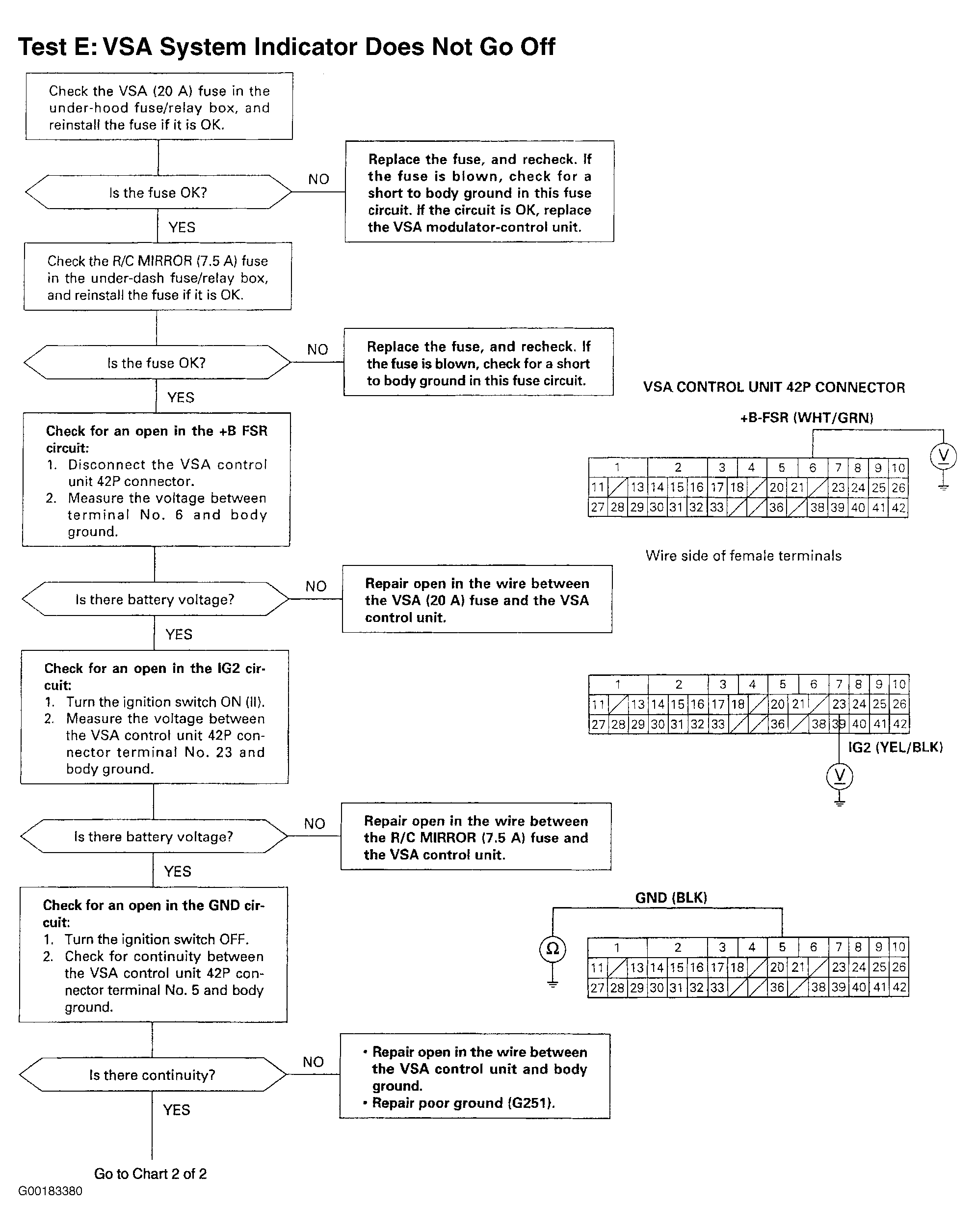

Fig 1: VSA System Indicator Does Not Go Off Flow Chart (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

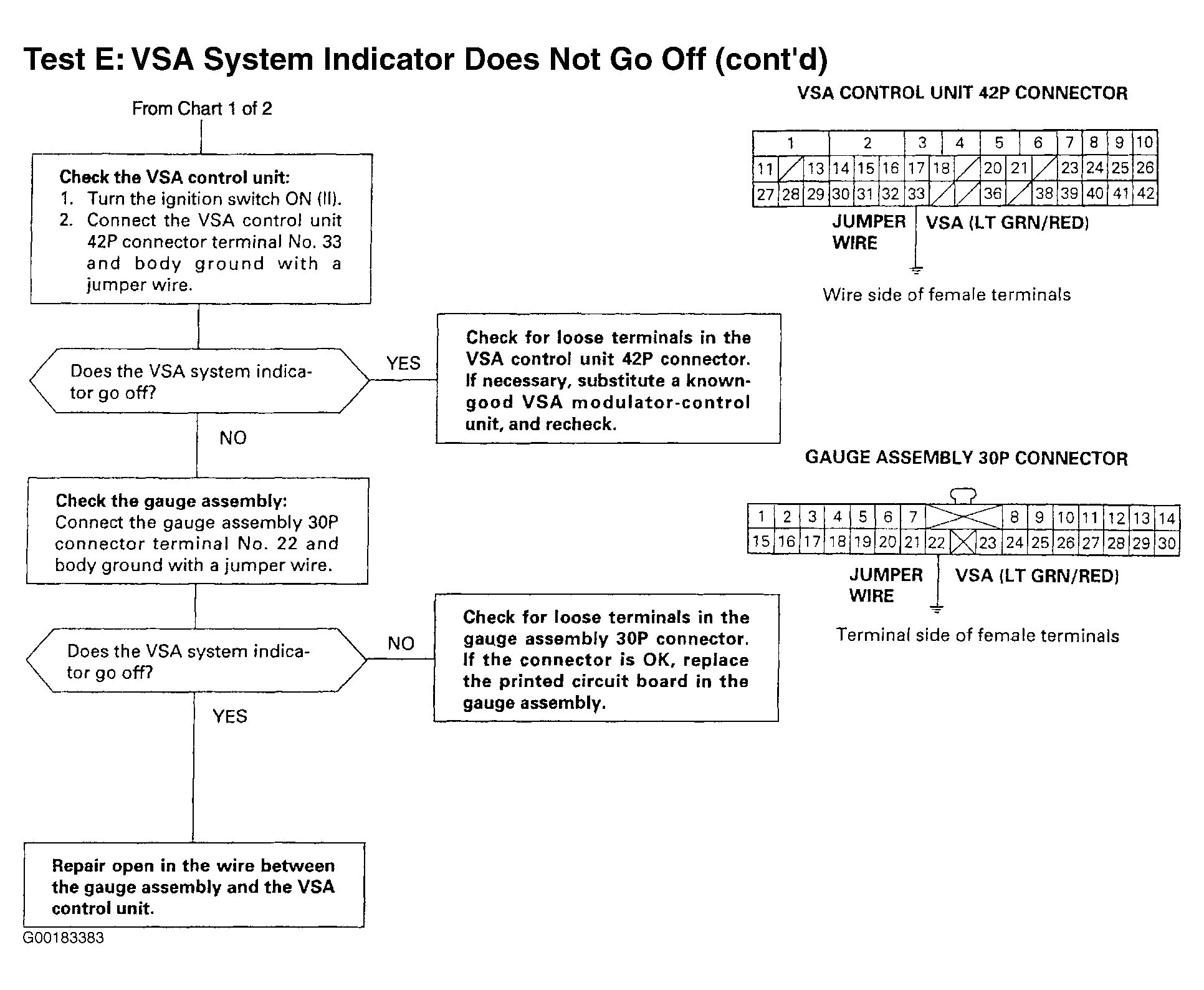

Fig 2: VSA System Indicator Does Not Go Off Flow Chart (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
