Wheel Sensor Replacement: Notes

NOTE: Install the sensors carefully to avoid twisting the wires.

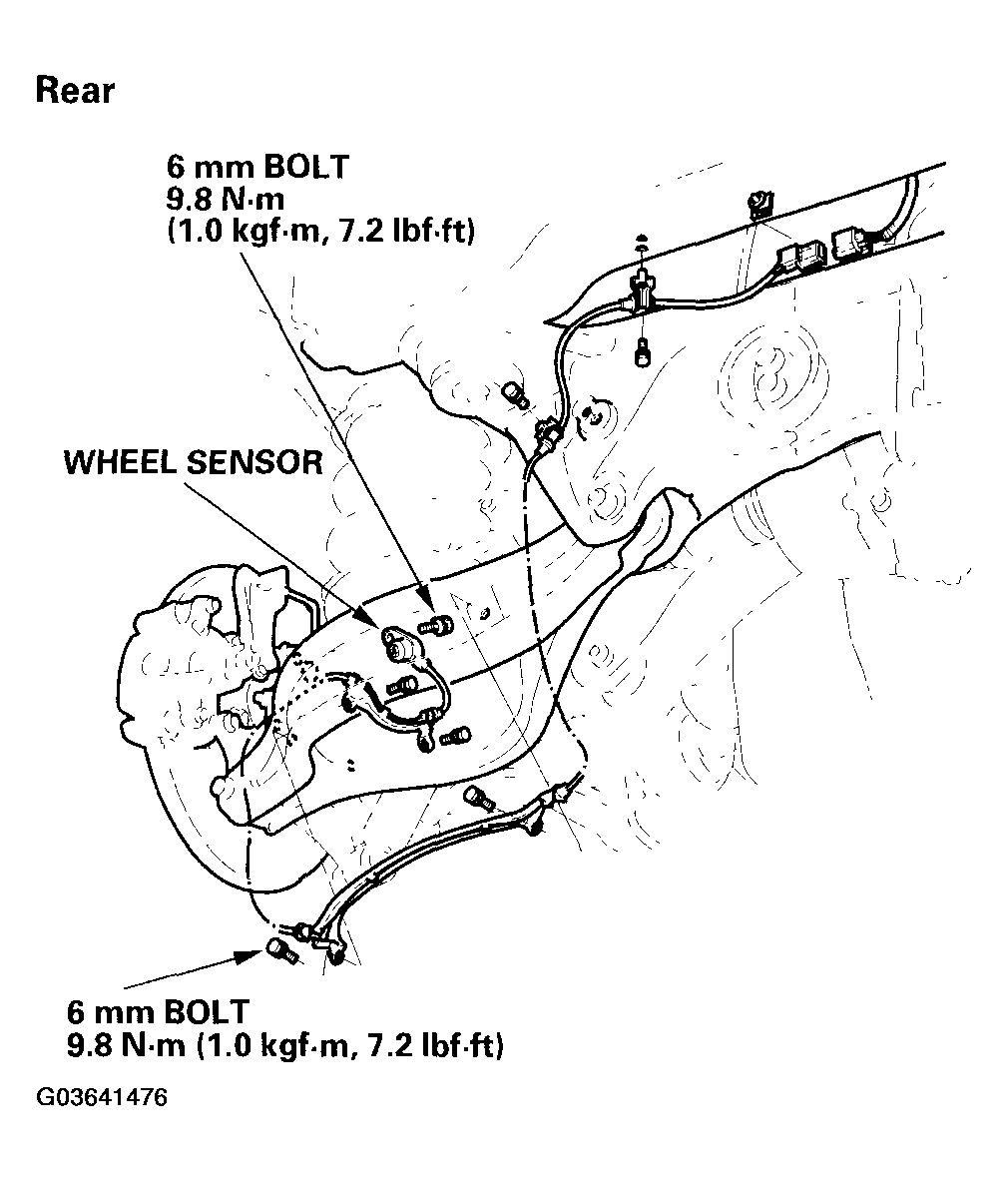

Fig 1: Installing Sensors Carefully To Avoid Twisting Wires (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

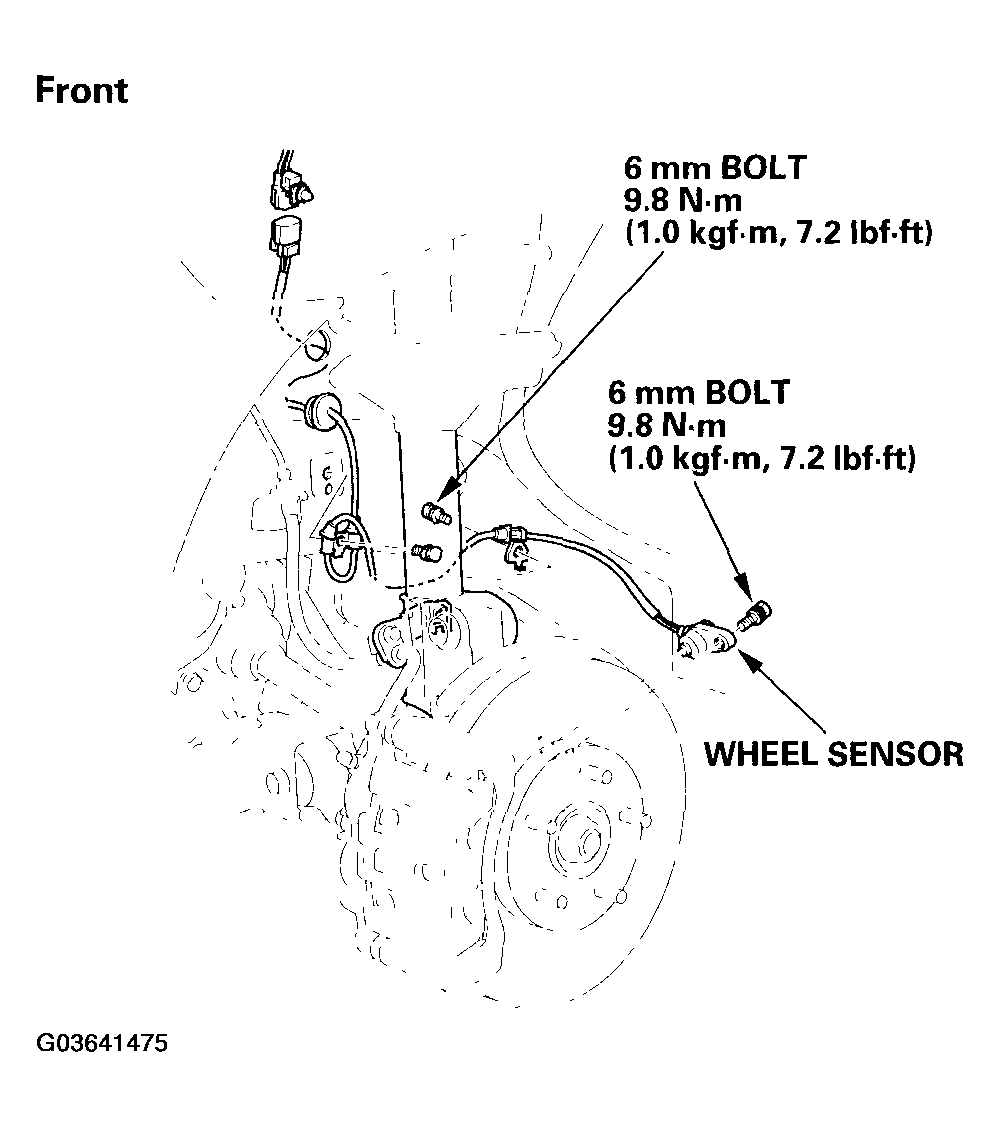

Fig 2: Installing Sensors Carefully To Avoid Twisting Wires (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
