Home › Acura › 2003 › MDX Base › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Component Location Index

Component Location Index

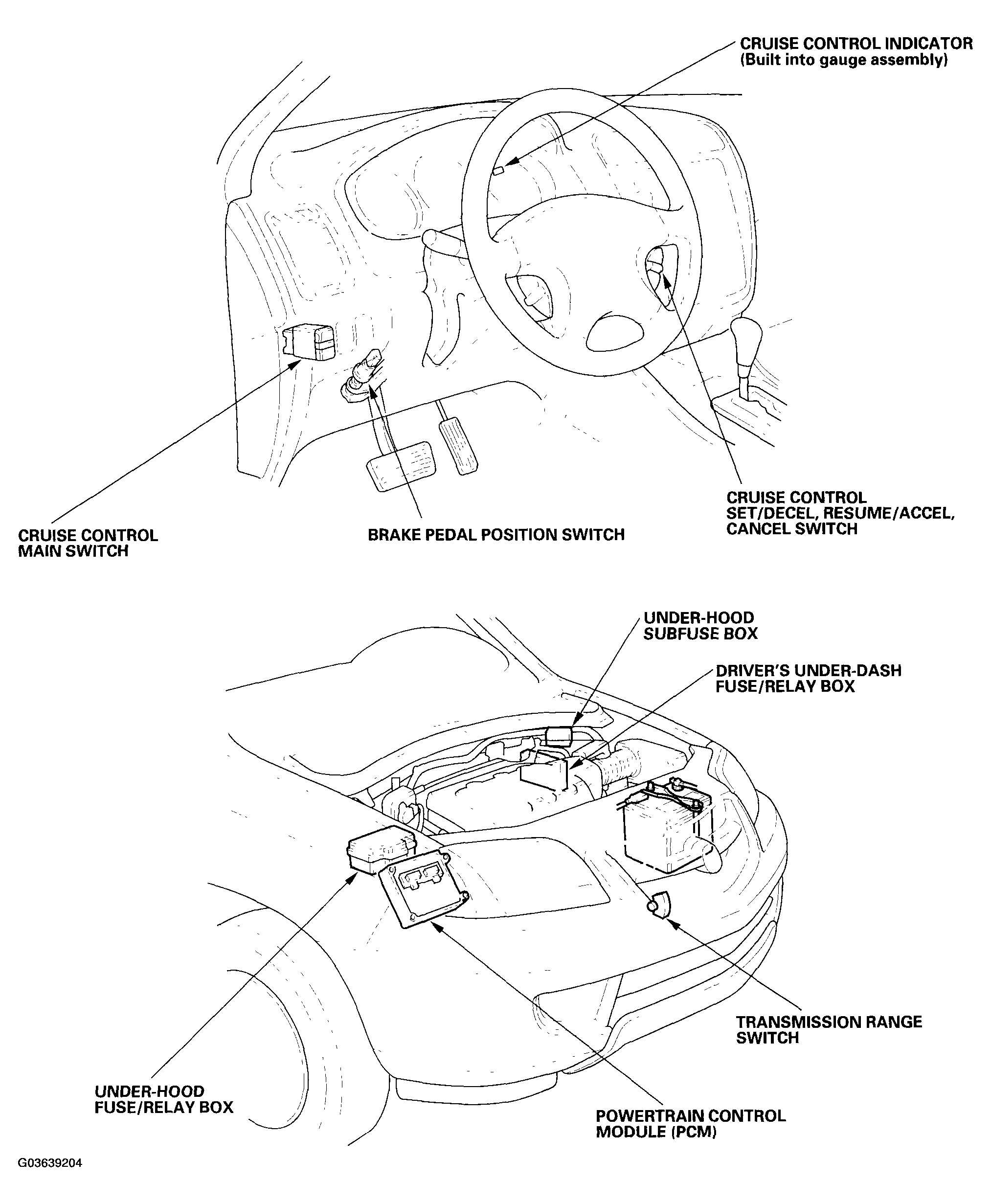

Fig 1: Identifying Cruise Control Components
G03639204Courtesy of AMERICAN HONDA MOTOR CO., INC.
