With BOSE Sound System

  1. Remove the rear speaker grille (A).

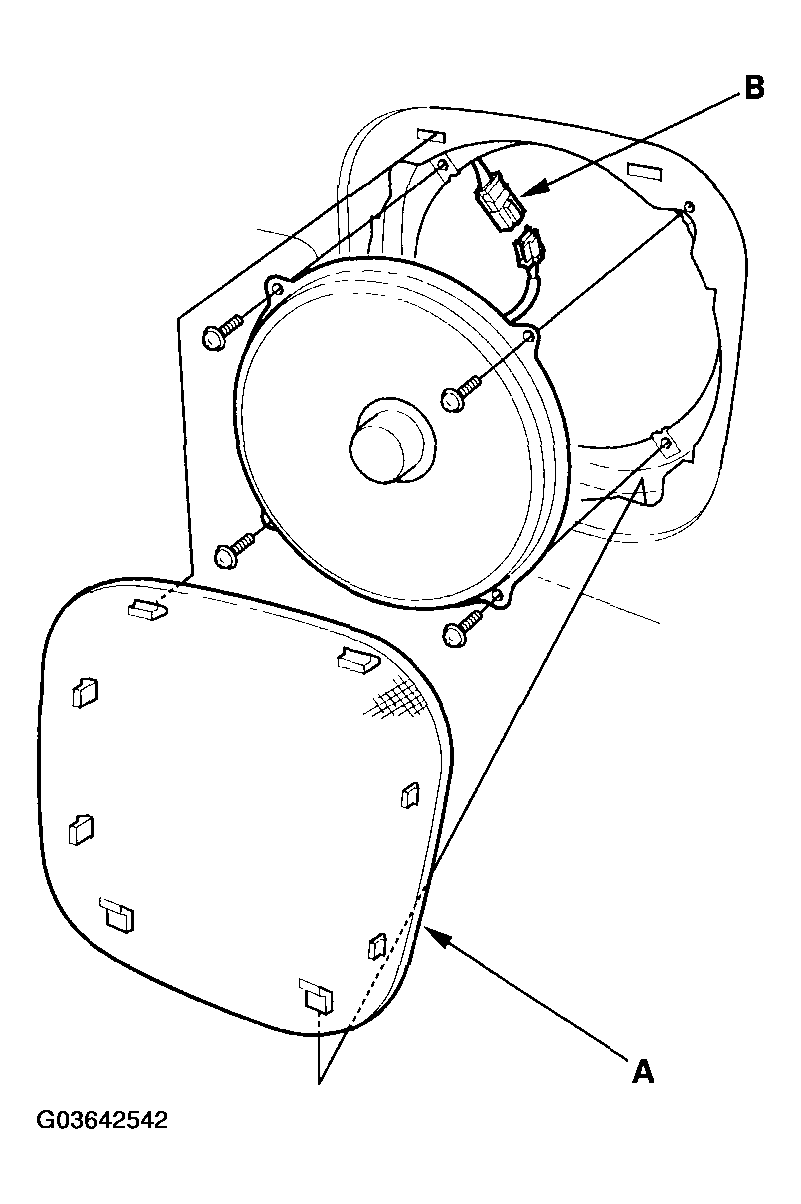

    Fig 1: Removing Rear Speaker Grille
    G03642542Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the four mounting screws from the woofer.
  3. Disconnect the 5P ('03 model) or 2P ('04-06 models) connector (B) and the woofer.
  4. Install in the reverse order of removal.
