Component Location Index

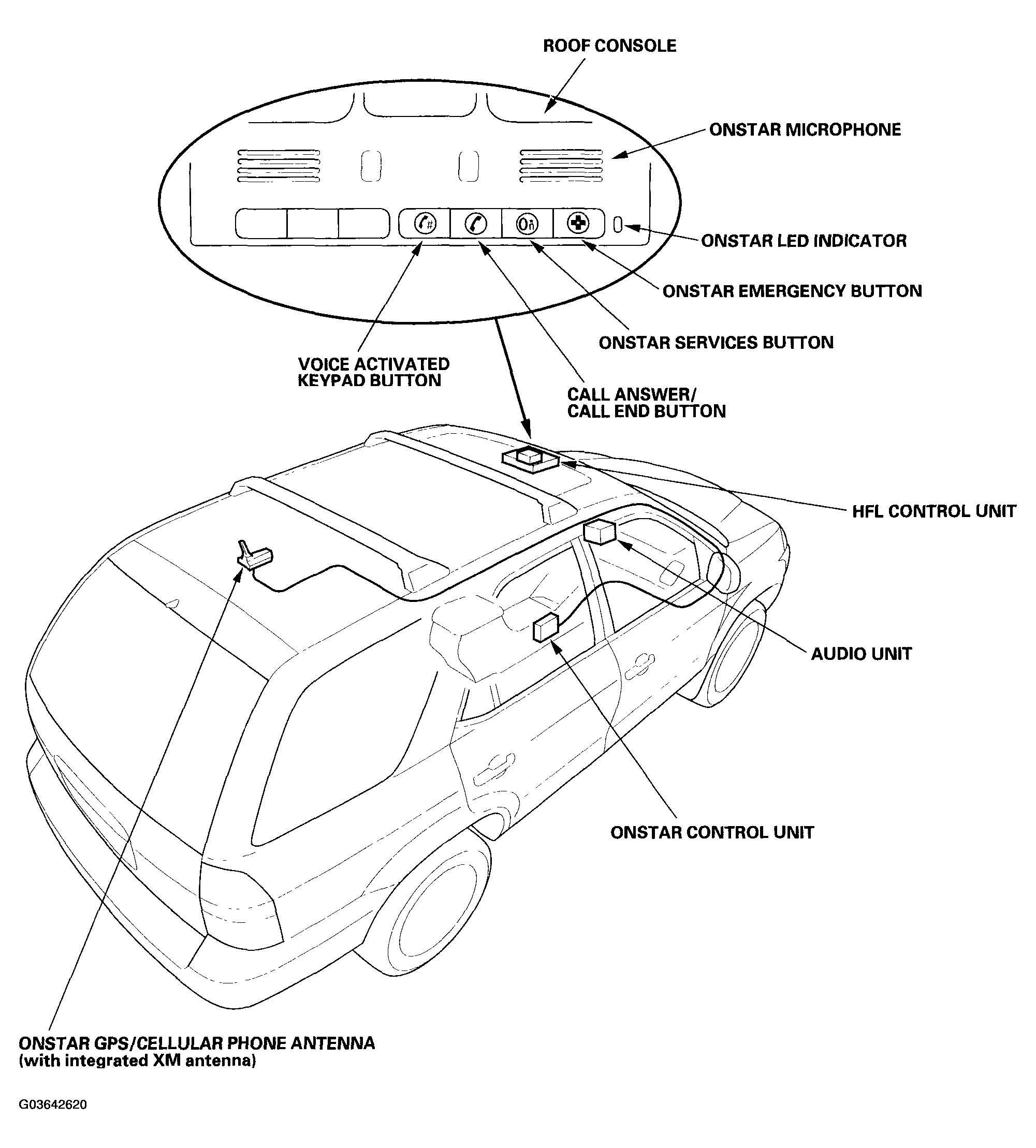

Fig 1: Identifying OnStar System Components Location
G03642620Courtesy of AMERICAN HONDA MOTOR CO., INC.
