'03 model

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the seat heater switch (B), and remove the switch.

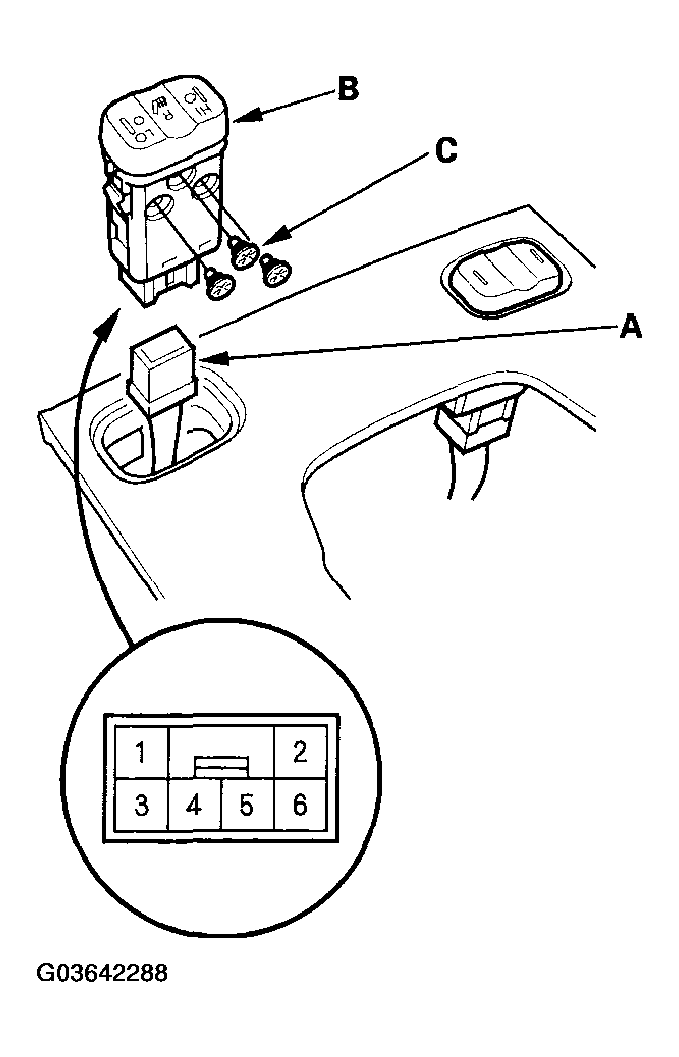

    Fig 1: Disconnecting 6P Connector From Seat Heater Switch
    G03642288Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminal in each switch position according to Fig 2 .

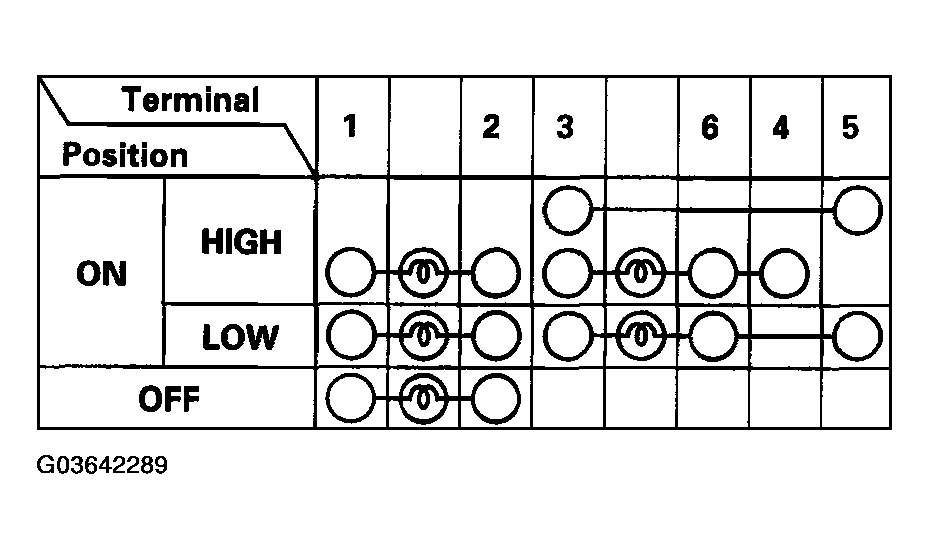

    Fig 2: Checking Continuity Between Terminals In Each Switch Position Chart
    G03642289Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the illumination bulbs (C) or the switch.
