Audio Unit Connector End View

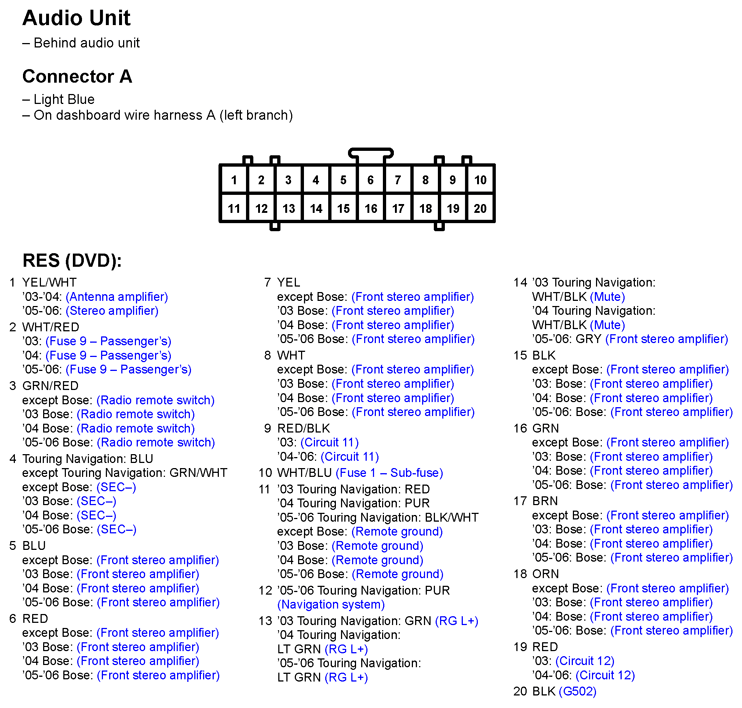

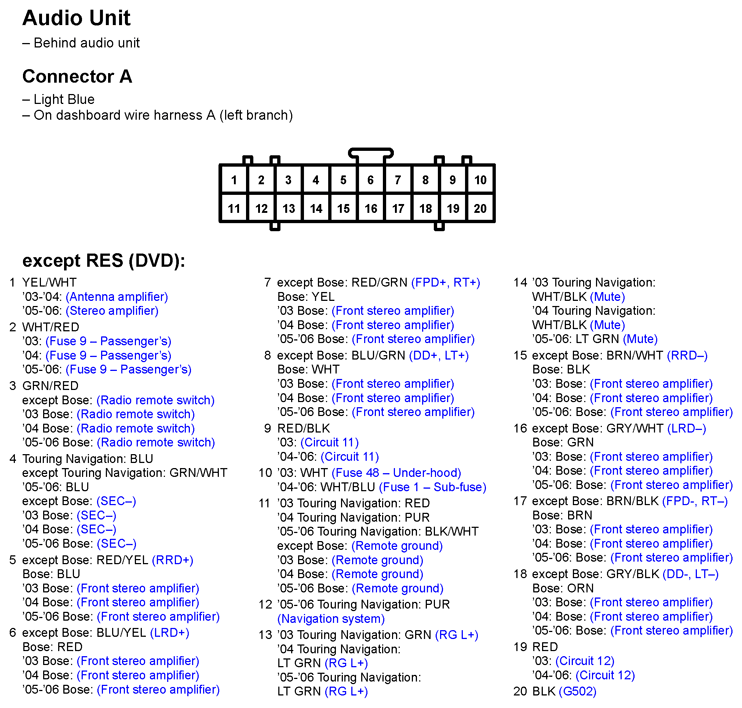

Fig 1: Audio Unit Connector End View (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

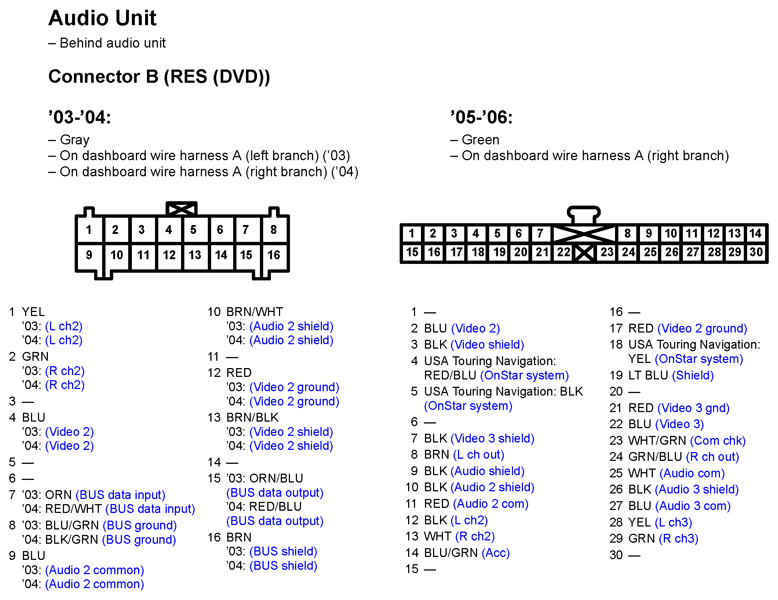

Fig 2: Audio Unit Connector End View (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

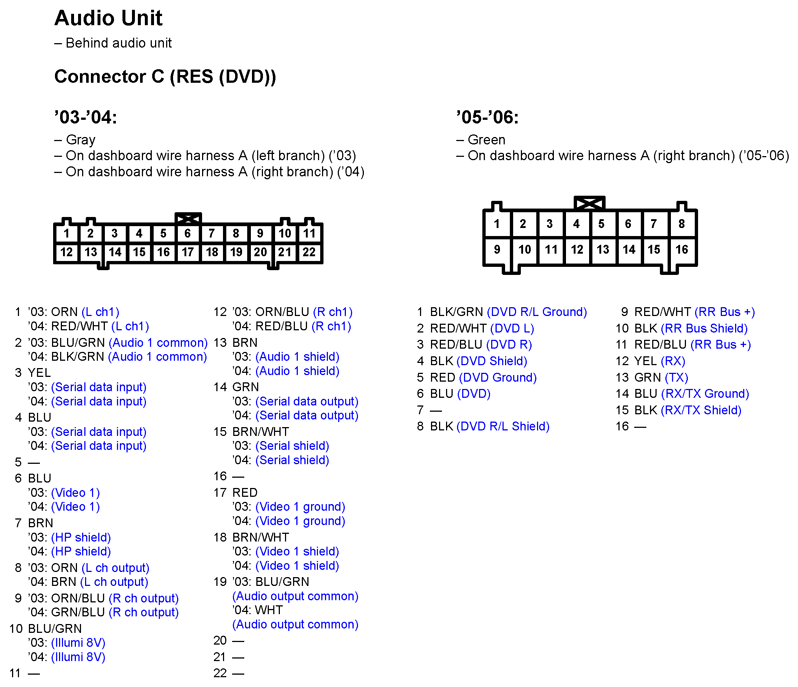

Fig 3: Audio Unit Connector End View (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

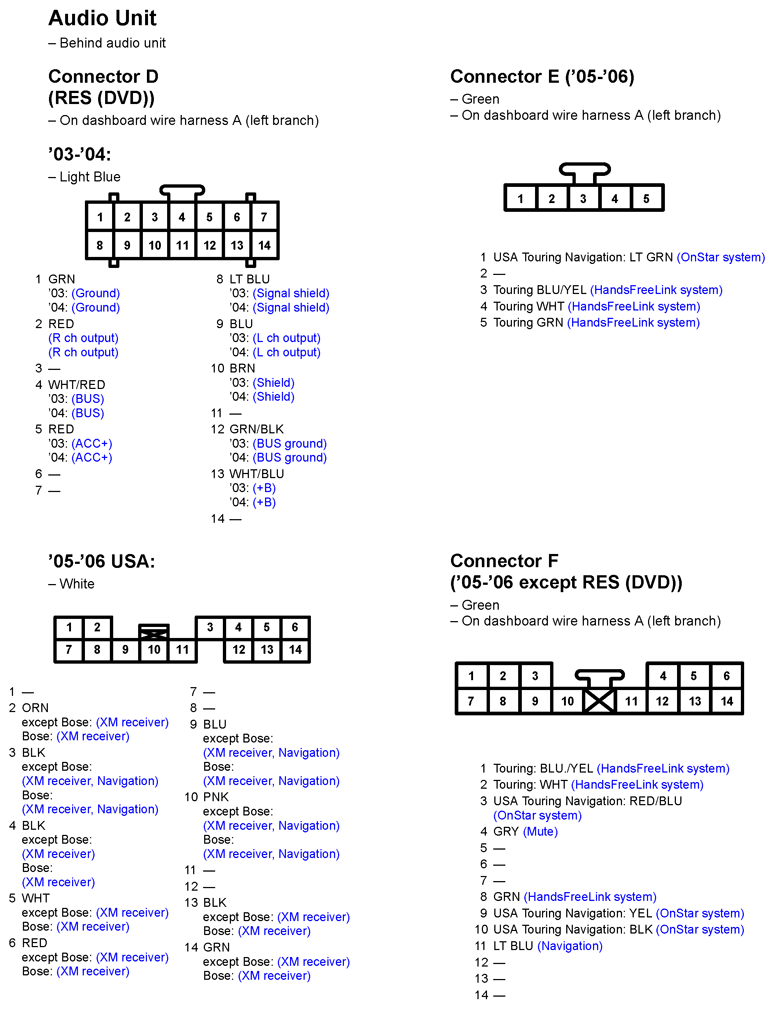

Fig 4: Audio Unit Connector End View (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Audio Unit Connector End View (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
