Moonroof Close and Open Relay Connector End View
Moonroof Close and Open Relay Connector End View

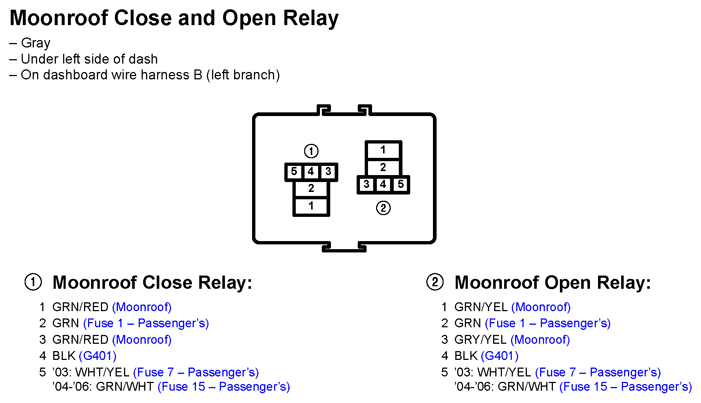

Fig 1: Moonroof Close and Open Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
