VTM-4 Control Unit Connector End View
VTM-4 Control Unit Connector End View

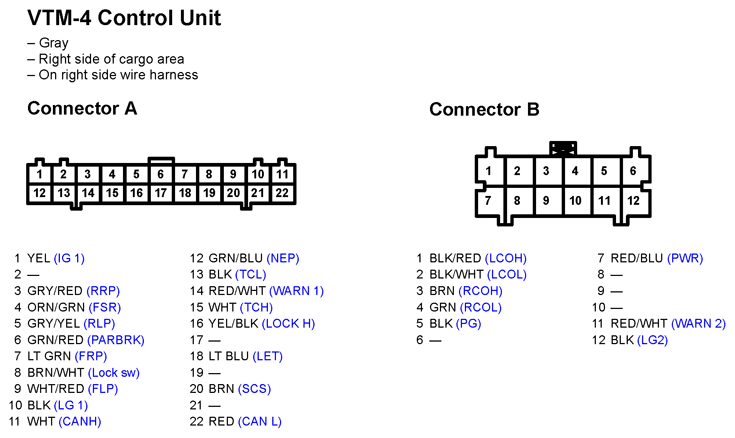

Fig 1: VTM-4 Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
