Engine Compartment

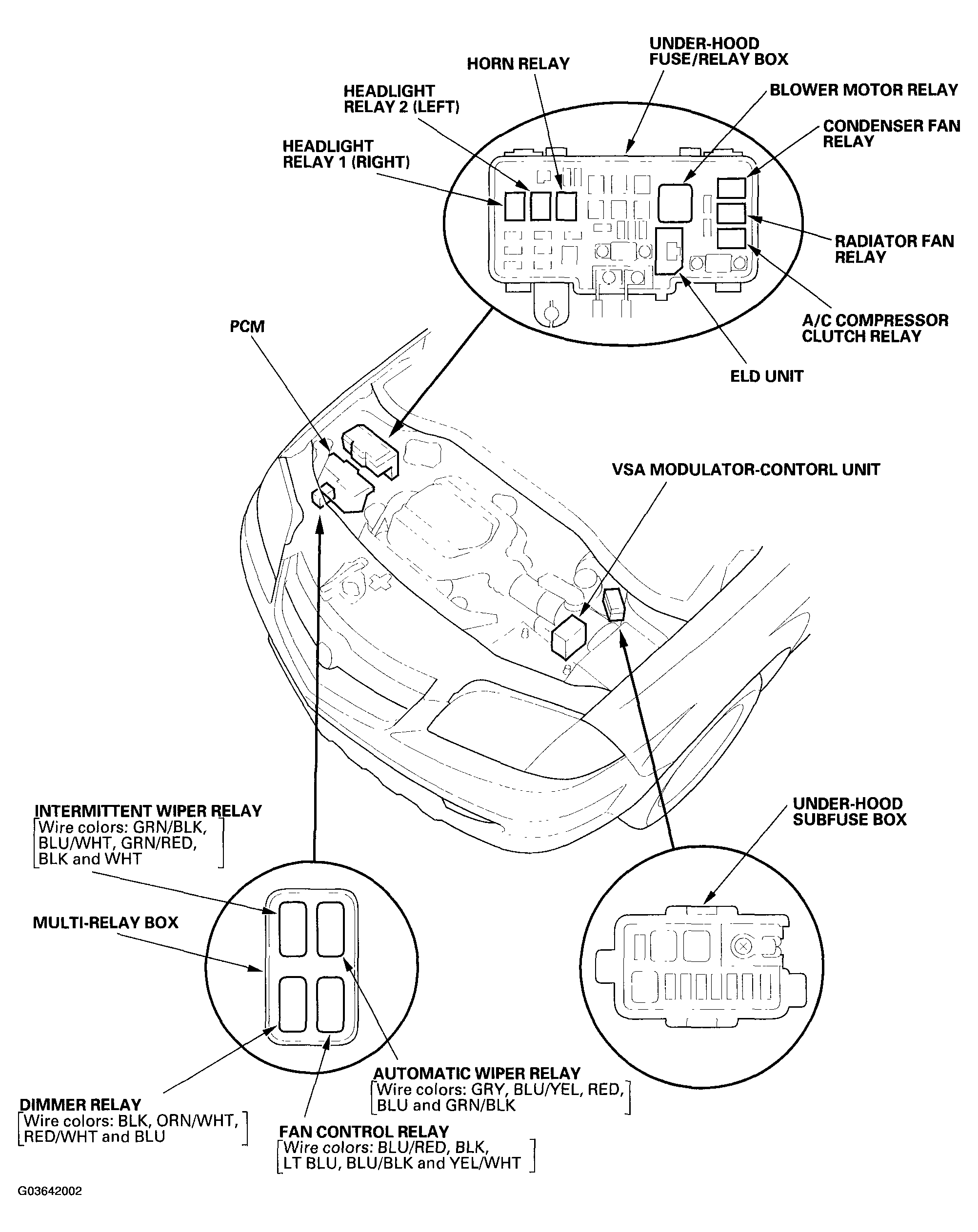

Fig 1: Identifying Engine Compartment
G03642002Courtesy of AMERICAN HONDA MOTOR CO., INC.
