2003-2004 models

  1. Remove the bolts and the EVAP canister cover (A).

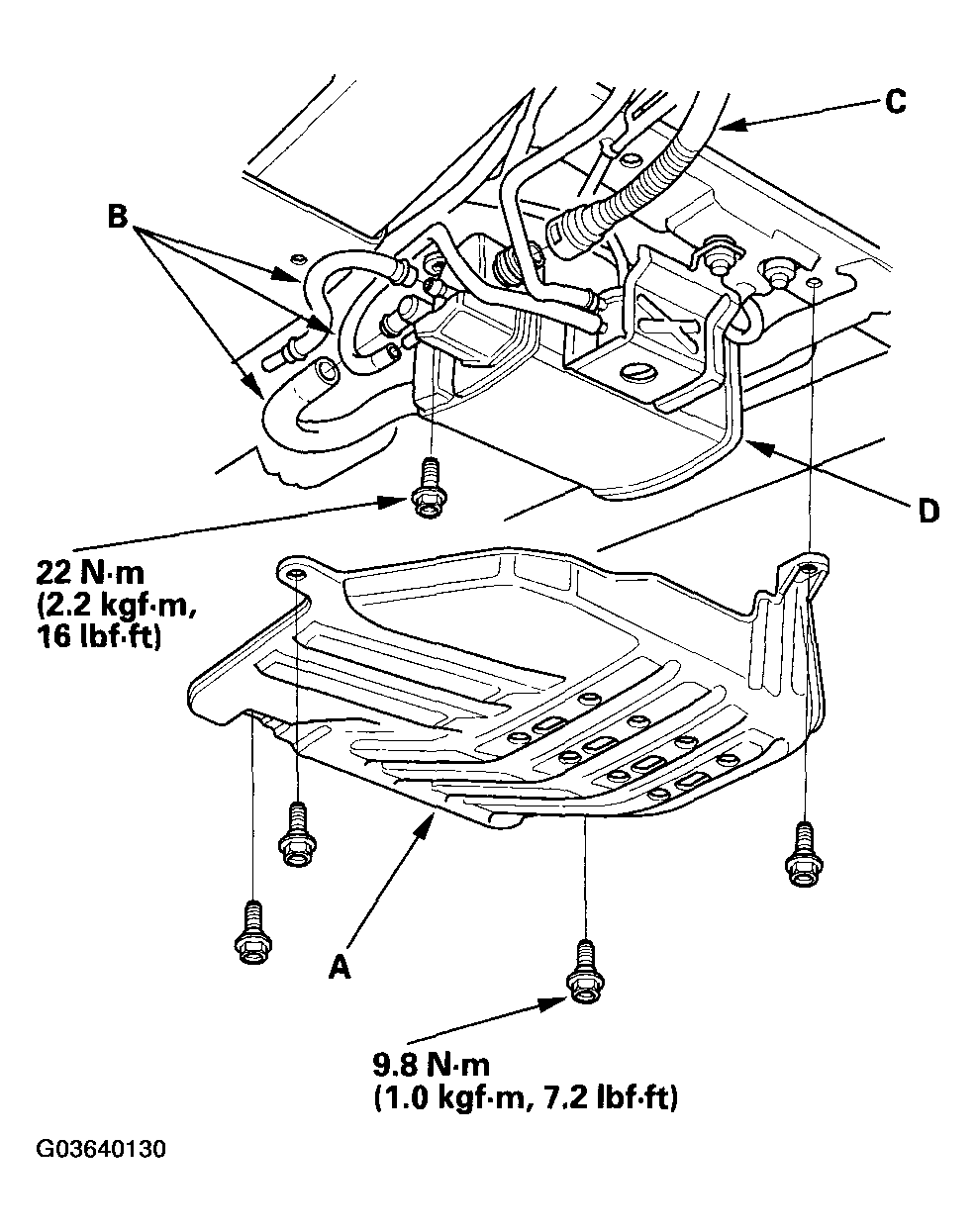

    Fig 1: Removing Bolts And EVAP Canister Cover
    G03640130Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the drain and purge hoses (B).
  3. Disconnect the quick-connect fitting (C).
  4. Remove the bolt and the EVAP canister (D).
  5. Install the canister in the reverse order of removal.
