Rear Bank(Bank 1)

  1. Disconnect the rear A/F sensor 8P connector (A), then remove the rear A/F sensor (B).

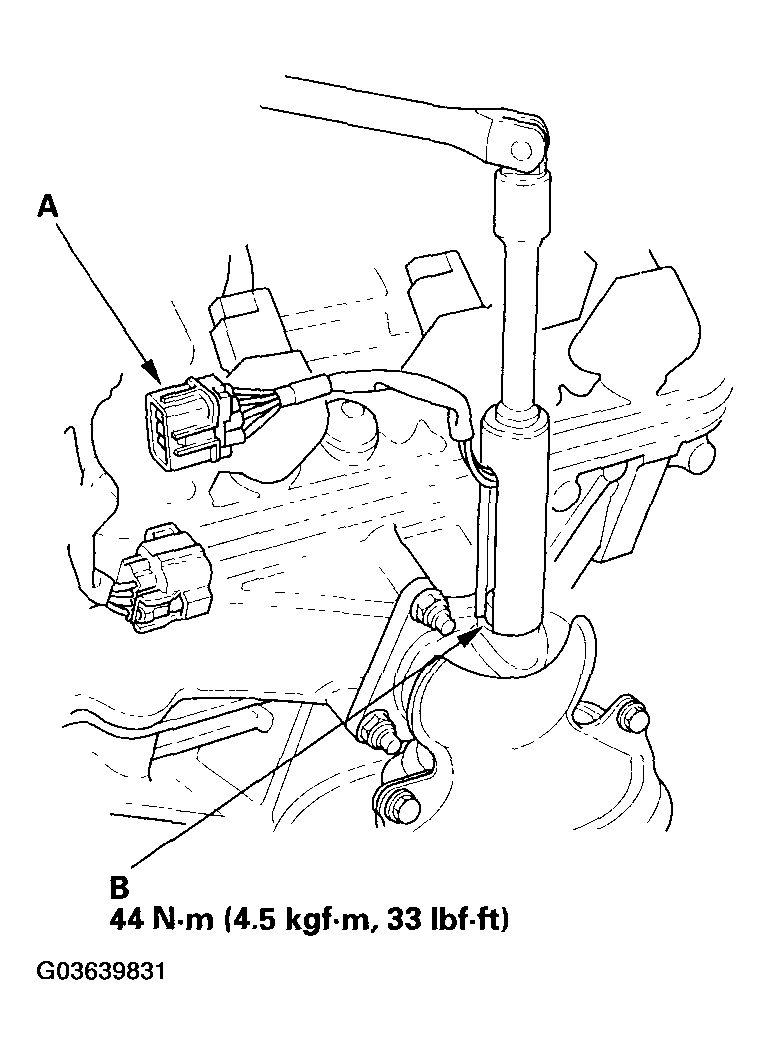

    Fig 1: Disconnecting Rear A/F Sensor 8P Connector
    G03639831Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the rear A/F sensor in the reverse order of removal.
