Brake Hose Replacement: Front

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel.
Disconnect the brake line (A) from the brake hose (B), then remove the brake hose clip (C).

Fig 1: Identifying Brake Line, Brake Hose And Brake Hose Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper.

Fig 2: Identifying Banjo Bolt, Brake Hose And Caliper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake hose mounting bolt (C), then remove the brake hose.
Install the brake hose (A) with the mounting bolt (B).

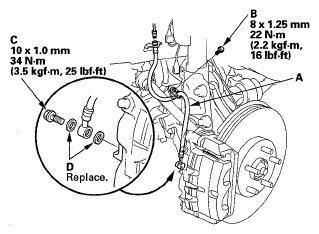

Fig 3: Brake Hose And Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D).
Install a new brake hose clip (A) to the brake hose (B) on the bracket, then connect the brake line (C). Do not twist the brake hose.

Fig 4: Banjo Bolt And Sealing Washers With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hose, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces of the brake disc and the inside of the wheel, then install the front wheel.
