Lubricants And Fluids

For details of lubrications points and type of lubricants to be applied, refer to and various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.)

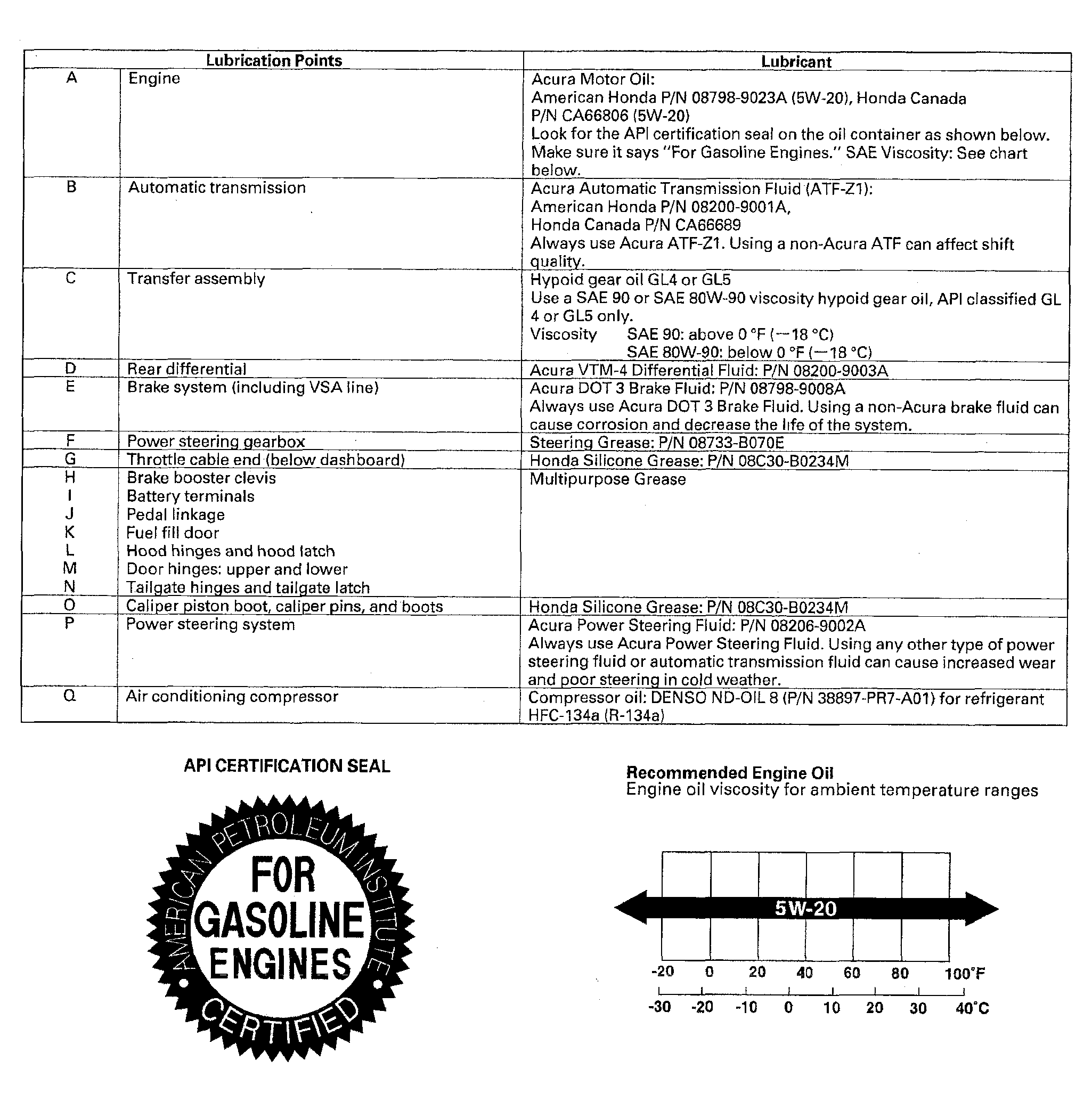

Fig 1: Identifying Lubrication Points And Lubricant (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

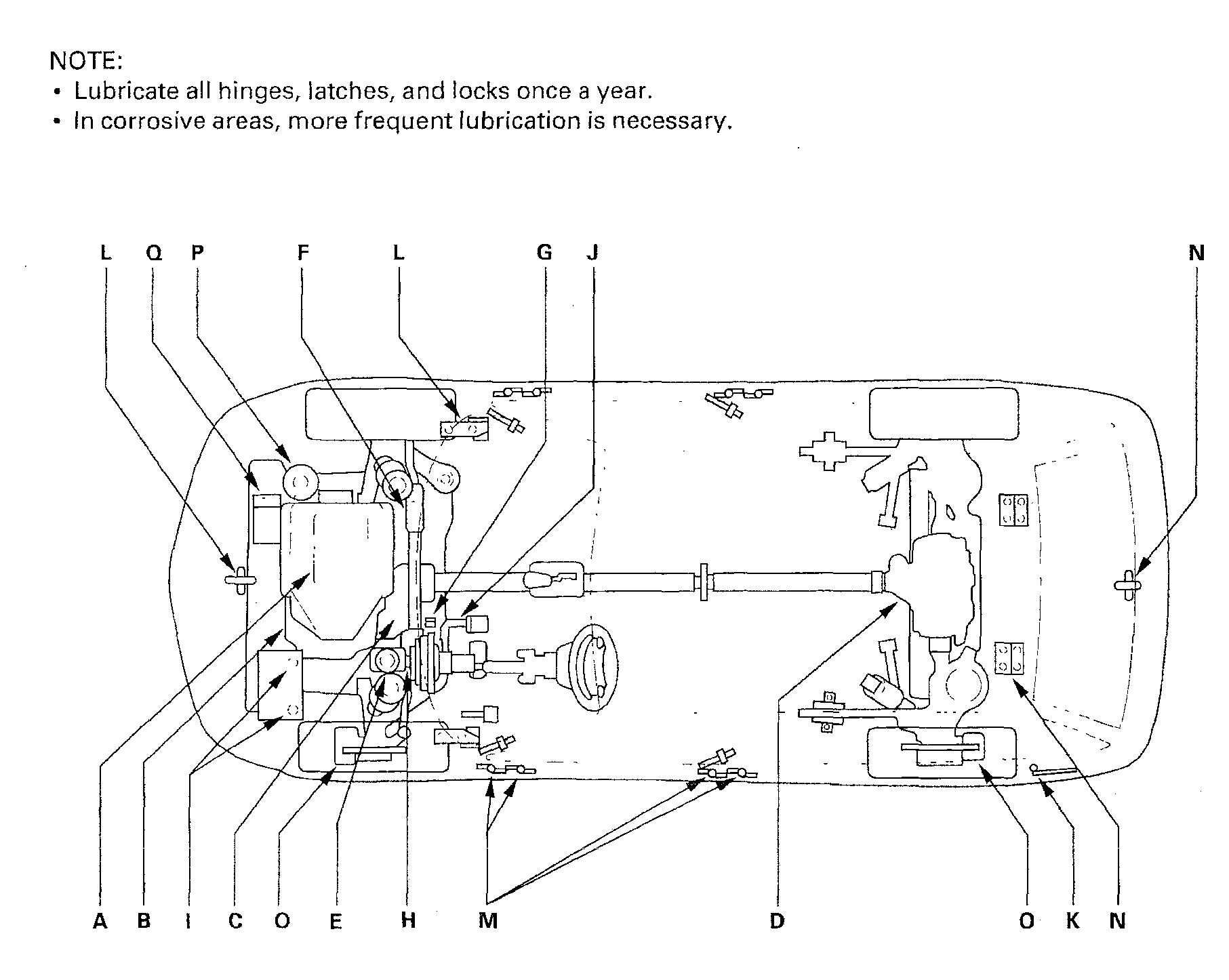

Fig 2: Identifying Lubrication Points And Lubricatio (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
