Gauge Assembly Connector End View

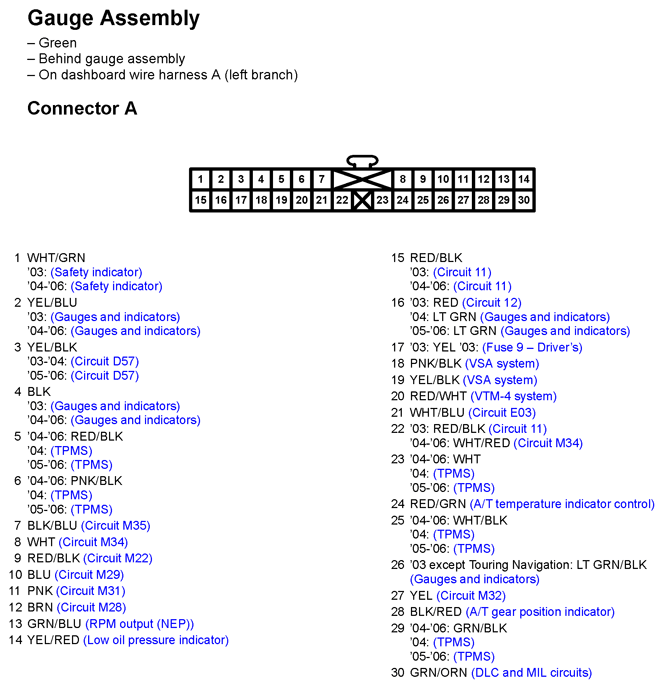

Fig 1: Gauge Assembly Connector End View (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

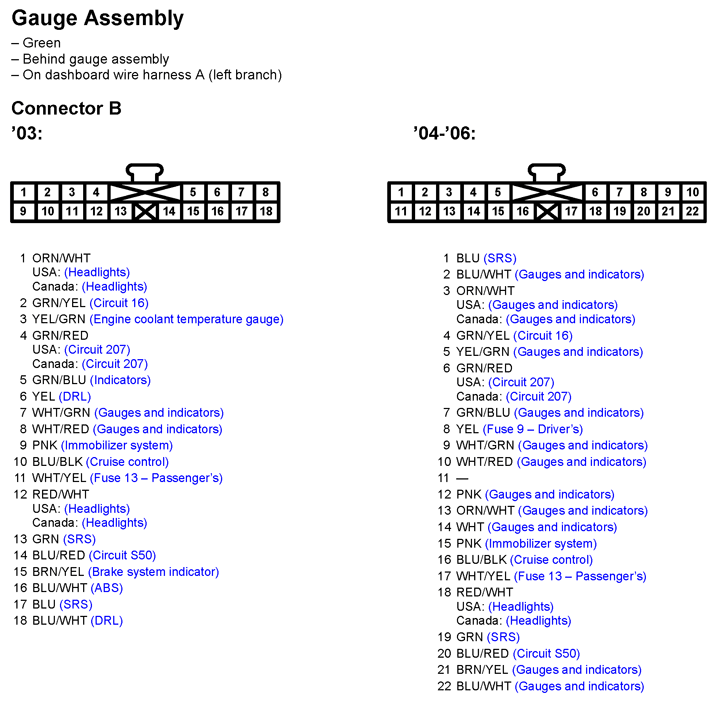

Fig 2: Gauge Assembly Connector End View (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

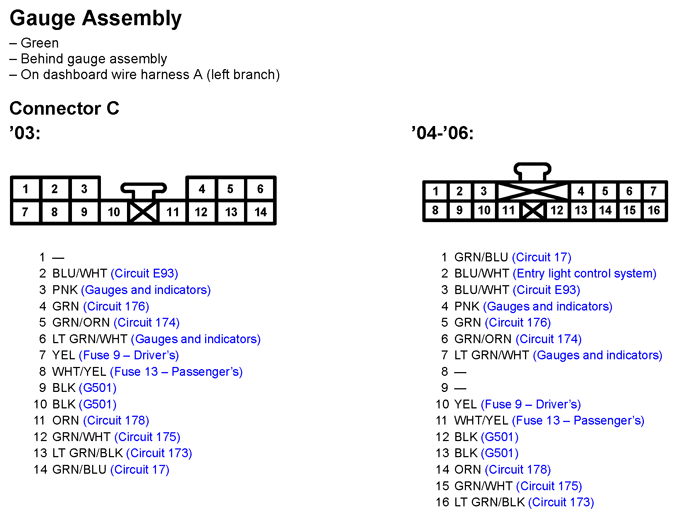

Fig 3: Gauge Assembly Connector End View (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
