Power Mirror, Right Connector End View
Power Mirror, Right Connector End View

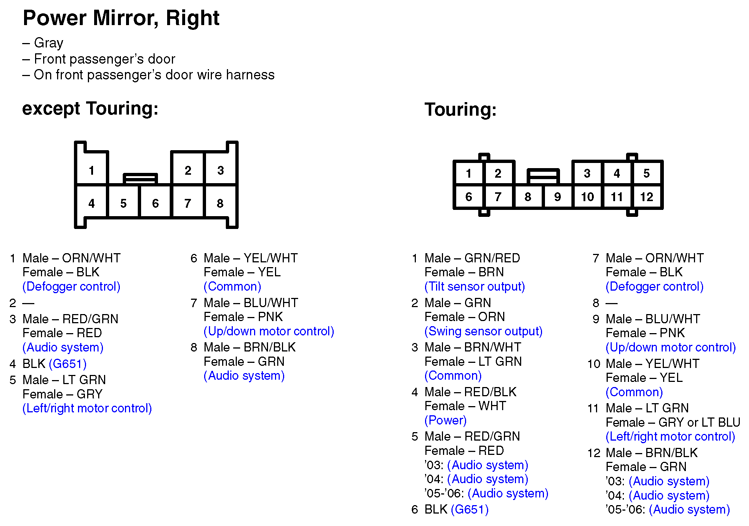

Fig 1: Power Mirror, Right Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
