Component Location Index

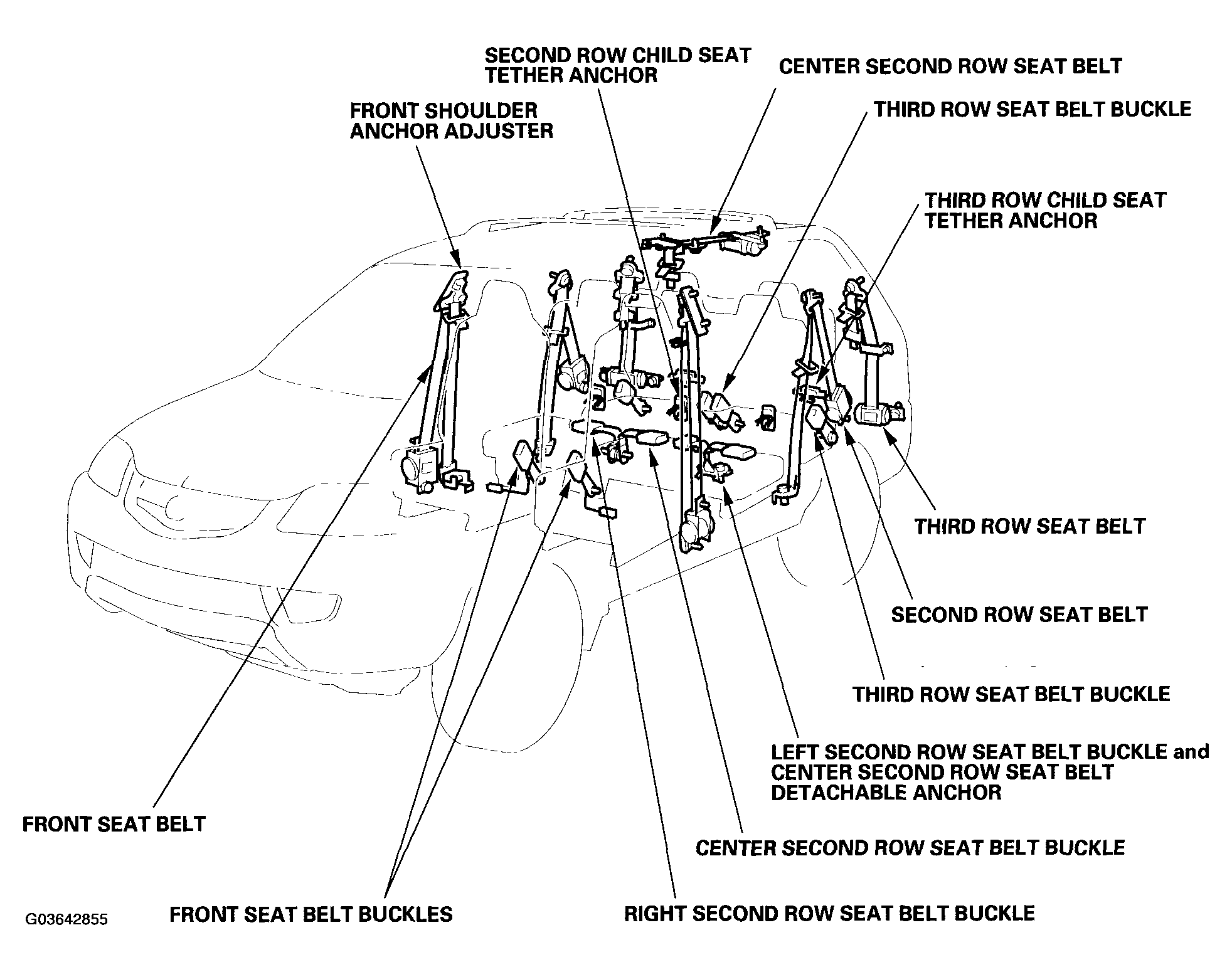

Fig 1: Identifying Seat Belts Components Location
G03642855Courtesy of AMERICAN HONDA MOTOR CO., INC.
