ATF Cooler Hose Replacement

Connect the cooler hoses (A) to the ATF cooler lines (B) and ATF cooler, and secure them with the clips (C).

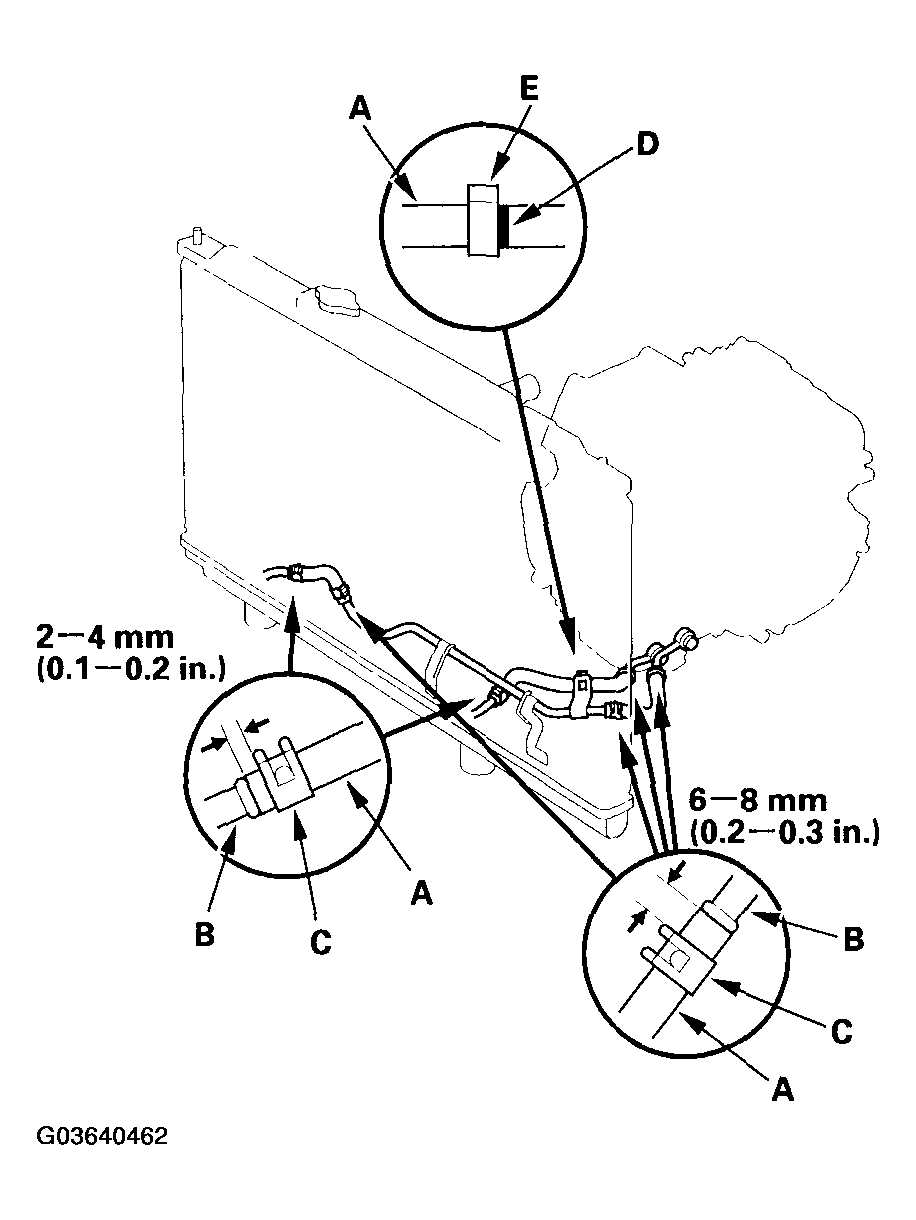

Fig 1: Connecting Cooler Hoses To ATF Cooler Lines And ATF Cooler
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
