Output Shaft (Countershaft) Speed Sensor Replacement

  1. Remove the splash shield.
  2. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor.

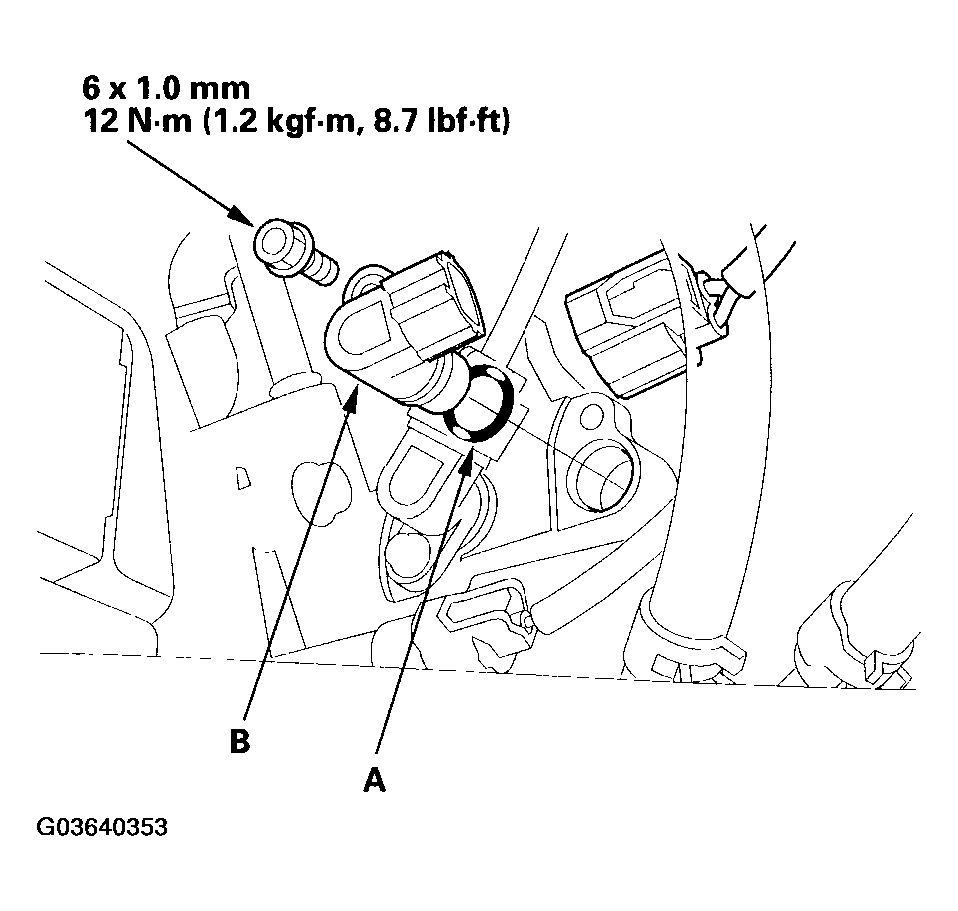

    Fig 1: Removing Output Shaft (Countershaft) Speed Sensor
    G03640353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new O-ring (A) on the new output shaft (countershaft) speed sensor (B), then install the output shaft (countershaft) speed sensor in the transmission housing.
  4. Check the connector for rust, dirt, or oil, then connect the connector securely.
  5. Install the splash shield.
