System Description
›
Electronic Control System
›
Electronic Controls Locations
Electronic Controls Locations

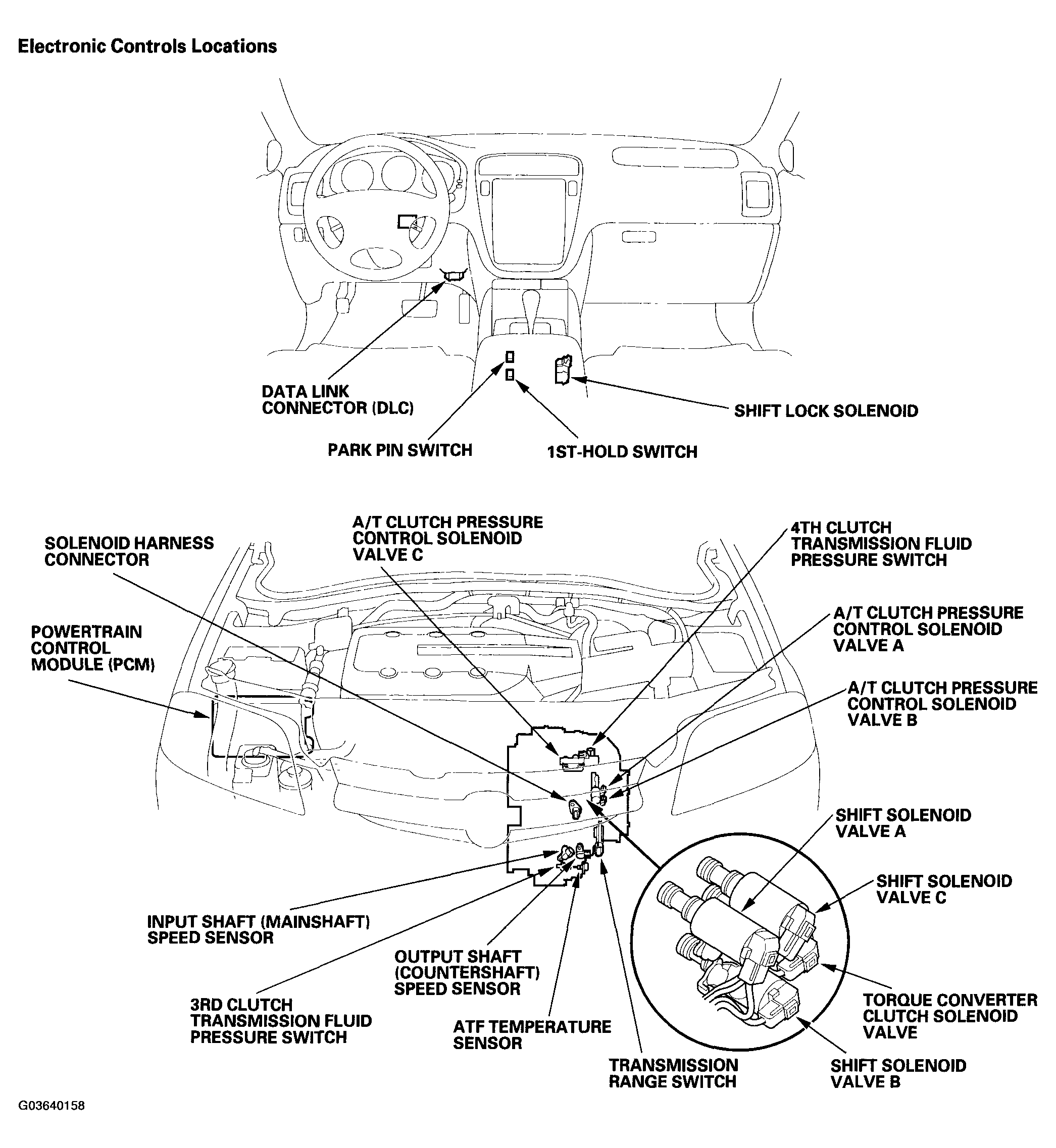

Fig 1: Identifying Electronic Controls Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
