Component Location Index

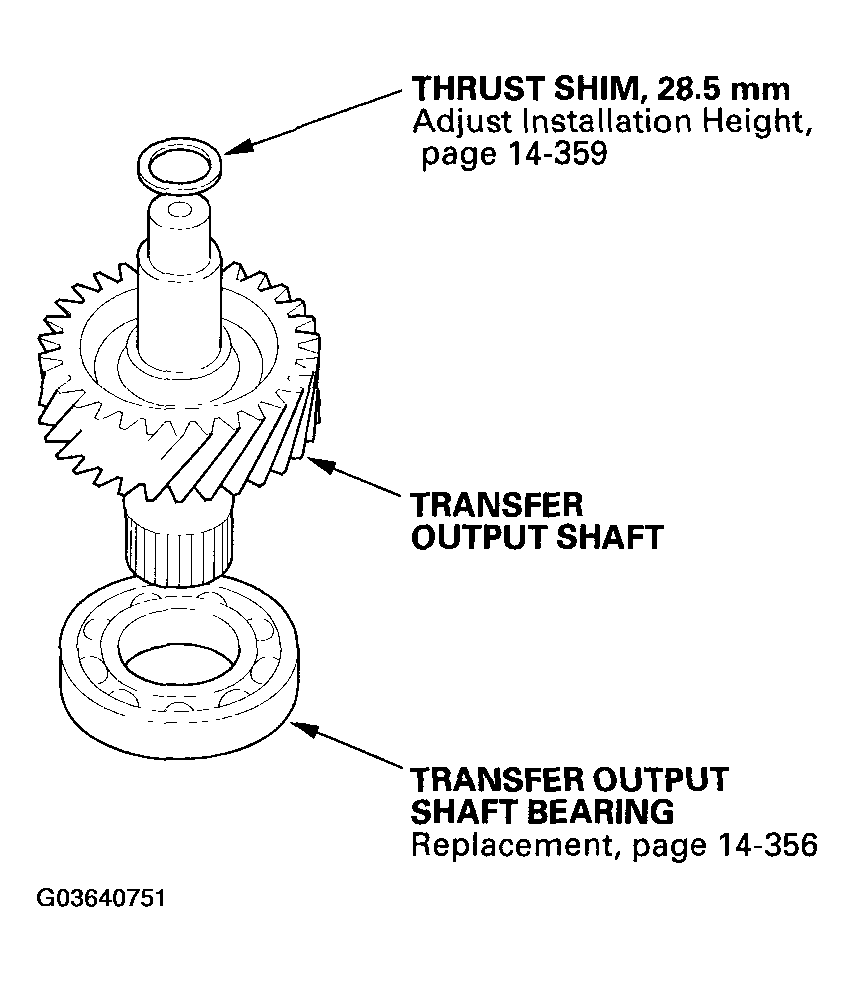

Fig 1: Identifying Transfer Output Shaft Components Location
G03640751Courtesy of AMERICAN HONDA MOTOR CO., INC.
