Component Tests: Relays

Check for continuity between terminals (1) and (3). There should be continuity. See Fig 1 .
Connect a 12 V battery across terminals (2) and (4). There should be no continuity between terminals (1) and (3).

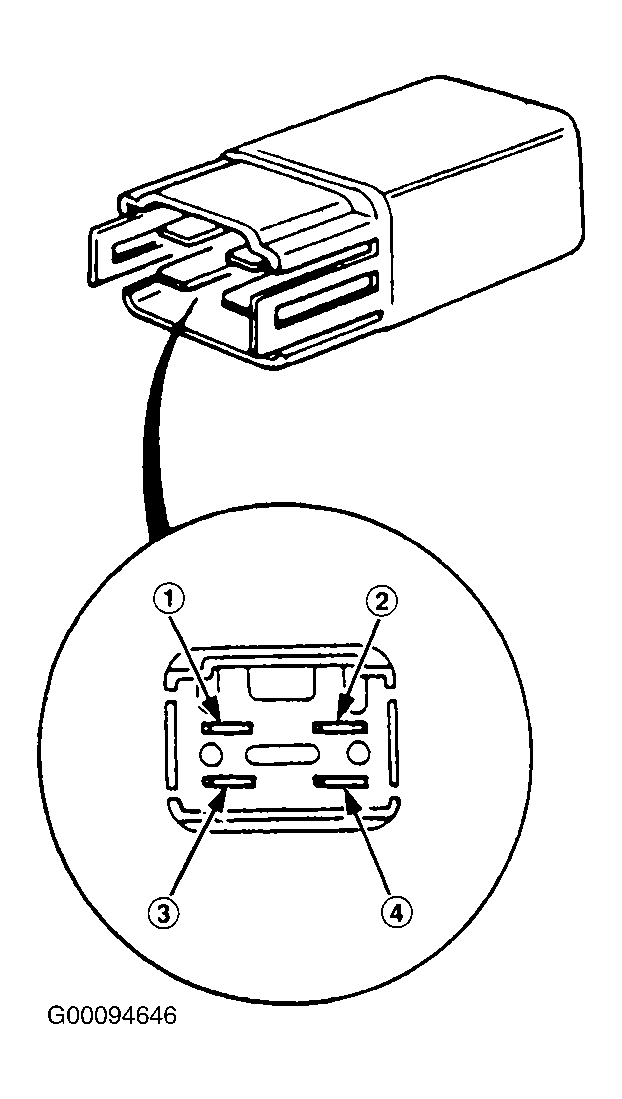

Fig 1: Testing ABS Indicator Relay

Courtesy of AMERICAN HONDA MOTOR CO., INC.
