Caster Adjustment

  1. Loosen the pivot adjuster mounting nuts (self locking nuts) under the compliance pivot. See Fig 1 . Adjust the caster by turning the adjusting cam.
  2. Re-measure and if necessary, adjust the camber and toe-in on the left side first, then the right side.

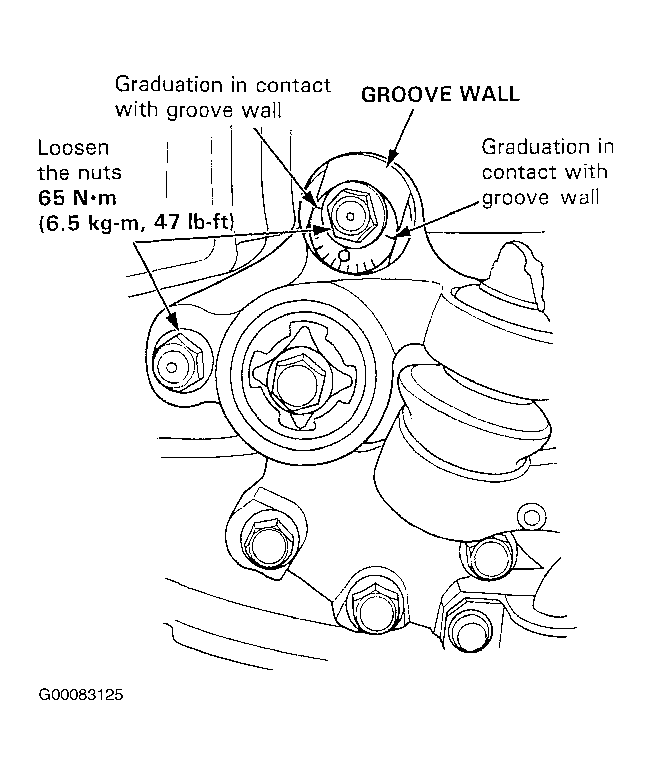

Fig 1: Identifying Caster Adjusting Points
G00083125Courtesy of AMERICAN HONDA MOTOR CO., INC.
