Hatch Handle Replacement

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the hatch trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).

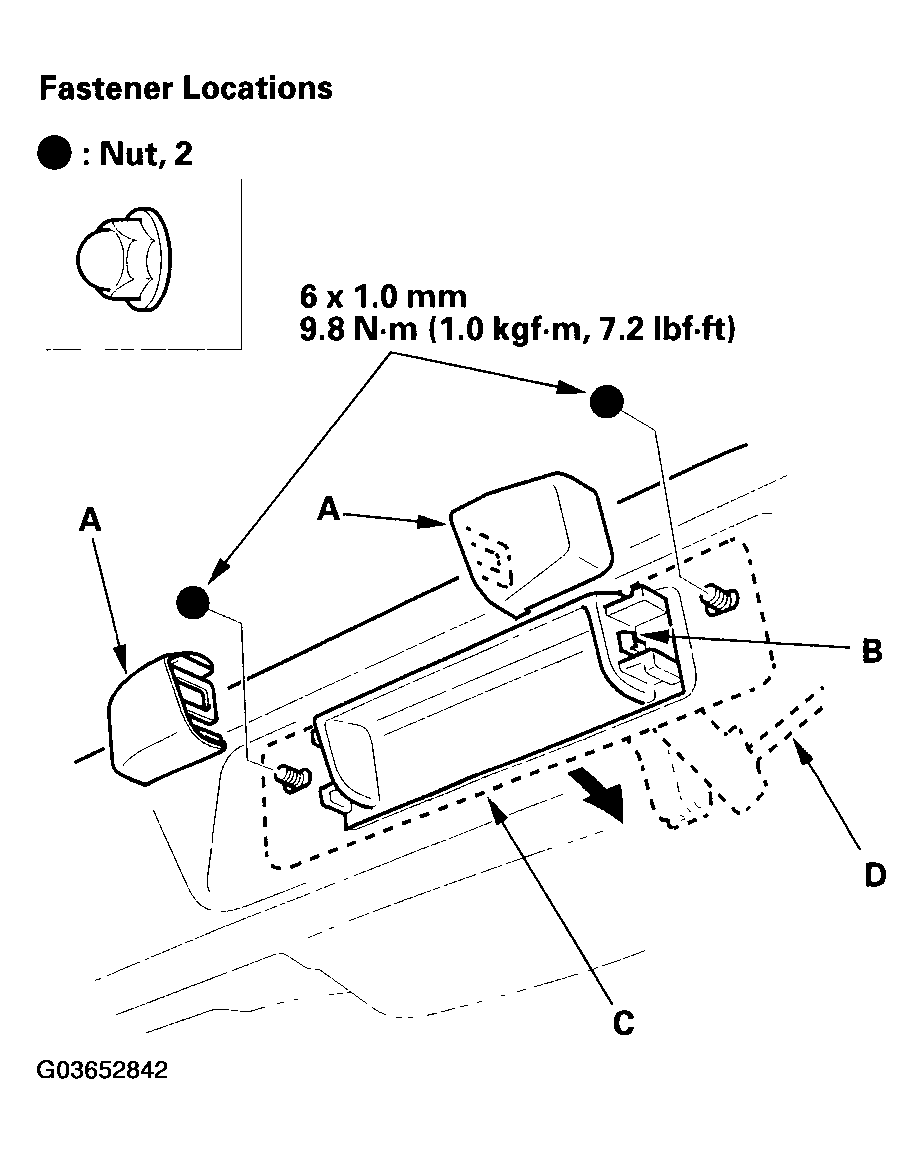

Using a trim tool, gently pry out the hatch handle cover (A) to detach the hook (B) from each side.

Fig 1: Prying Out Hatch Handle Cover To Detach Hook From Each Side And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the nuts, and pull the hatch handle (C) out through the hole in the hatch. Take care not to kink the hatch opener cable (D).
Disconnect the hatch opener cable (A) from the hatch handle (B), then remove the handle.

Fig 2: Disconnecting Hatch Opener Cable From Hatch Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the handle in the reverse order of removal, and note these items:
- Make sure the hatch opener cable is connected securely.
- Make sure the hatch opens properly.
