Under-hood Fuse/Relay Box

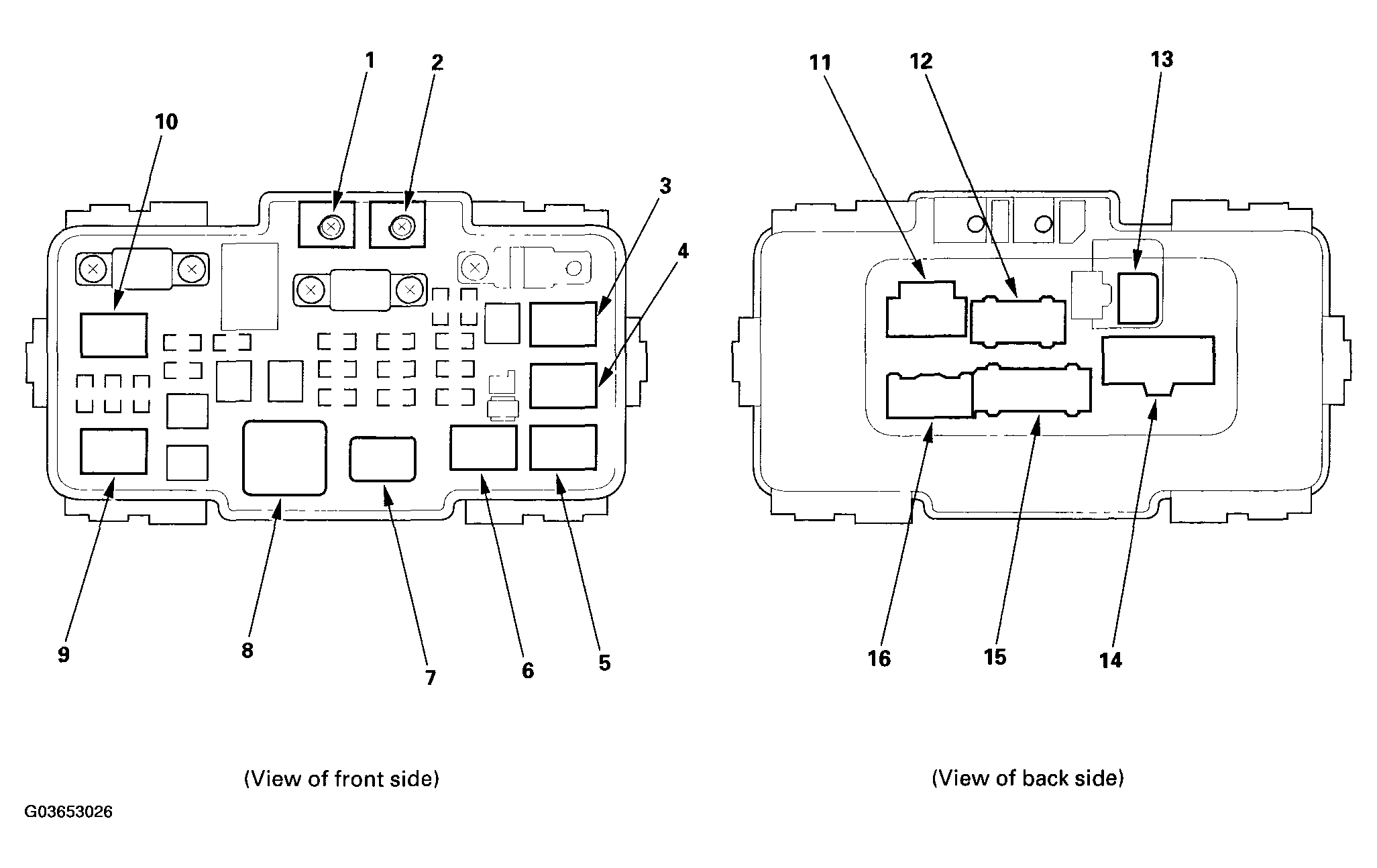

SOCKET AND TERMINAL REFERENCE CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 11 | 2 | Engine compartment wire harness |
| A/C compressor clutch relay | 6 | 4 | |
| AC condenser fan relay | 3 | 4 | |
| B | 16 | 5 | Engine compartment wire harness |
| Blower motor relay | 8 | 4 | |
| C | 12 | 12 | Engine compartment wire harness |
| D | 15 | 14 | Engine compartment wire harness |
| E | 14 | 7 | Engine compartment wire harness |
| ELD unit | 13 | 3 | Engine compartment wire harness |
| Horn relay | 4 | 4 | |
| Headlight relay 1 | 9 | 4 | |
| Headlight relay 2 | 10 | 4 | |
| Radiator fan relay | 5 | 4 | |
| Rear window defogger relay | 7 | 4 | |
| T1 (Battery) | 2 | Starter subharness (see STARTER SUBHARNESS ) | |
| T101 (Alternator) | 1 | Starter subharness (see STARTER SUBHARNESS |
