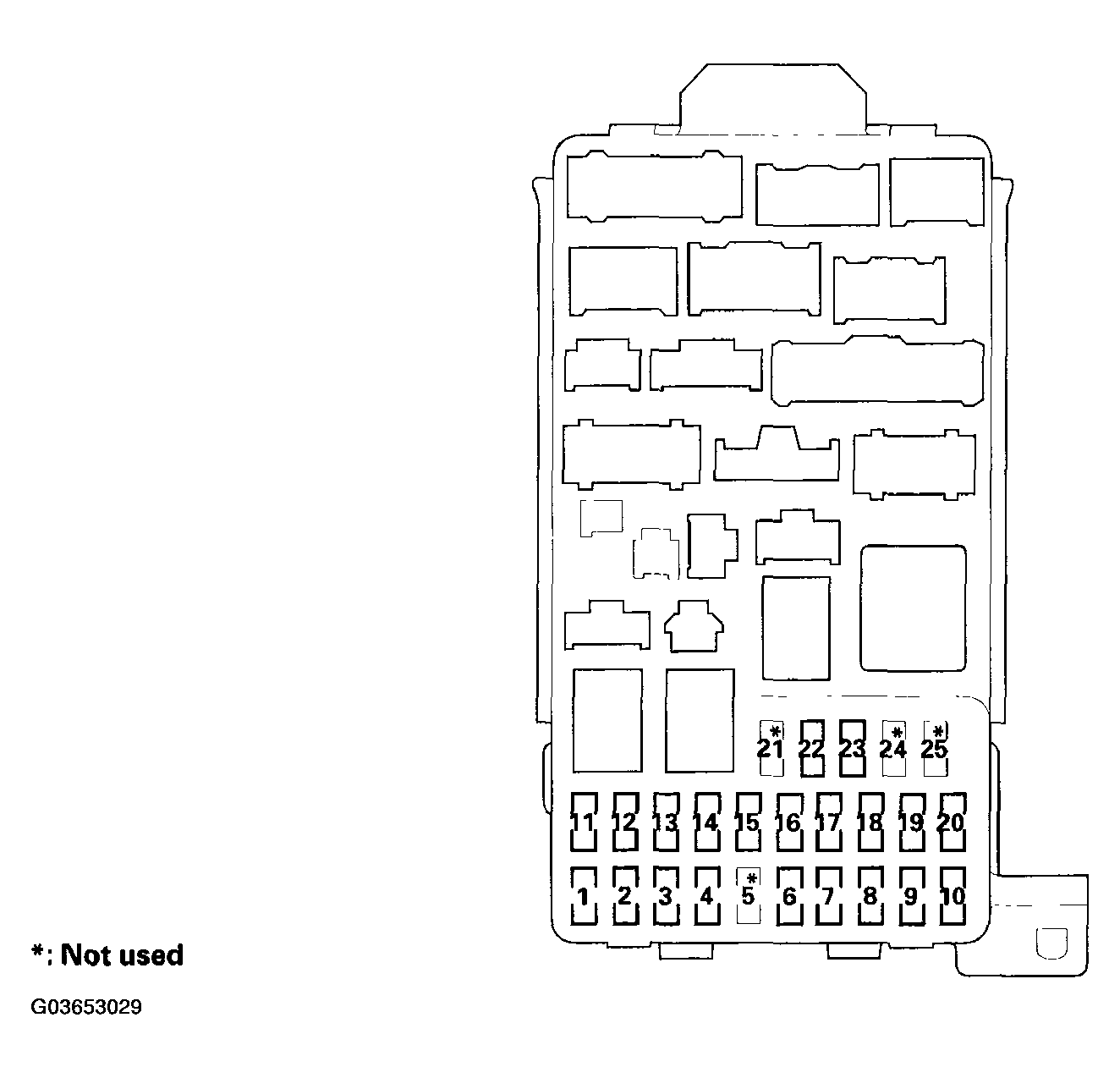

Under-dash Fuse/Relay Box
SOCKET AND TERMINAL REFERENCE CHART
| Fuse Number | Amps | Wire Color | Component(s) or Circuit(s) Protected |
|---|---|---|---|
| 1 | 15 A | BLK/WHT | Ignition coils |
| 2 | 20 A | WHT/RED | A/F sensor, ECM/PCM |
| 3 | 10 A | RED/BLU | Daytime running lights control unit (Canada), Rear accessory power socket (USA) |
| 4 | 10 A | BLK/ORN | Alternator, A/F sensor relay, CMP sensor, Cruise control unit, ELD unit, Evaporative emission (EVAP) bypass solenoid valve, Evaporative emission (EVAP) canister vent shut valve, Evaporative emission (EVAP) canister purge valve, IMT (IMRC) solenoid valve, Reverse lock solenoid (Type S), Secondary HO2S, Vehicle speed sensor (M/T) |
| 5 | - | - | Not used |
| 6 | 7.5 A | YEL/GRN | Moonroof open and close relay, Power window control unit (in the power window master switch), Power window relay |
| 7 | 20 A | GRN | Moonroof motor |
| 8 | 7.5 A | YEL/RED | Audio unit, Shift lock solenoid |
| 9 | 10 A | GRN | OPDS unit, Rear window wiper motor, Rear window washer motor |
| 10 | 7.5 A | YEL | A/T reverse relay, Back-up lights, Gauge assembly, Keyless receiver unit, Multiplex control unit, Security control unit, Shift lock relay |
| 11 | 7.5 A | BLK/ORN | ABS modulator-control unit |
| 12 | 7.5 A | YEL/RED | Daytime running lights control unit (Canada) |
| 13 | 10 A | PNK | SRS unit |
| 14 | 10 A | BLK/YEL | A/C compressor clutch relay, Climate control unit, A/C condenser fan relay, Blower motor relay, Power mirror actuator, Power mirror defogger (Canada), Radiator fan relay, Recirculation control motor, Rear window defogger relay, Seat heater relay (Canada) |
| 15 | 20 A | BLU/RED | Front stereo amplifier (with BOSE sound system), Rear stereo amplifier (with BOSE sound system) |
| 16 | 20 A | RED/BLK | Seat heater (Canada) |
| 17 | 15 A | BLK/YEL | ECM/PCM, Fuel pump, SRS unit |
| 18 | 15 A | YEL/GRN | Front accessory power socket, Rear accessory power socket relay (USA) |
| 19 | 7.5 A | YEL/BLK | Turn signal/hazard relay, Turn signal lights |
| 20 | 20 A | GRN/BLK | Multiplex control unit, Windshield wiper motor, Windshield washer motor |
| 21 | - | - | Not used |
| 22 | 20 A | GRN/BLK | Passenger's window motor |
| 23 | 20 A | GRN/WHT | Driver's window motor |
| 24 | - | - | Not used |
| 25 | - | - | Not used |
