Component Location Index

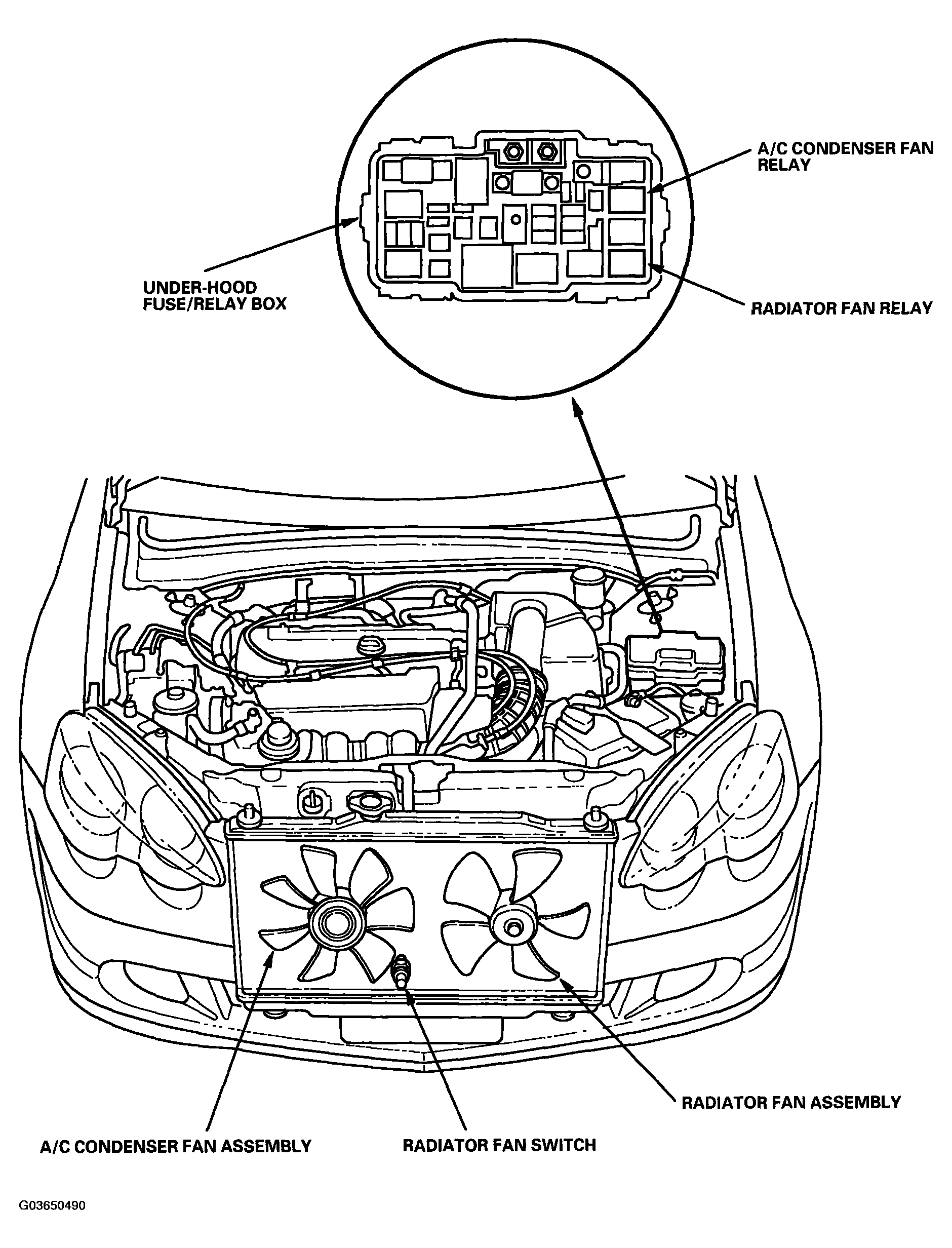

Fig 1: Identifying Fan Controls Component Locations
G03650490Courtesy of AMERICAN HONDA MOTOR CO., INC.
