Repair and Diagnosis
›
Engine Mechanical
›
Mechanical
›
Intake Air System
›
Component Location Index
›
K20A3 engine
K20A3 engine

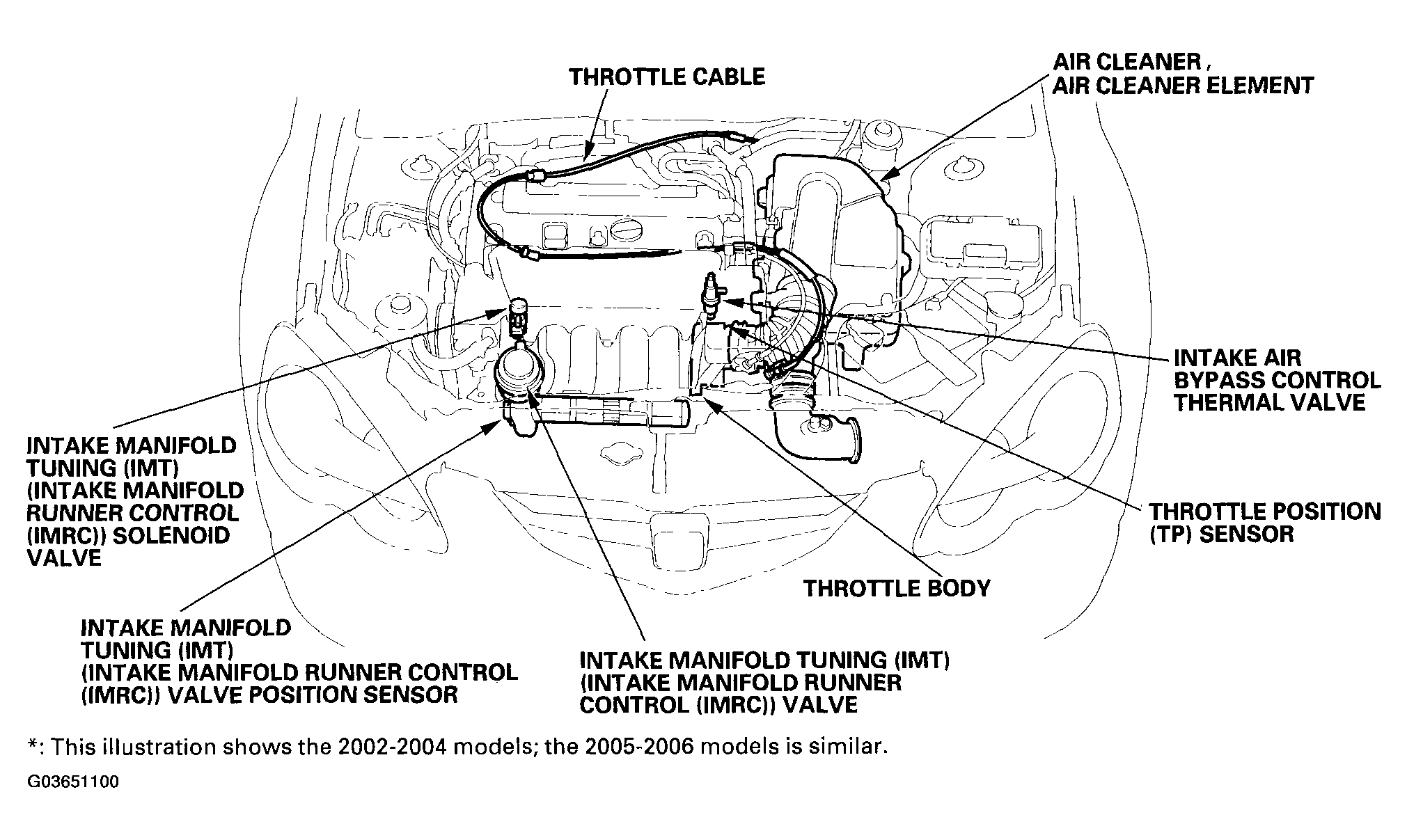

Fig 1: Locating Intake Air System (K20A3 Engines)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
