Acura
›
2003
›
RSX Base, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Mechanical
›
Intake Air System
›
Throttle Body Disassembly/Reassembly
›
K20A3 engine
K20A3 engine

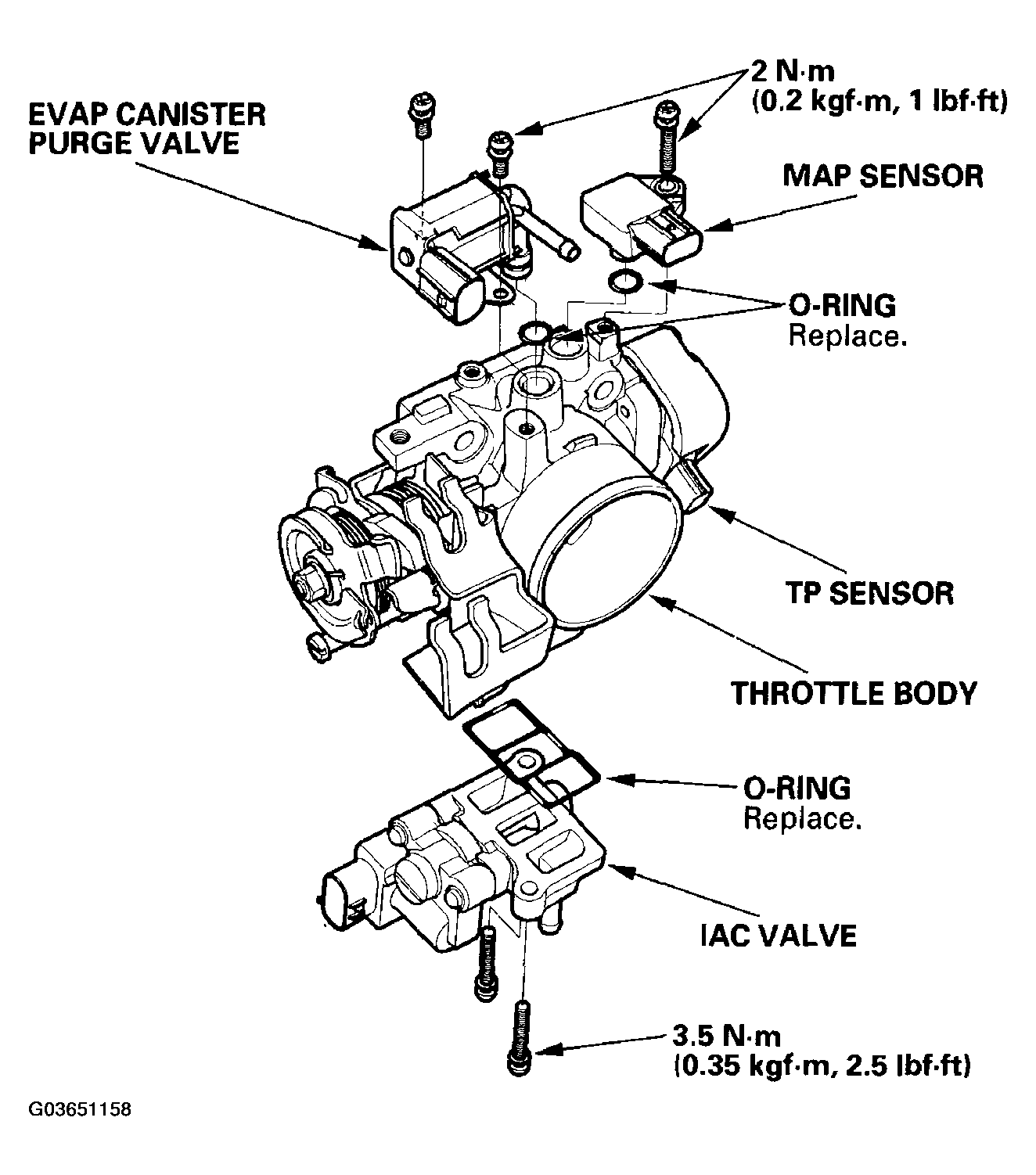

Fig 1: Disassembling Throttle Body And Torque Specifications (K20A3 Engines)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
