2005-2006 Models
2005-2006 Models

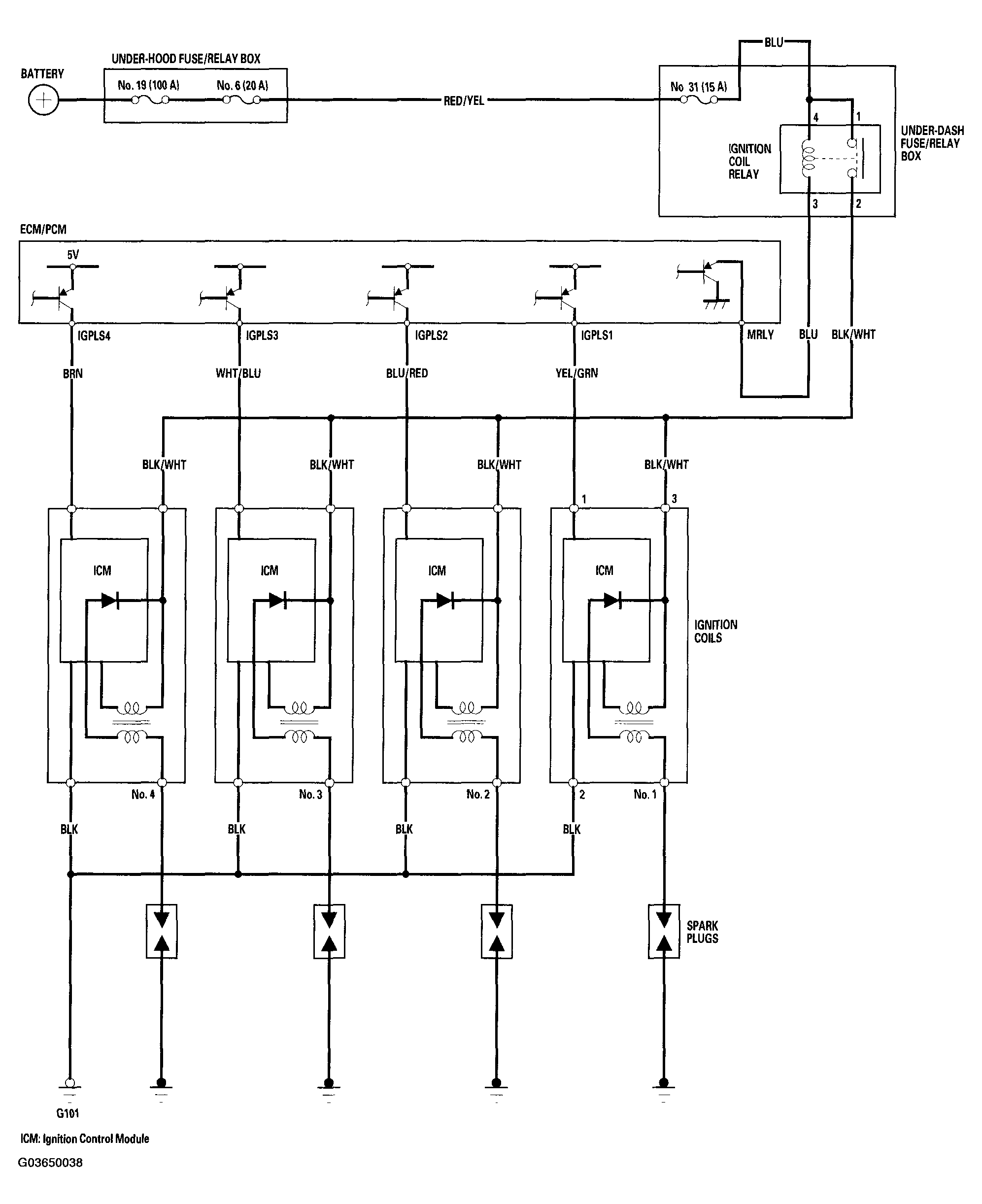

Fig 1: Circuit Diagram Ignition System - 2005-2006 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
