2002-2004 models

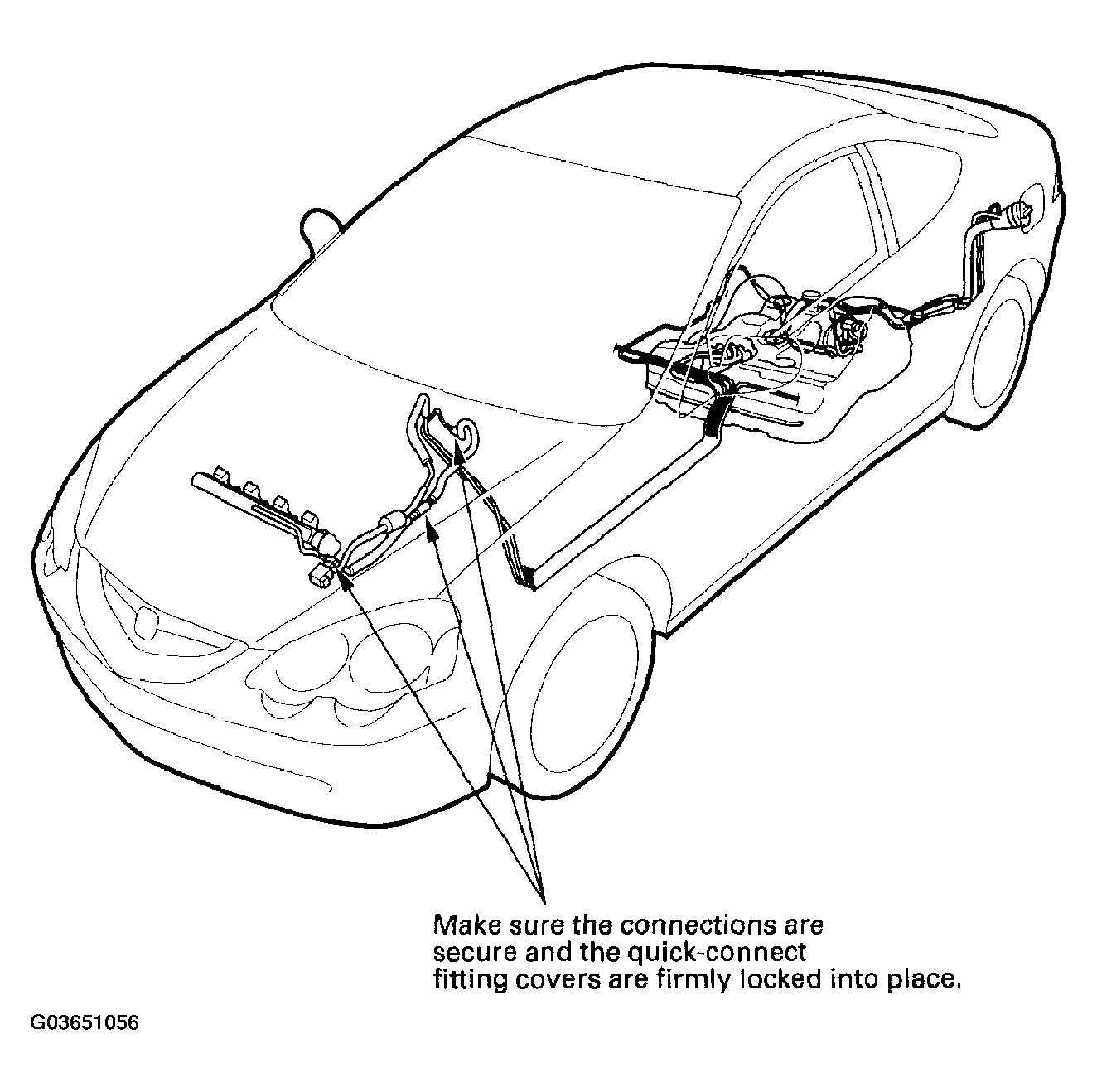

Fig 1: Locating Fuel Line (2002-2004 Models)
G03651056Courtesy of AMERICAN HONDA MOTOR CO., INC.


Check all clamps and retighten if necessary.

"UTRIF": Do not disconnect the hose from the pipe at these joints.

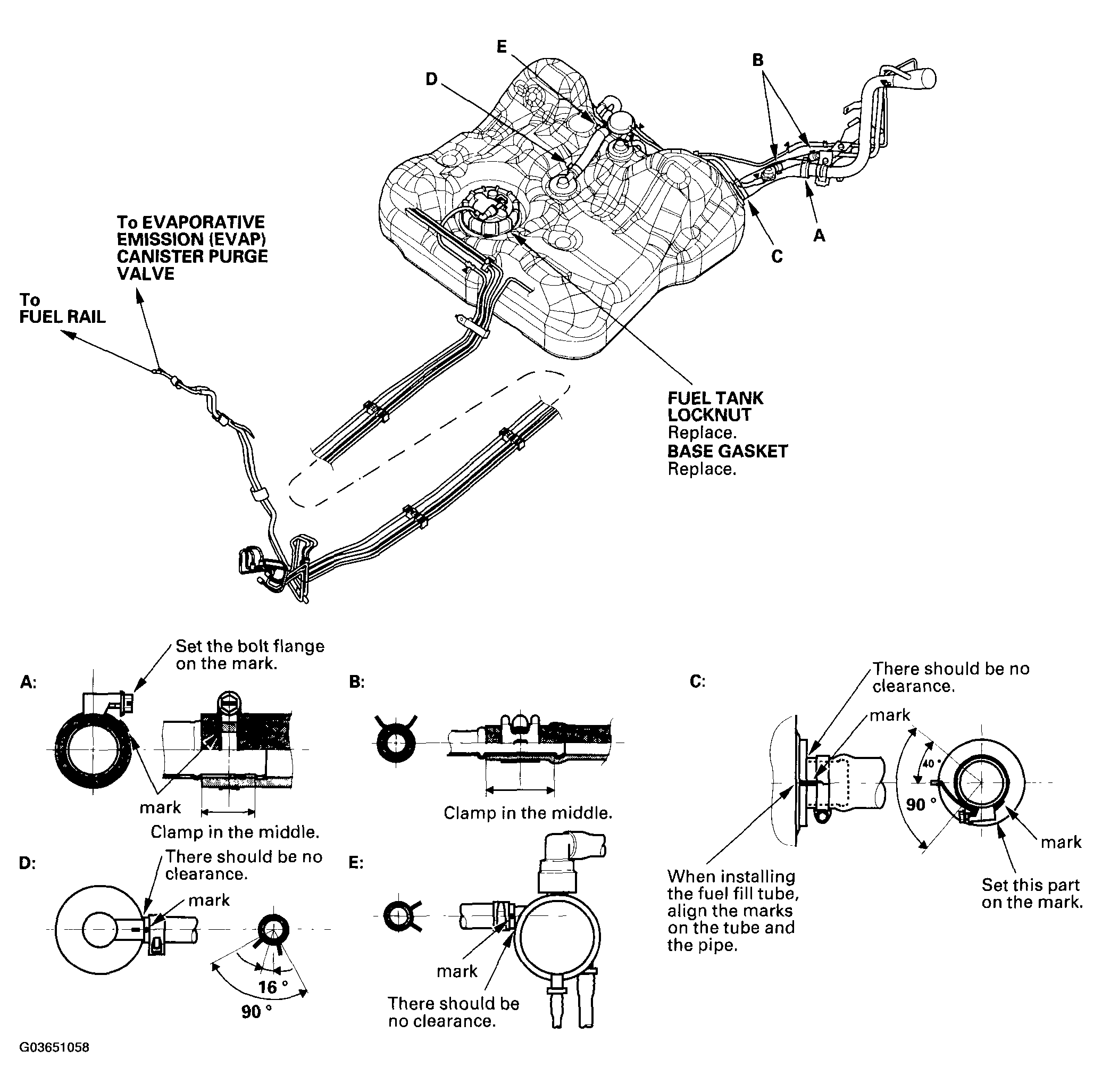

Fig 1: Locating Fuel Line (2002-2004 Models)
G03651058Courtesy of AMERICAN HONDA MOTOR CO., INC.
