K20A3 engine-2005-2006 models

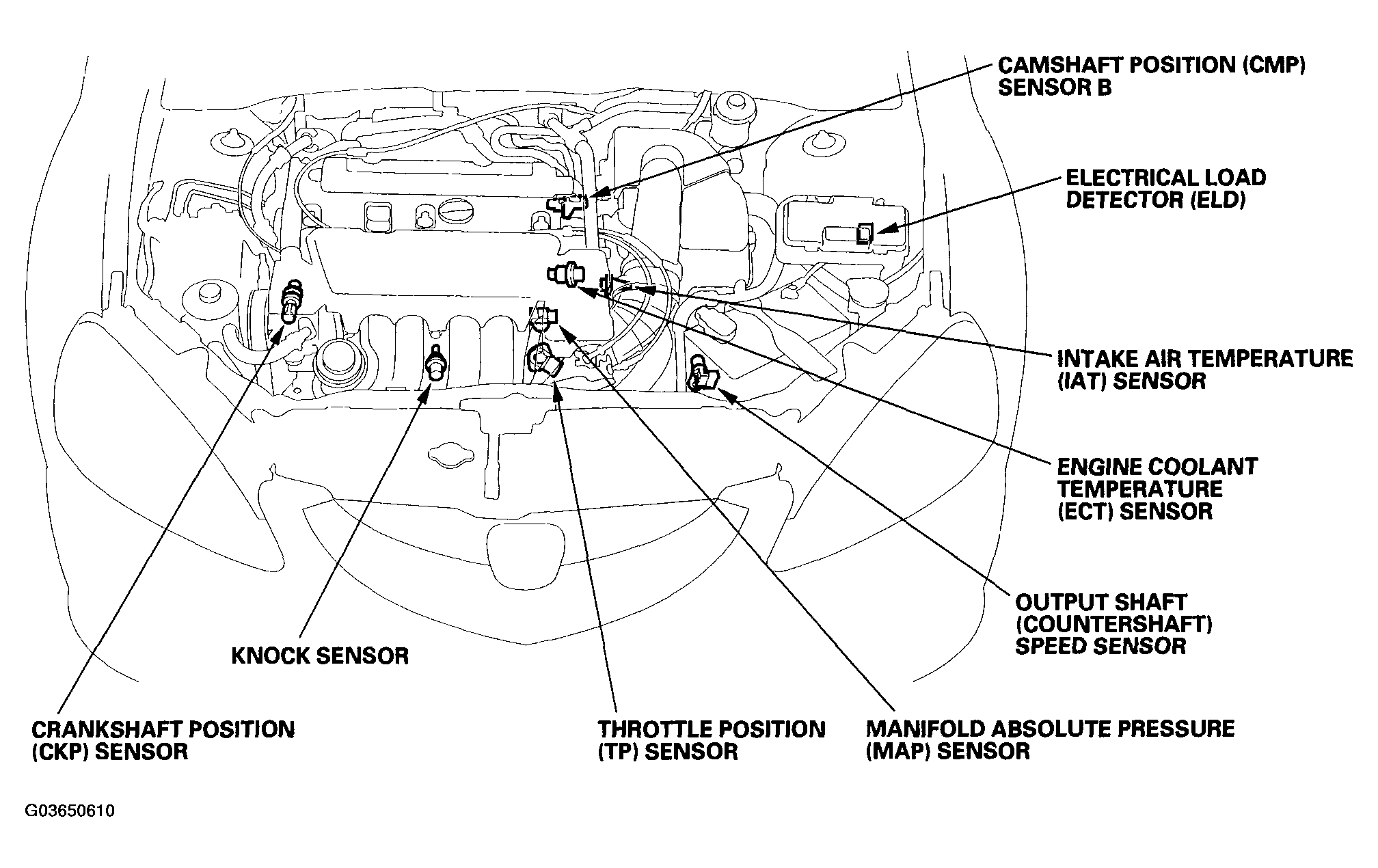

Fig 1: Identifying PGM - FI System Component Location Index (K20A3 Engine-2005-2006 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

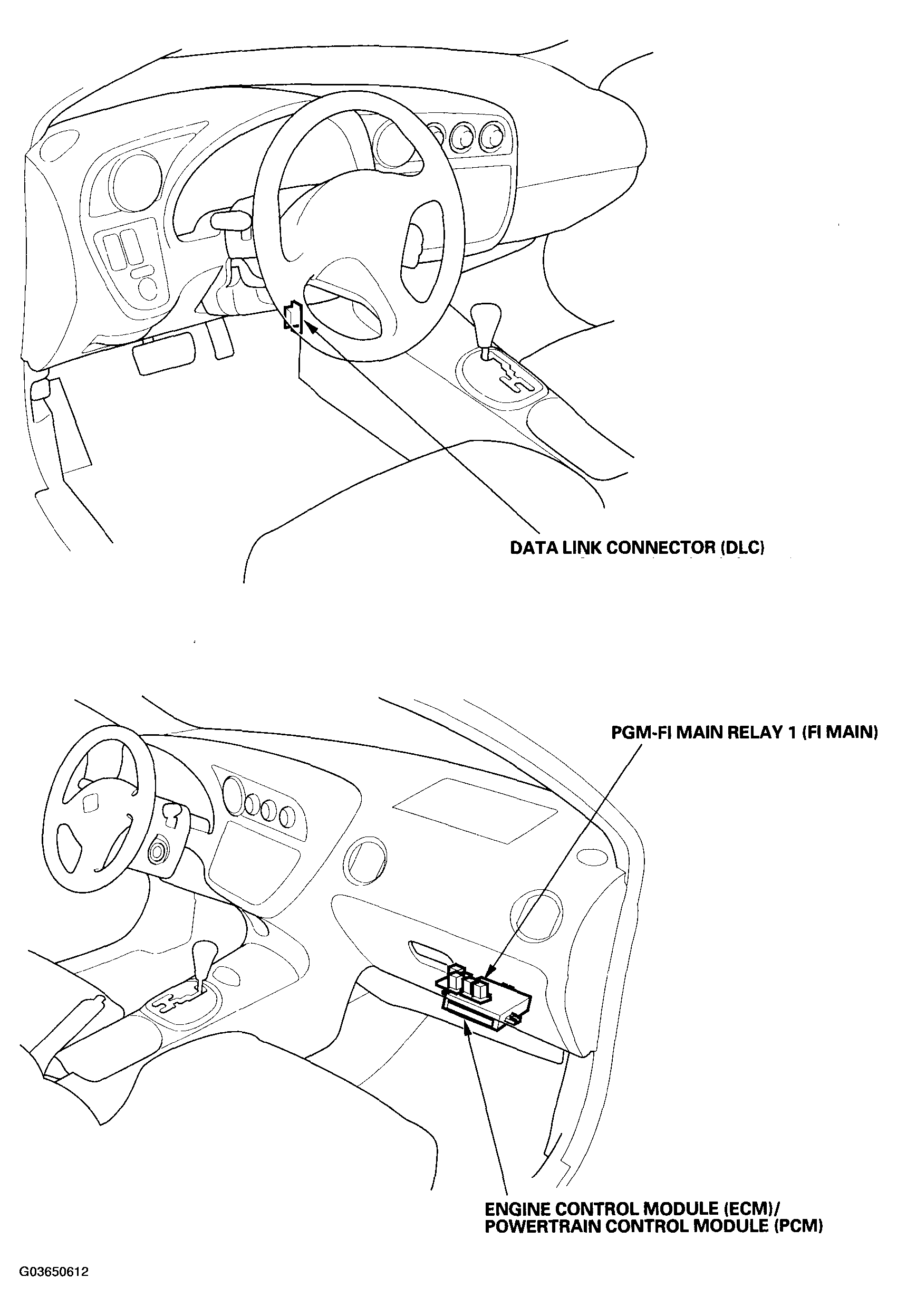

Fig 2: Identifying PGM - FI System Component Location Index

Courtesy of AMERICAN HONDA MOTOR CO., INC.

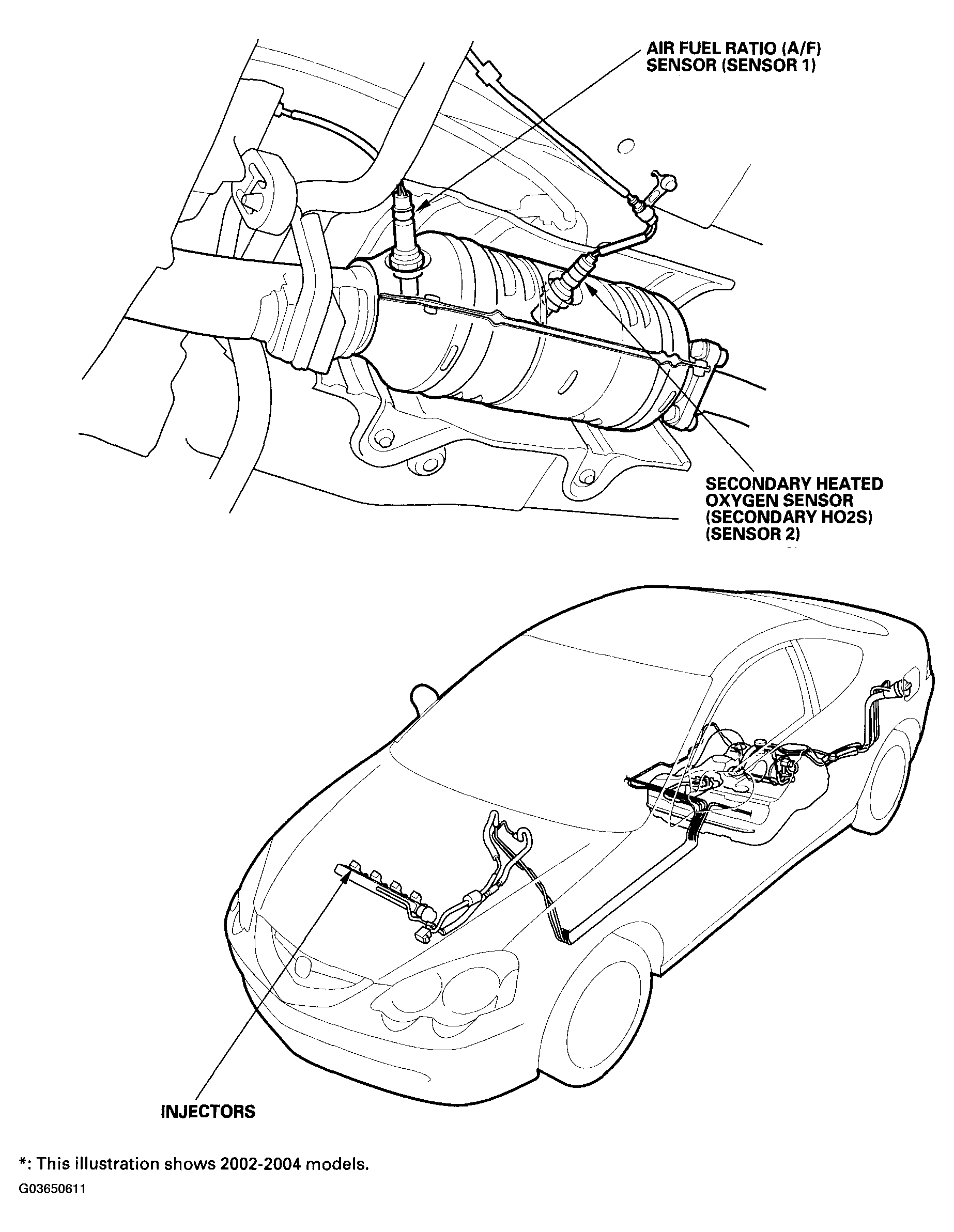

Fig 3: Locating PGM - FI System Component Location Index

Courtesy of AMERICAN HONDA MOTOR CO., INC.
