A/T Interlock System
›
Circuit Diagram
›
2002-2004 Models
2002-2004 Models

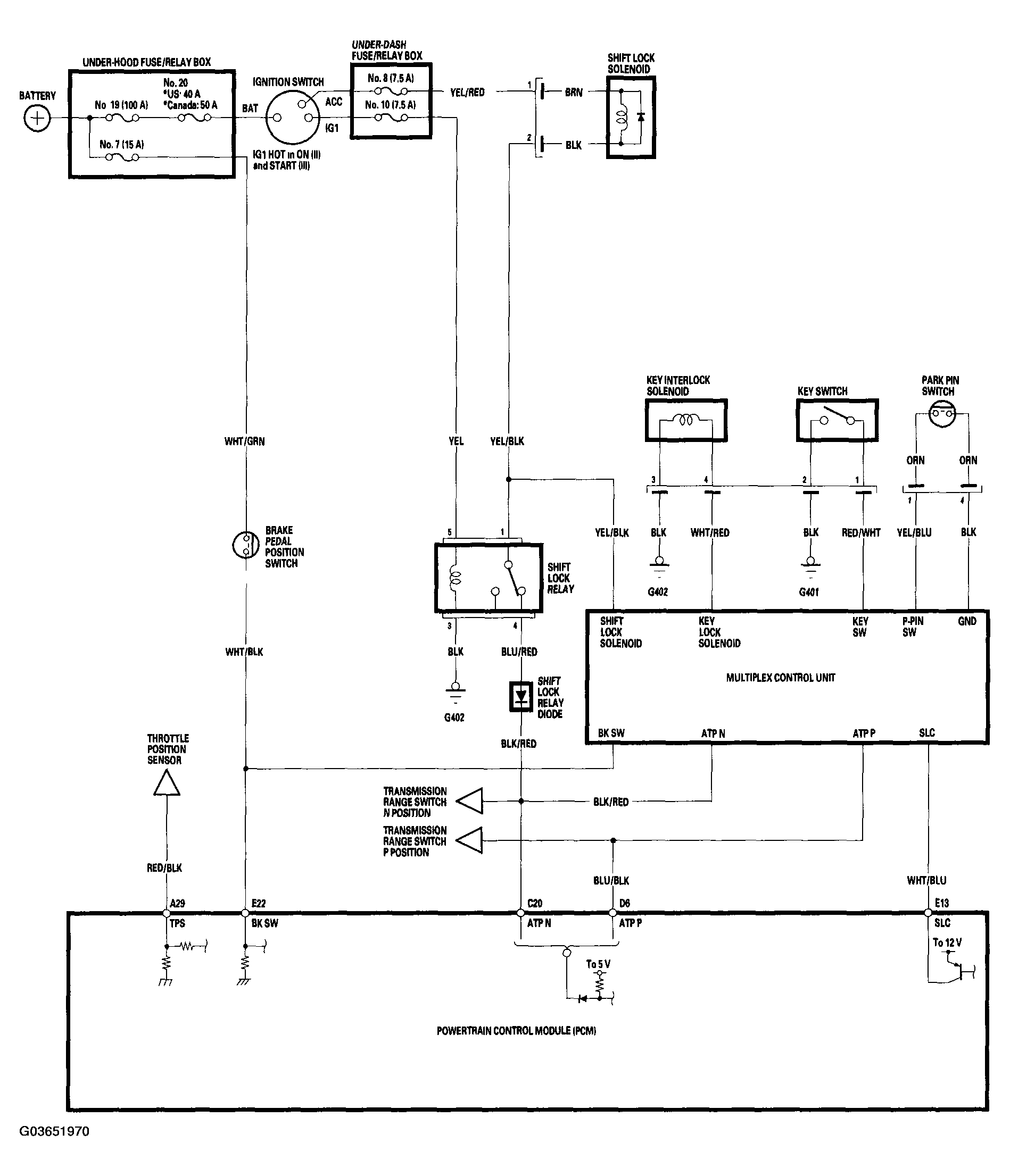

Fig 1: A/T Interlock System Circuit Diagram (2002-2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
