Shift Lever Removal

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Shift the transmission into the N position.
  3. Remove the nut securing the shift cable end, then separate the cable end from the shift lever.

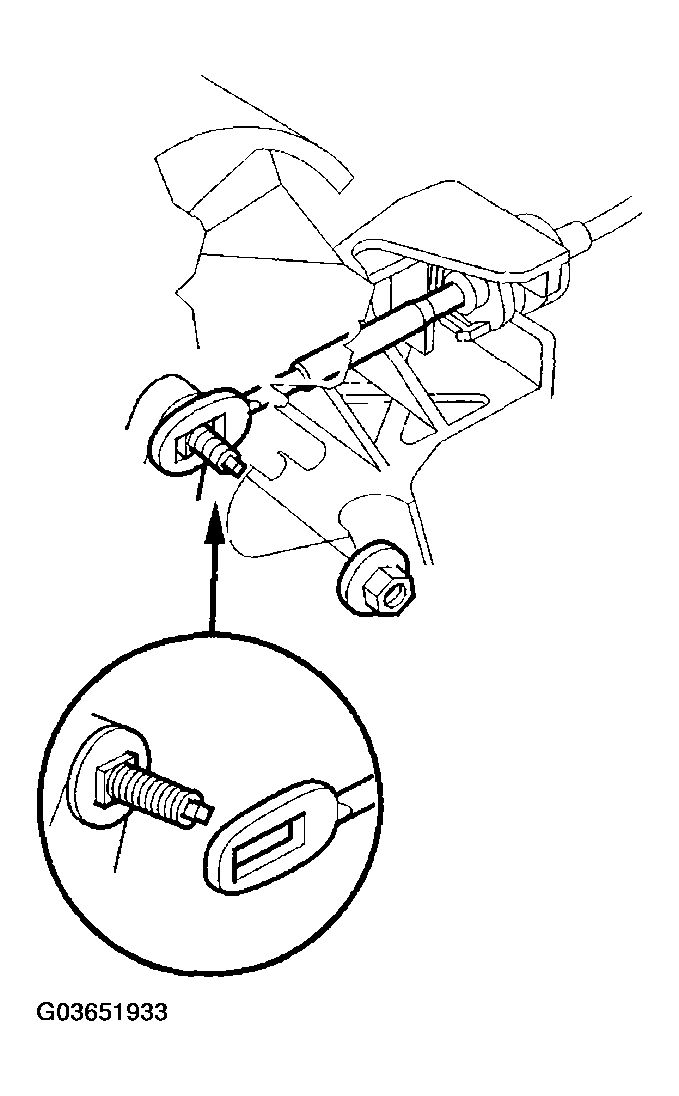

    Fig 1: Removing Nut Securing Shift Cable
    G03651933Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening of the shift lever bracket base (D). Then slide the holder to remove the shift cable from the shift lever bracket base (D). Do not remove the shift cable by twisting the shift cable guide (E).

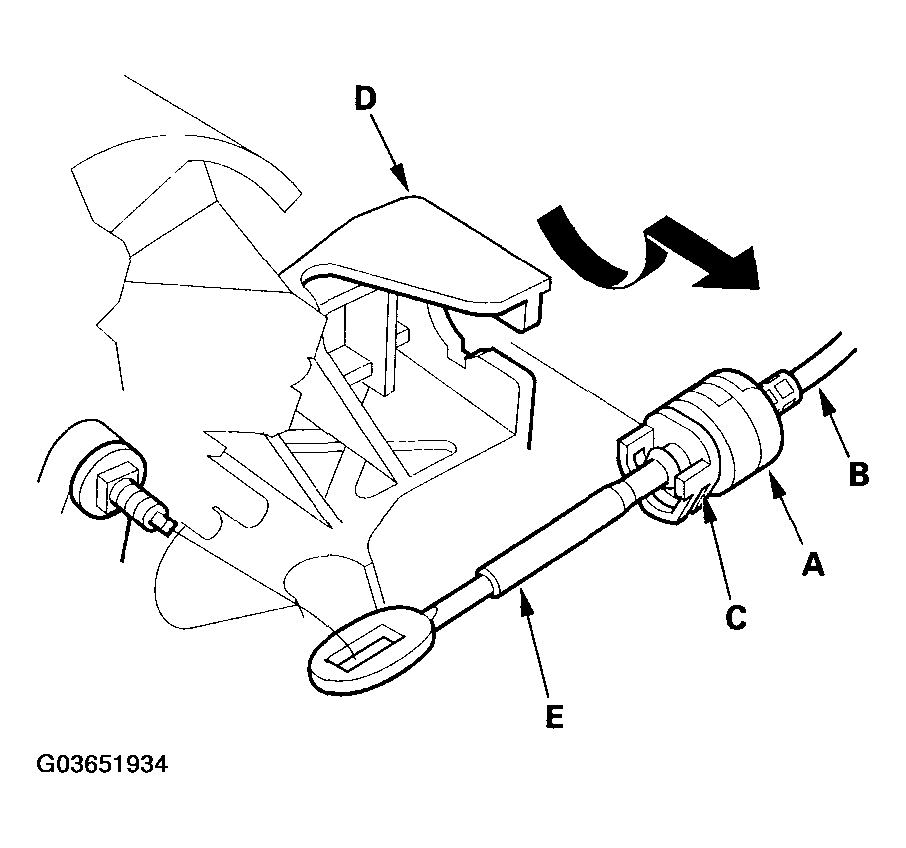

    Fig 2: Rotating Socket Holder On Shift Cable
    G03651934Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect transmission gear selection switch/park pin switch connector (A) and shift lock solenoid connector (B).

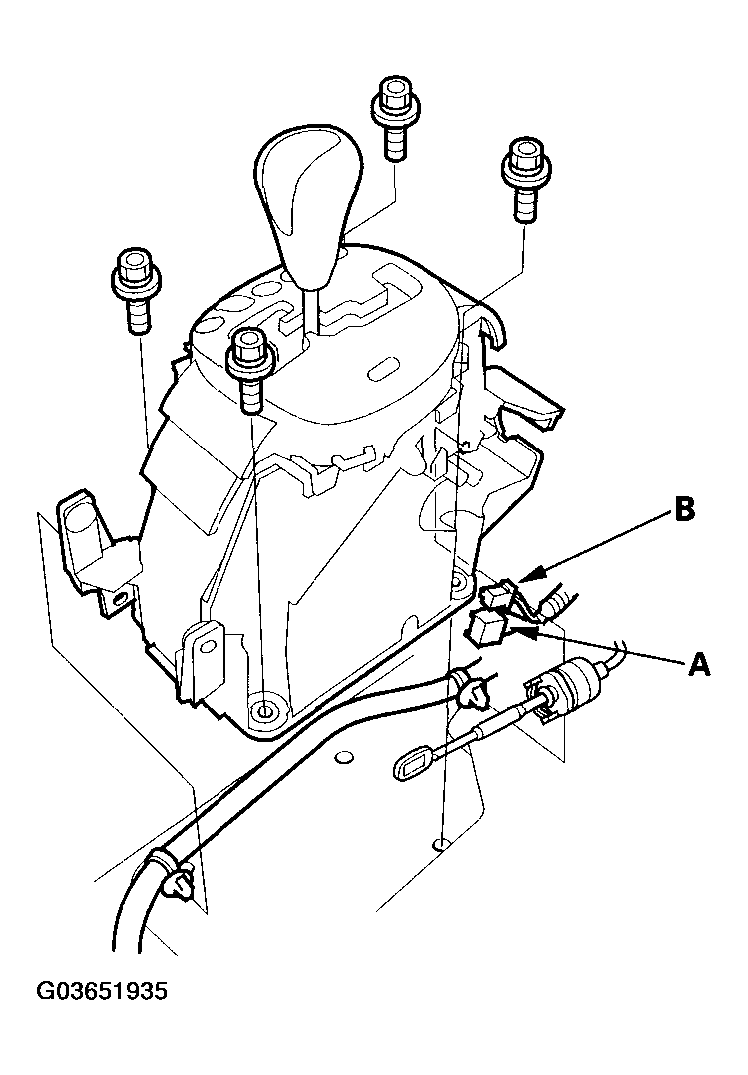

    Fig 3: Disconnecting Transmission Gear Selection Switch/Park Pin Switch Connector
    G03651935Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the shift lever assembly.
