Transmission Gear Selection Switch Replacement

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect transmission gear selection switch/park pin switch connector (A), then remove it from the shift lever bracket base.

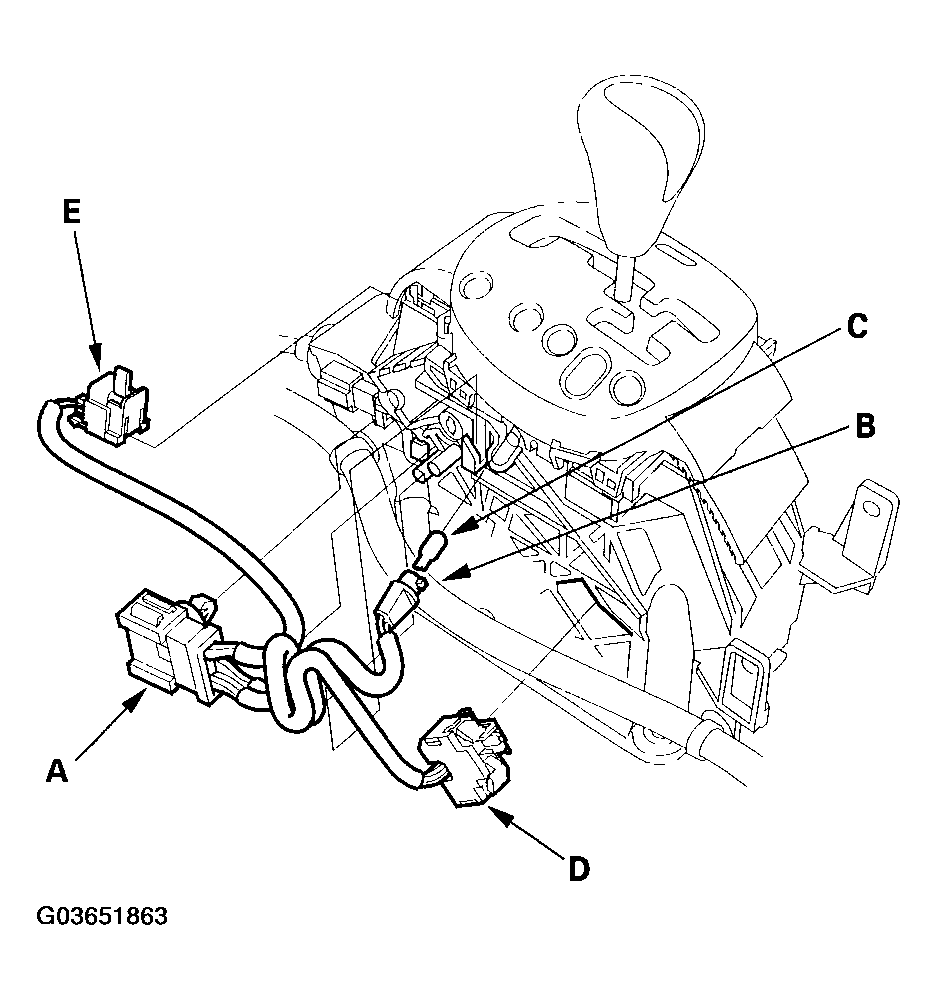

Fig 1: Disconnecting Transmission Gear Selection Switch/Park Pin Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the A/T gear position indicator panel light socket (B), then remove the indicator light bulb (C) from the socket.
Remove the transmission gear selection switch (D) and park pin switch (E), and install the new switches and connector.
Install the A/T gear position indicator panel light bulb in the bulb socket, then install the socket in the A/T gear position indicator panel.
Connect transmission gear selection switch/park pin switch connector.
Reinstall the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
