Exploded View

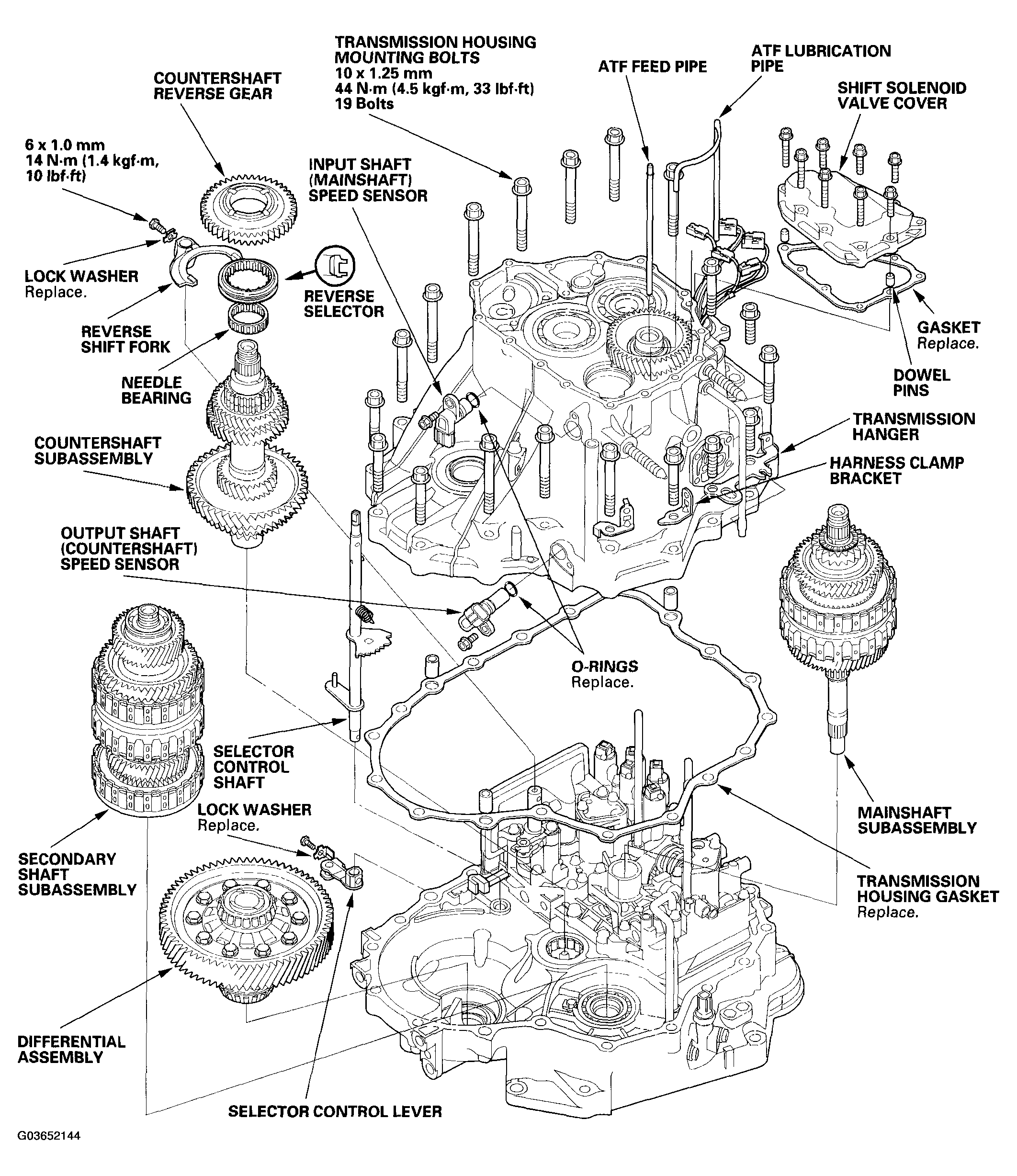

Fig 1: Exploded View Of Shaft Assembly And Housing With Specified Torques
G03652144Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the EXPLODED VIEW  as needed during the following procedure.
  1. Install the differential assembly in the torque converter housing.
  2. Assemble the mainshaft, countershaft, and secondary shaft.

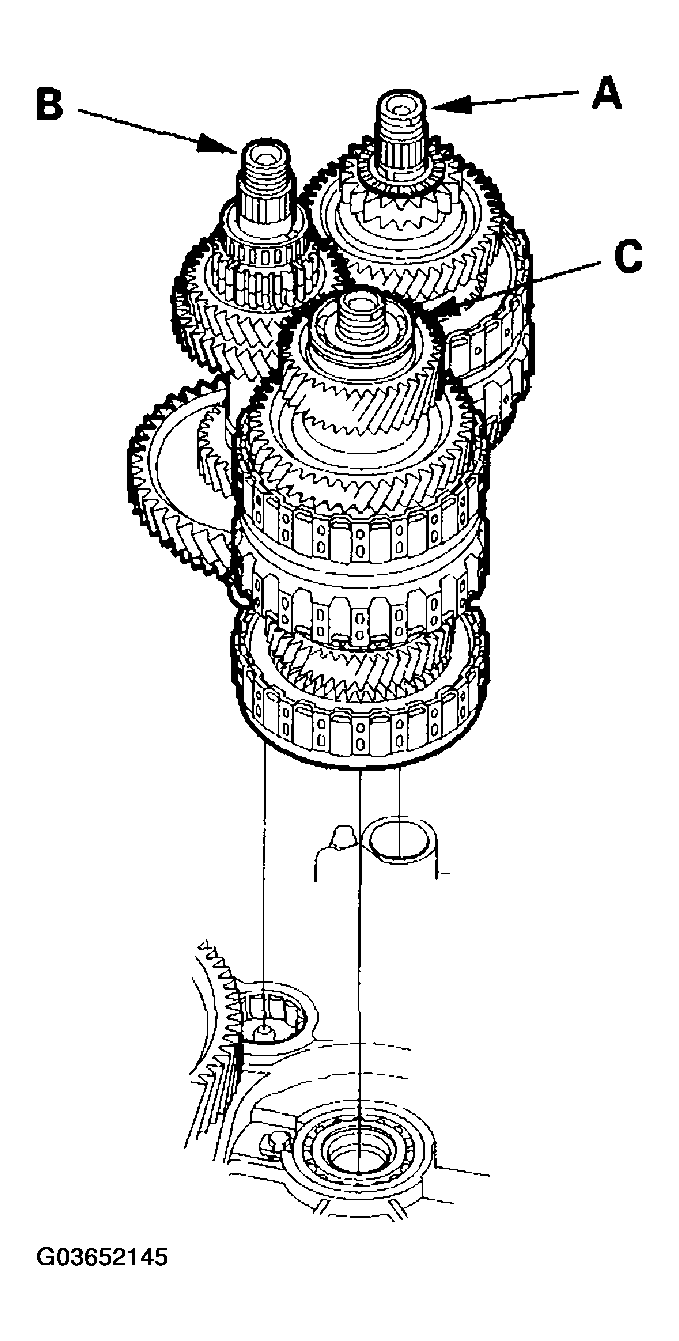

  3. Join the mainshaft subassembly (A), countershaft subassembly (B), and secondary shaft subassembly (C) together, and install them in the torque converter housing.
    Fig 2: Installing Mainshaft Subassembly, Countershaft Subassembly And Secondary Shaft Subassembly into Torque Converter Housing
    G03652145Courtesy of AMERICAN HONDA MOTOR CO., INC.

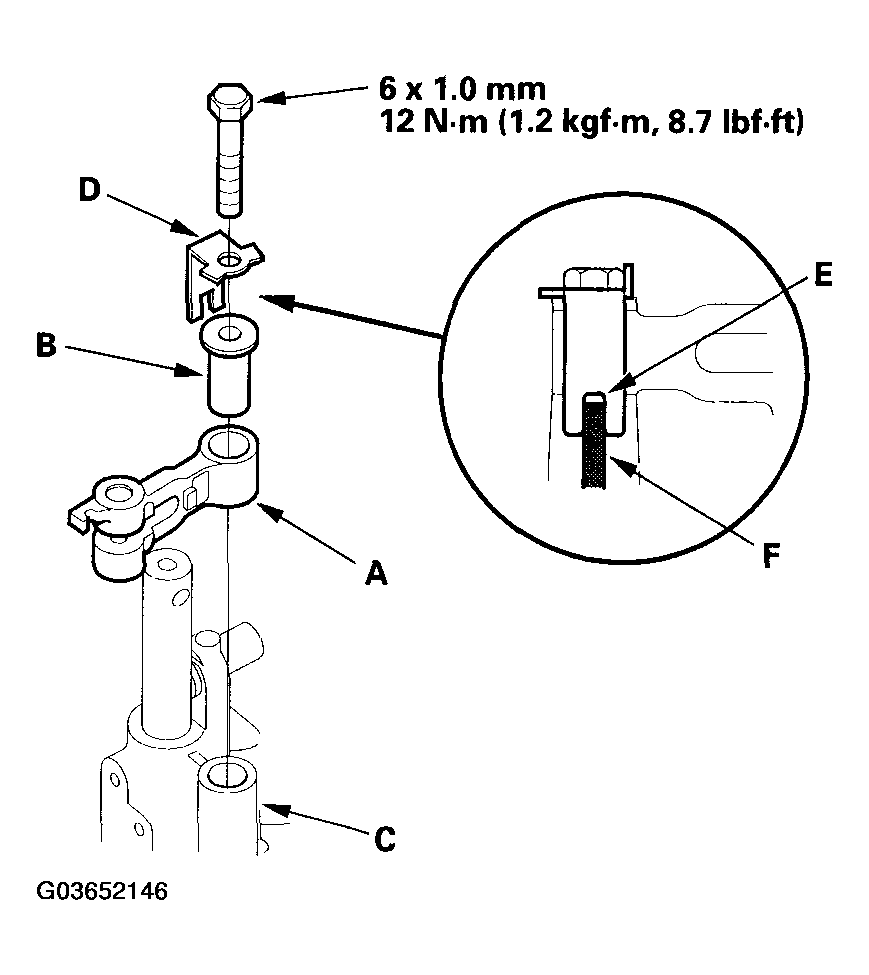

  4. If the detent arm was removed, install the detent arm (A) with arm collar (B) on the servo body (C), and install the new lock washer (D) by aligning its cutout (E) with the projection (F) of the servo body. Install and tighten the bolt, then bend the lock tab of the lock washer against the bolt head.
    Fig 3: Installing Detent Arm With Arm Collar And New Lock Washer With Specified Torques
    G03652146Courtesy of AMERICAN HONDA MOTOR CO., INC.

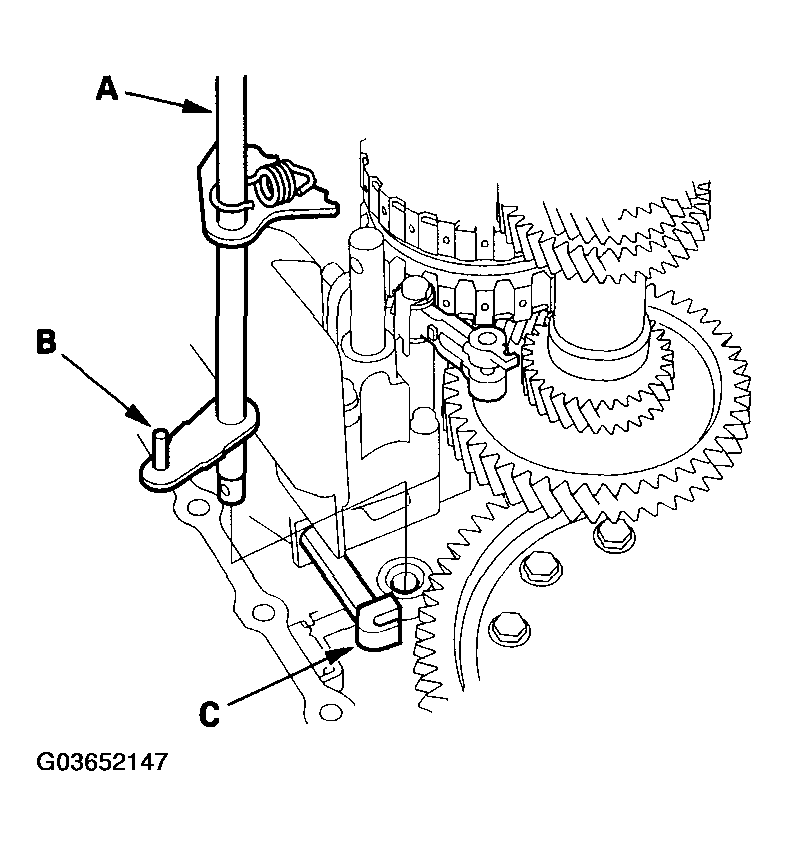

  5. Install the selector control shaft (A) in the torque converter housing aligning the manual valve lever pin (B) on the control shaft with the guide of the manual valve (C). Pull the manual valve gently when aligning the manual valve with the selector control shaft.
    Fig 4: Installing Selector Control Shaft
    G03652147Courtesy of AMERICAN HONDA MOTOR CO., INC.

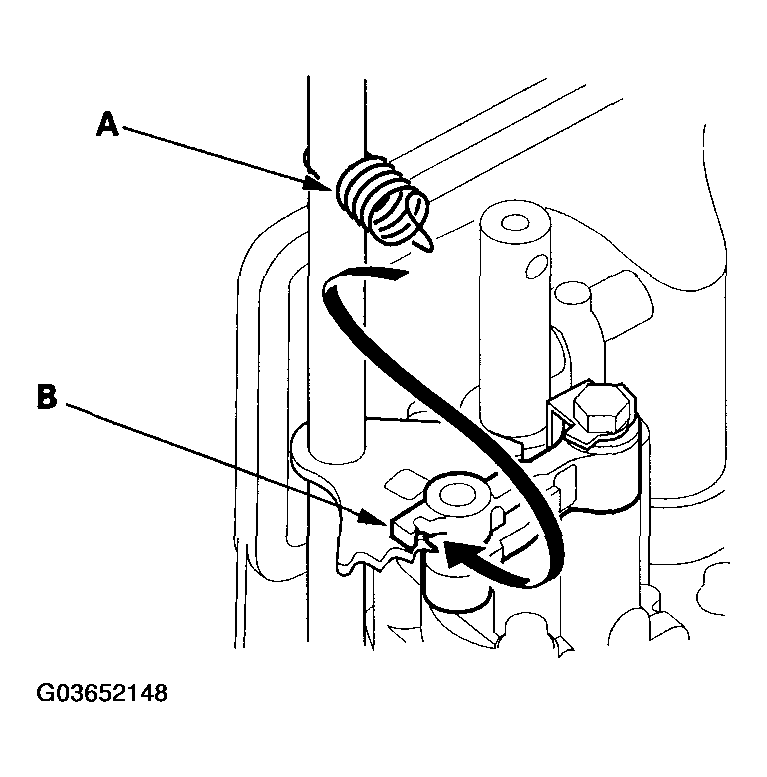

  6. Hook the detent arm spring (A) to the detent arm (B).
    Fig 5: Hooking Detent Arm Spring To Detent Arm
    G03652148Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Turn the shift fork shaft (A) so the large chamfered hole (B) is facing the fork bolt hole (C) of the shift fork (D).
    Fig 6: Installing Shift Fork and Torque Specifications
    G03652149Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the shift fork and reverse selector together on the shift fork shaft and countershaft. Secure the shift fork to the shift fork shaft with the lock bolt and a new lock washer (E), then bend the lock tab of the lock washer against the bolt head.
  9. Install the needle bearing and countershaft reverse gear on the countershaft.
  10. Install the reverse idler gear in the transmission housing (see REVERSE IDLER GEAR REMOVAL AND INSTALLATION  ).
  11. Install the idler gear shaft (see IDLER GEAR SHAFT REMOVAL AND INSTALLATION  ), if it was removed.
  12. Install the three dowel pins and a new gasket on the torque converter housing.
  13. Align the spring pin (A) on the selector control shaft (B) with the transmission housing groove (C) by turning the control shaft.
    NOTE: Do not squeeze the end (D) of the selector control shaft tips together when turning the shaft. If the tips are squeezed together, it will cause a faulty signal or position due to the play between the selector control shaft and the switch.
    Fig 7: Aligning Spring Pin On Selector Control Shaft
    G03652150Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Place the transmission housing on the torque converter housing. Do not install the mainshaft and countershaft speed sensors before installing the transmission housing on the torque converter housing.
  15. While expanding the snap ring of the secondary shaft bearing using the snap ring pliers, push the transmission housing down to start the secondary shaft bearing through the snap ring. Then release the pliers, and push down the housing until it bottoms and the snap ring snaps in place in the secondary shaft bearing snap ring groove.
  16. Verify that the secondary shaft bearing snap ring (A) is seated in the bearing and housing groove, and that the ring end gap (B) is correct.
    Fig 8: Identifying Gap Of Ring End
    G03652151Courtesy of AMERICAN HONDA MOTOR CO., INC.

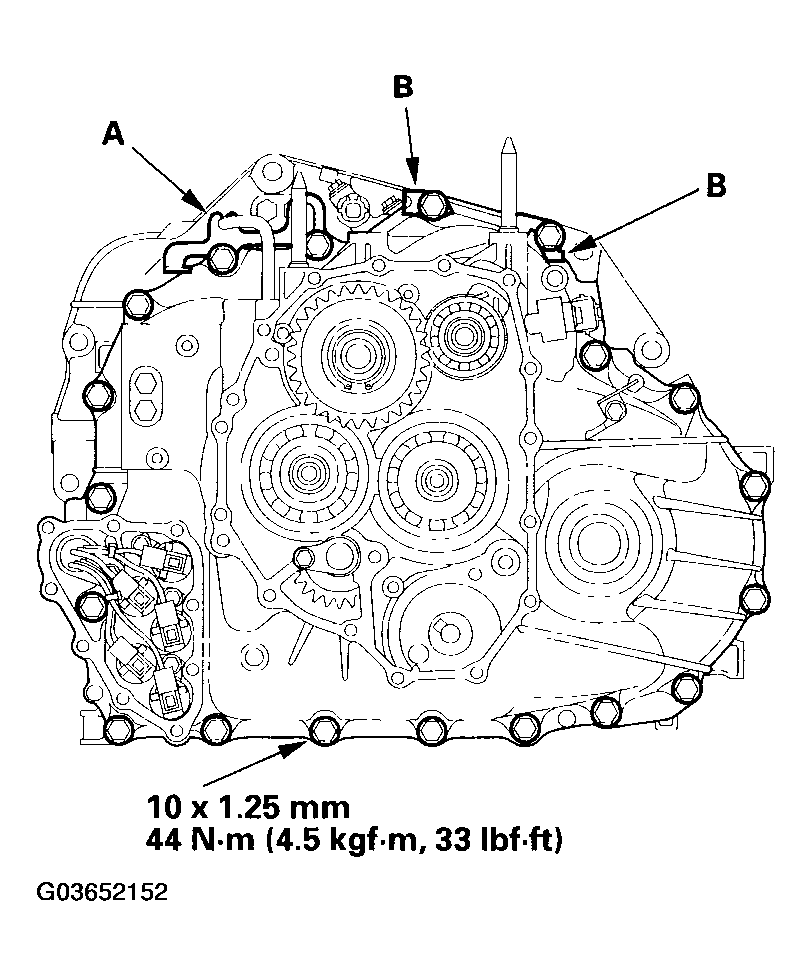

  17. Install the transmission housing mounting bolts along with the transmission hanger (A) and harness clamp brackets (B), tighten the 19 bolts in two or three steps in a criss-cross pattern.
    Fig 9: Installing Transmission Housing Mounting Bolts And Torque Specifications
    G03652152Courtesy of AMERICAN HONDA MOTOR CO., INC.

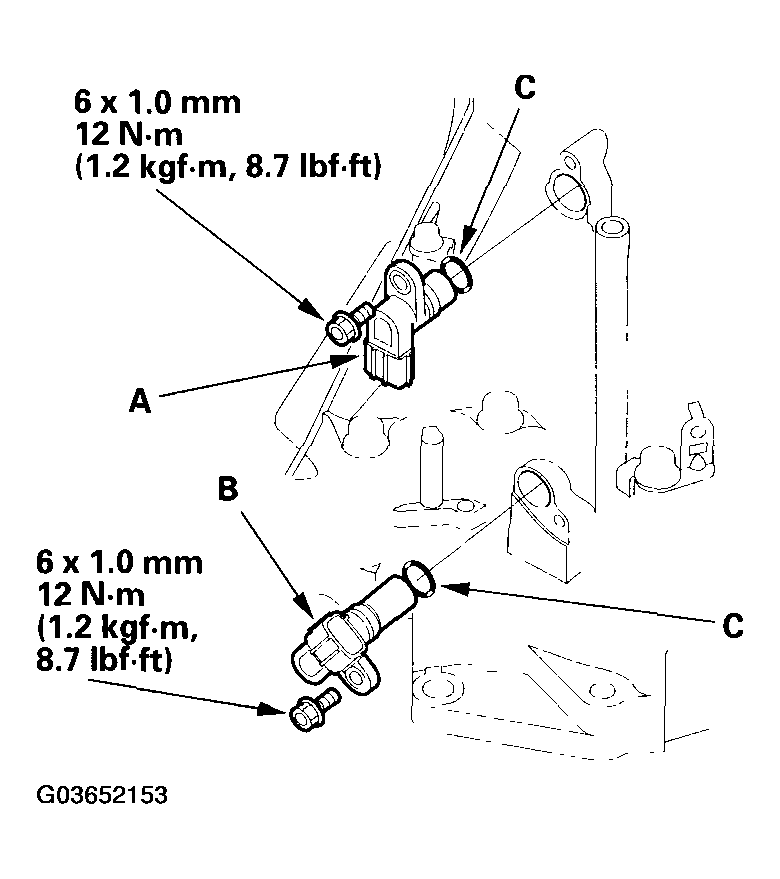

  18. Install the input shaft (mainshaft) speed sensor (A) and output shaft (countershaft) speed sensor (B) with new O-rings (C).
    Fig 10: Installing Input Shaft (Mainshaft) Speed Sensor And Output Shaft Speed Sensor With Specified Torques
    G03652153Courtesy of AMERICAN HONDA MOTOR CO., INC.

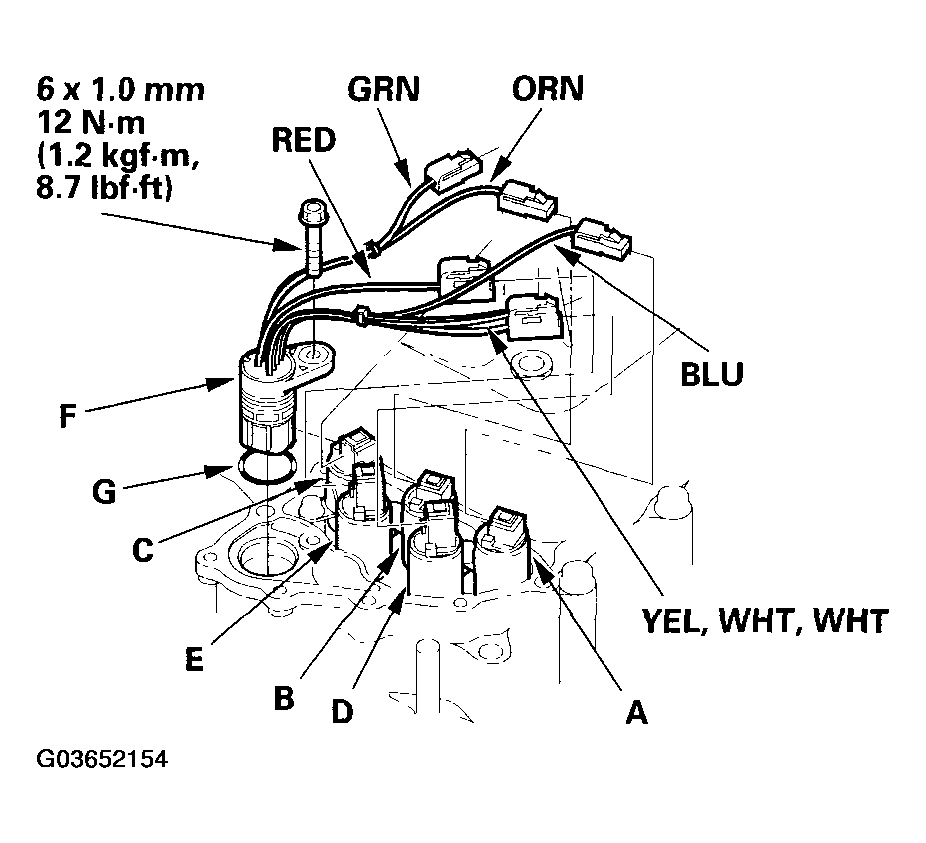

  19. Install the shift solenoid harness connector (F) in the transmission housing with the new O-ring (G).
    Fig 11: Installing Shift Solenoid Harness Connector And Torque Specifications
    G03652154Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Connect the connector (YEL, WHT, and WHT wires) to the shift solenoid valve D.
  21. Connect the connectors to respective solenoid valves:
    • BLU wire to shift solenoid valve A.
    • ORN wire to shift solenoid valve B.
    • GRN wire to shift solenoid valve C.
    • RED wire to shift solenoid valve E.

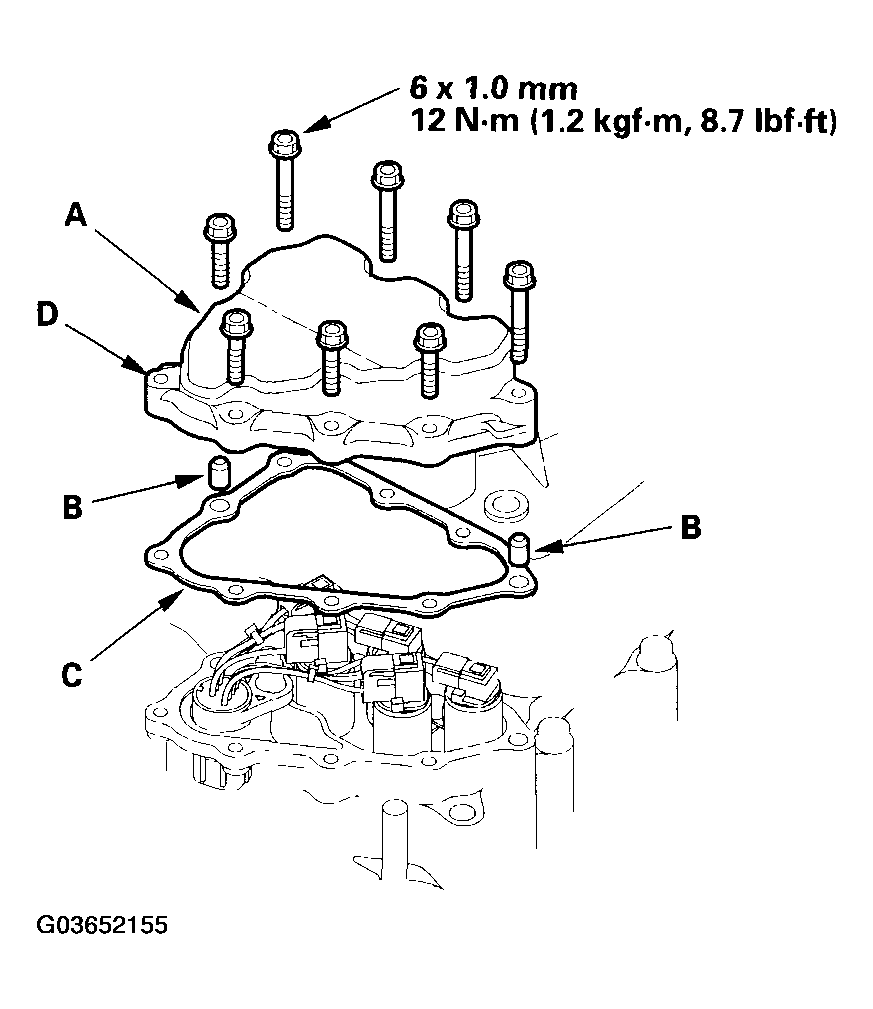

  22. Install the shift solenoid valve cover (A) with the two dowel pins (B) and the new gasket (C), and tighten the bolts (eight). Install the one bolt with the bracket for the ATF cooler line in the bolt hole (D) in End Cover Installation (see step  34 ).
    Fig 12: Installing Shift Solenoid Valve Cover And Torque Specifications
    G03652155Courtesy of AMERICAN HONDA MOTOR CO., INC.
