Door Key Cylinder Switch Test
- Remove the door panel (see
DOOR PANEL REMOVAL/INSTALLATION
).

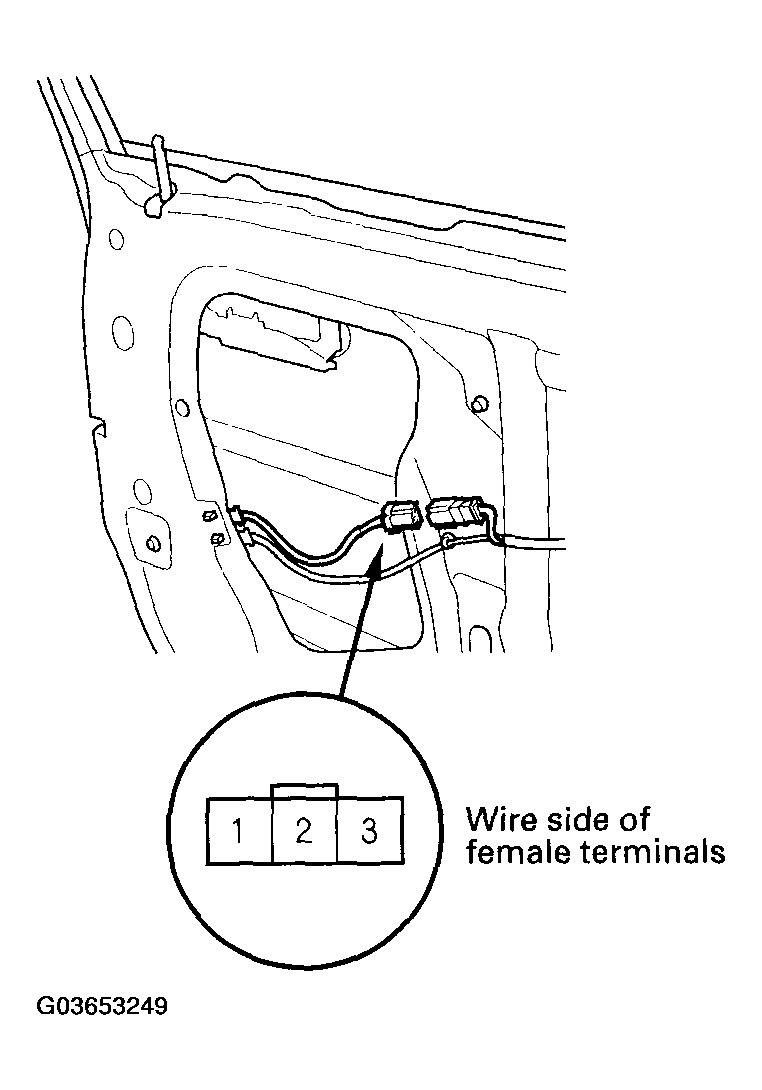

- Disconnect the 3P connector from the key cylinder switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the terminals.
- There should be continuity between the No. 2 and No. 3 terminals when the door key cylinder switch is in the LOCK position.
- There should be continuity between the No. 1 and No. 2 terminals when the door key cylinder switch is in the UNLOCK position.
- There should be no continuity between No. 1, No. 2, and No. 3 terminals when the door key cylinder switch is in the neutral position.
- If the continuity is not as specified, replace the switch.
