Security Hatch Lock Knob Switch Test
- Open the hatch, and remove the hatch lower trim (see
TRIM REMOVAL/INSTALLATION - HATCH AREA
).

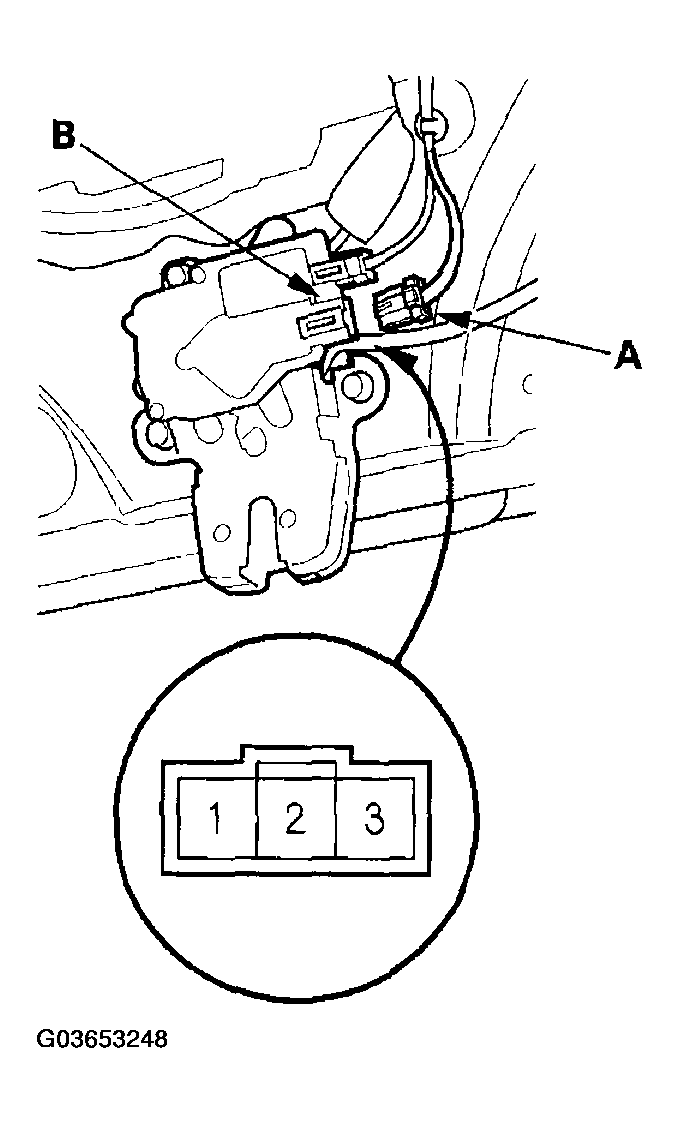

- Disconnect the 3P connector (A) from the security hatch lock knob switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Use the driver's door lock switch to unlock and lock the hatch, then check for continuity between the No. 2 and No. 3 terminals.
- There should be continuity when the hatch is unlocked.
- There should be no continuity when the hatch is locked.
- If the continuity check is not as specified, replace the switch.
